CRANKCASE COVER

VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

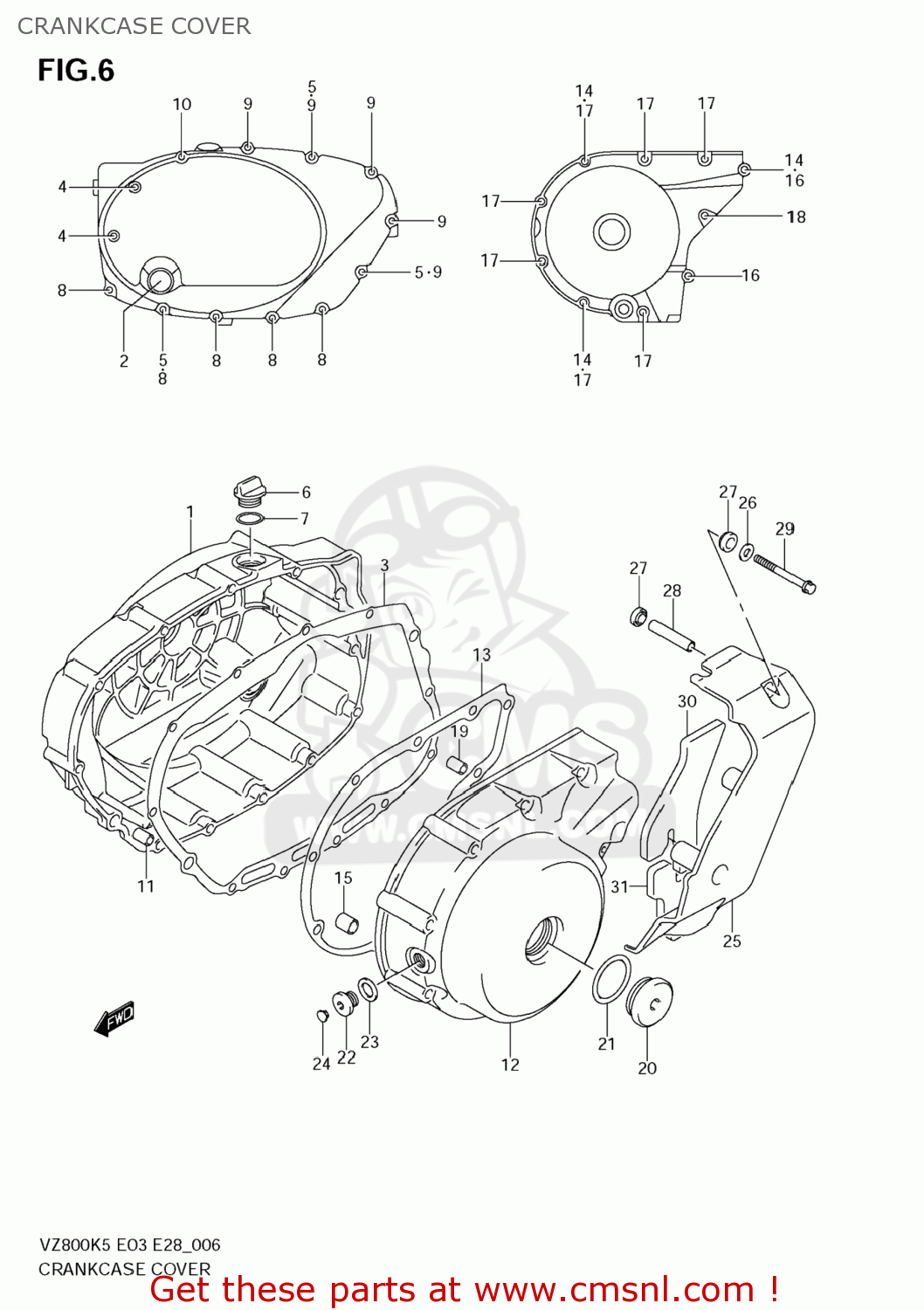

Crankcase cover diagram VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

CRANKCASE COVER VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
CRANKCASE COVER VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
CRANKCASE COVER VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
1134039G00
ref: 1
COVER,CLUTCH
1134039G00
€ 339.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148241F00
ref: 3
GASKET,CLUTCH COVER (NAS)
1148241F00
€ 15.50
4
0910306270
ref: 4
BOLT(6X105)
€ 2.50
5
0916806023
ref: 5
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
6
1197125D00
ref: 6
PLUG,ENGINE OIL FILLER
1197125D00
€ 5.50
7
0928017003
ref: 7
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
8
0910306213
ref: 8
BOLT(6X30)
0910306213
€ 2.50
9
0910306238
ref: 9
BOLT(6X50)
0910306238
€ 2.50
10
0910306226
ref: 10
BOLT(6X85)
0910306226
€ 2.50
11
0421109189
ref: 11
PIN
0421109189
€ 2.00
12
1135139G00
ref: 12
11351-39G01
COVER,GENERATO
€ 296.50
13
1148341F00
ref: 13
GASKET,GENERATOR COVER (NAS)
1148341F00
€ 11.50
14
0916806023
ref: 14
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
15
0920611007
ref: 15
PIN(8.4X11X20)
0920611007
€ 1.50
16
0910306215
ref: 16
BOLT(6X40)
0910306215
€ 2.00
17
0910306216
ref: 17
BOLT(6X55)
0910306216
€ 2.50
18
0910306226
ref: 18
BOLT(6X85)
0910306226
€ 2.50
19
0421109189
ref: 19
PIN
0421109189
€ 2.00
20
0925936008
ref: 20
Chrome Crankshaft Plug
0925936008
€ 8.50
21
0928033004
ref: 21
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
22
0924814005
ref: 22
PLUG,14X12
0924814005
€ 5.00
23
0916814002
ref: 23
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
24
0925008012
ref: 24
CAP(OD:12)
0925008012
€ 2.00
25
1136139G00
ref: 25
COVER,SECONDARY DRIVE UNIT
1136139G00
€ 136.00
26
0916006125
ref: 26
WASHER(6.5X14X1.6)
0916006125
€ 2.00
27
0916109005
ref: 27
WASHER(8.7X16X5)
0916109005
€ 2.50
28
0918006280
ref: 28
SPACER(6.5X9X41.3)
0918006280
€ 4.00
29
0910306216
ref: 29
BOLT(6X55)
0910306216
€ 2.50
30
1136239G00
ref: 30
CUSHION,SEC DR UNIT COVER NO.1
1136239G00
€ 9.00
31
1136339G00
ref: 31
CUSHION,SEC DR UNIT COVER NO.2
€ 7.00
