FRONT DAMPER

VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

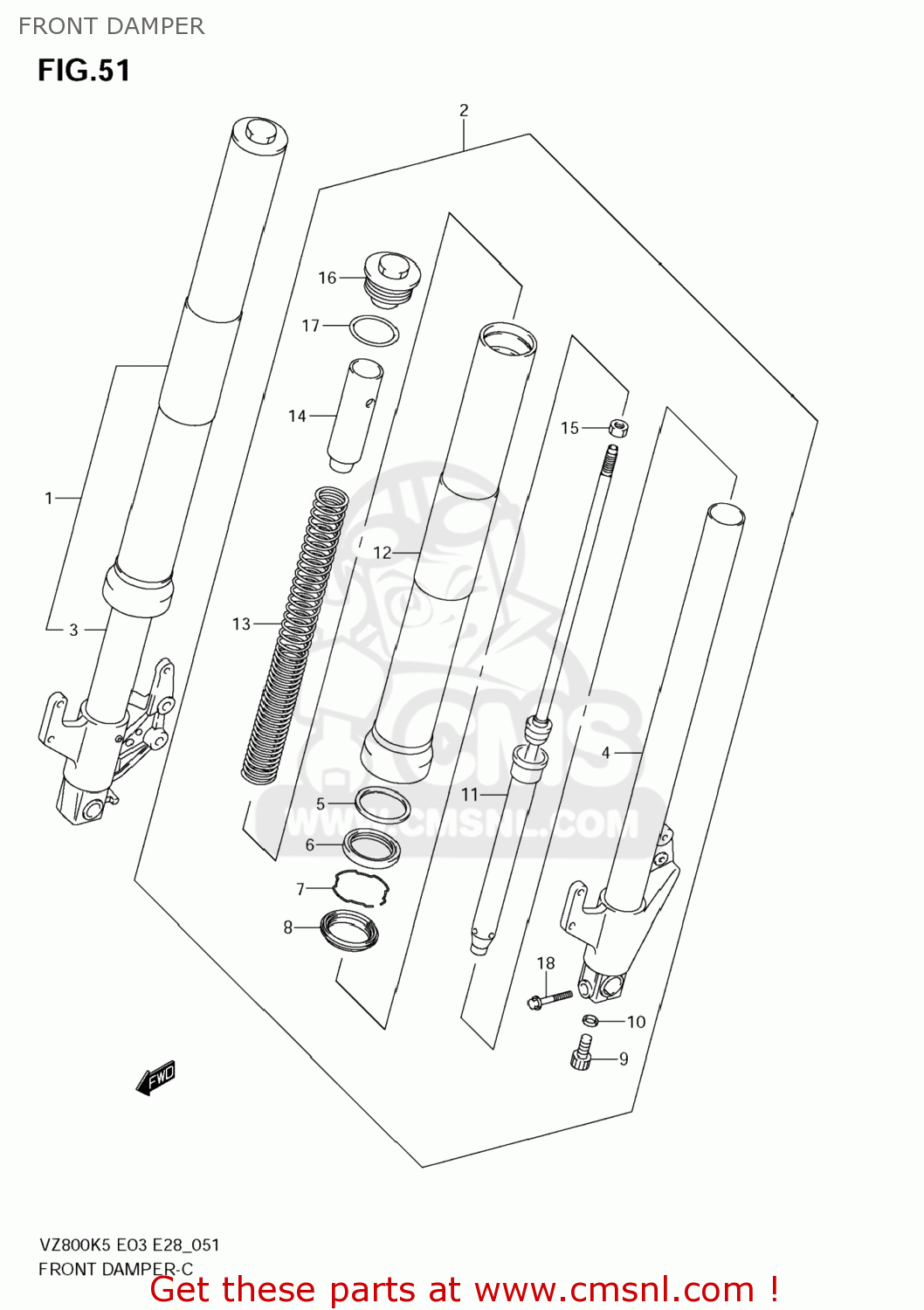

Front damper diagram VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

FRONT DAMPER VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

FRONT DAMPER VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

5110339G00
ref: 1

DAMPER ASSY,FR FORK,R

€ 865.50

2

5110439G00
ref: 2

DAMPER ASSY,FR FORK,L

€ 852.00

3

5111039G00
ref: 3

TUBE,INNER,R

€ 638.50

4

5112039G00
ref: 4

TUBE,INNER,L

€ 671.00

5

5115805A00
ref: 5

WASHER,FORK OIL SEAL

€ 5.00

6

5115310G50
ref: 6

SEAL,OIL

€ 13.50

7

5115649440
ref: 7

RING,OIL SEAL STOPPER

€ 5.50

8

5117314F00
ref: 8

SEAL,DUST

€ 18.50

9

5114740300
ref: 9

BOLT,CYLINDER

€ 5.50

10

5114840300
ref: 10

GASKET,CYLINDER (NAS)

€ 2.50

11

5114639G00
ref: 11

CYLINDER

€ 272.00

12

5113039G00
ref: 12

TUBE,OUTER

€ 647.00

13

5117139G00
ref: 13

SPRING,FR

€ 81.00

14

5117640F30
ref: 14

SPACER,SPRING

€ 12.50

15

5135213A60
ref: 15

NUT,ROD

€ 1.50

16

5135139G00
ref: 16

CAP

€ 103.50

17

6227814100
ref: 17

O RING

€ 3.50

18

5116610G00
ref: 18

BOLT

€ 3.50
