WATER PUMP

VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

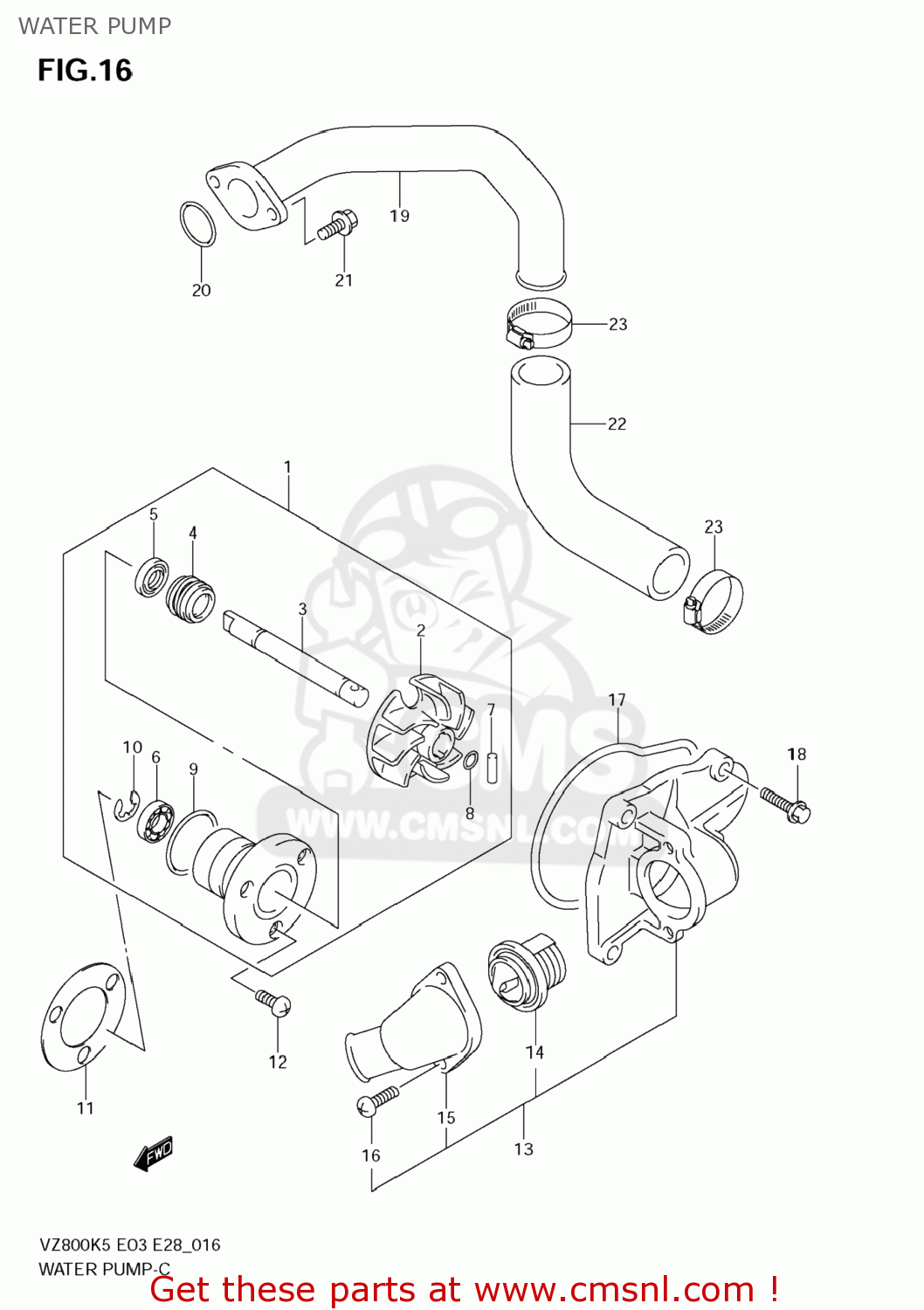

Water pump diagram VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)

WATER PUMP VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
WATER PUMP VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
WATER PUMP VZ800 BOULEVARD M50 2007 (K7) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
1740038A10
ref: 1
PUMP ASSY,WATER
1740038A10
€ 133.50
2
1749138A00
ref: 2
IMPELLER
1749138A00
€ 12.50
3
1751138A00
ref: 3
SHAFT
1751138A00
€ 30.50
4
1747002F10
ref: 4
SEAL,MECHANICAL
1747002F10
€ 21.50
5
0928310004
ref: 5
SEAL,OIL(10X21X5)
0928310004
€ 4.50
6
0926210004
ref: 6
BEARING(10X22X6)
0926210004
€ 20.50
7
1751638A00
ref: 7
PIN
1751638A00
€ 4.00
8
1751538A00
ref: 8
O RING
1751538A00
€ 1.50
9
1741738A00
ref: 9
O RING
1741738A00
€ 2.50
10
0833211086
ref: 10
08332-1108A
E RING
0833211086
€ 2.00
11
1743138A10
ref: 11
GASKET,WATER PUMP (NAS)
1743138A10
€ 5.00
12
021120612B
ref: 12
SCREW
021120612B
€ 1.50
13-1
1741041F10
ref: 13-1
CAP ASSY,WATER PUMP
€ 96.50
13-2
1741041F30
ref: 13-2
CAP ASSY,WATER PUMP
1741041F30
€ 100.50
14-1
1767033410
ref: 14-1
THERMOSTAT,WATER
1767033410
€ 37.00
14-2
1767033400
ref: 14-2
THERMOSTAT,WATER
1767033400
€ 29.50
15
1741241F00
ref: 15
CONNECTOR
€ 30.00
16
021120616A
ref: 16
SCREW
021120616A
€ 1.50
17
1743538A00
ref: 17
O RING,WATER PUMP CAP
1743538A00
€ 5.00
18
015470620B
ref: 18
BOLT
015470620B
€ 2.50
19
1789041F00
ref: 19
PIPE,CYLINDER INLET
1789041F00
€ 29.00
20
0928024007
ref: 20
O RING(D:2.3,ID:24.4)
0928024007
€ 2.00
21
015470616B
ref: 21
BOLT
015470616B
€ 2.50
22
1785838820
ref: 22
HOSE,WATER PUMP OUTLET
1785838820
€ 16.50
23
0940232512
ref: 23
CLAMP
0940232512
€ 9.00
