FRONT WHEEL

VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)

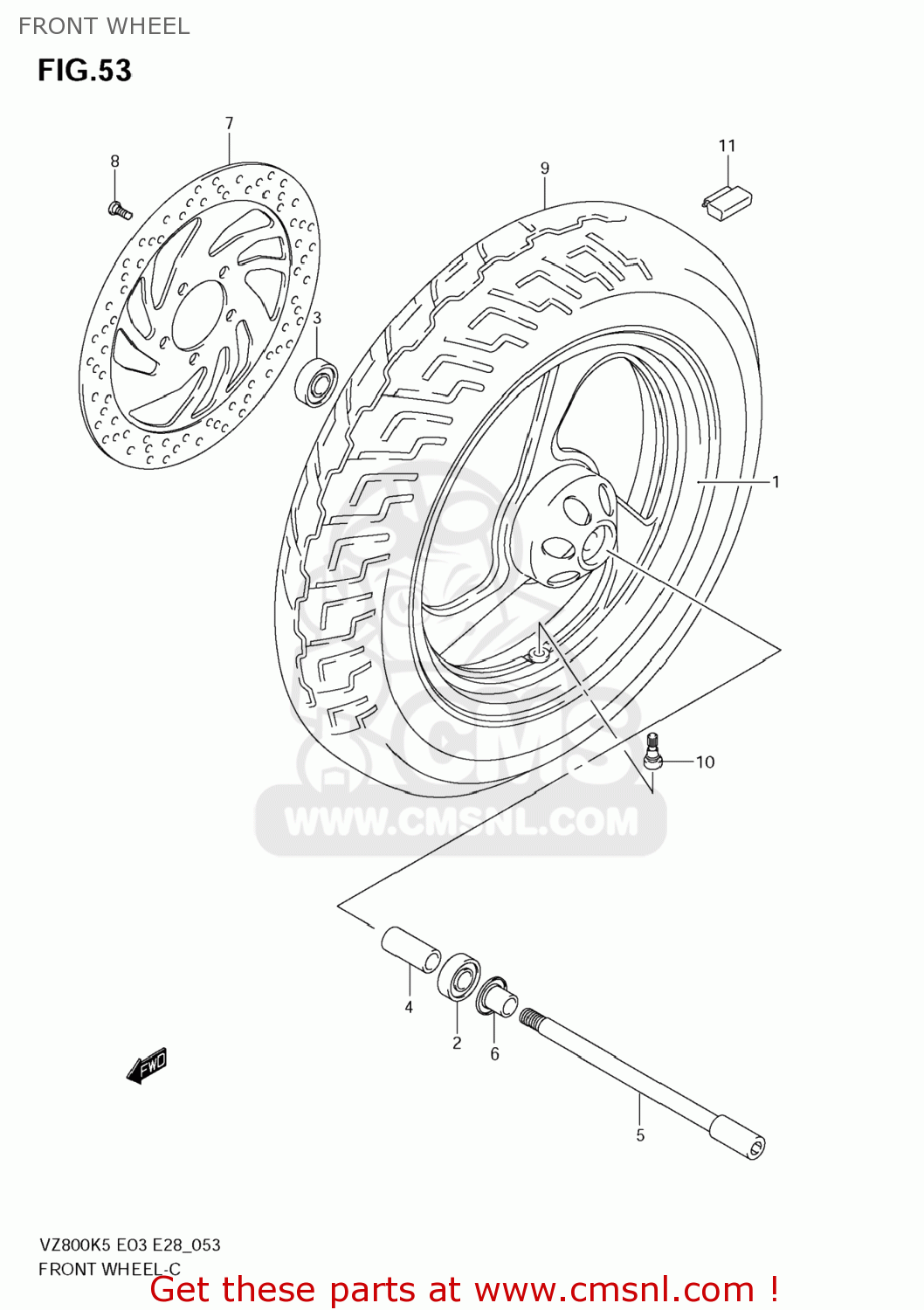

Front wheel diagram VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

5411139G00019
ref: 1

WHEEL,FR(16M/CXMT3.00)

€ 949.00

0813362037
ref: 2

BEARING

€ 24.50

0814362037
ref: 3

BEARING

€ 18.50

0918017092
ref: 4

SPACER(17.5X25X113)

€ 15.50

5471141F00
ref: 5

AXLE,FR

€ 82.00

5474032C00
ref: 6

SPACER,FR AXLE,R

€ 12.00

5921139G00
ref: 7

DISC,FR BRAKE

€ 181.50

0910608160
ref: 8

BOLT(8X21)

€ 3.50

5511041F10
ref: 9

TIRE,FR(130/90-16M/C 67H)

€ 174.50

5511041F10
ref: 9

TIRE,FR(130/90-16M/C 67H)

€ 174.50

4313024A00
ref: 10

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

11-1

5541139G00
ref: 11-1

BALANCER,WHEEL(10G)

€ 5.50

11-2

5541239G00
ref: 11-2

BALANCER,WHEEL(20G)

€ 5.50

11-3

5541339G00
ref: 11-3

BALANCER,WHEEL(30G)

€ 6.00
