STARTING MOTOR

VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)

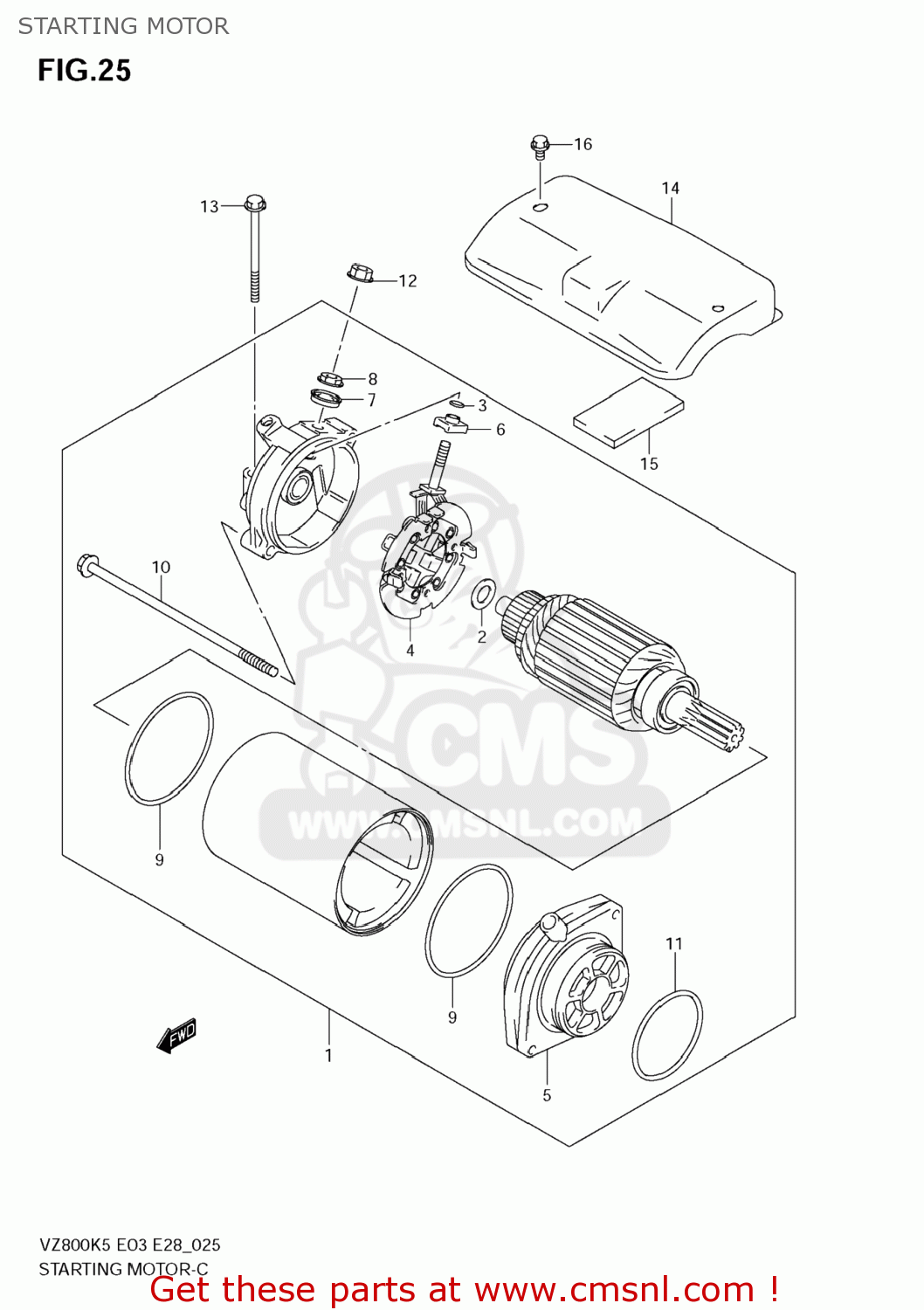

Starting motor diagram VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)

STARTING MOTOR VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)
STARTING MOTOR VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)
STARTING MOTOR VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
3110045C01
ref: 1
MOTOR ASSY,STARTING
€ 472.00
2
3117043400
ref: 2
SHIM SET,STARTING MOTOR
3117043400
€ 3.50
3
3114338300
ref: 3
O RING
3114338300
€ 3.50
4
3113245C00
ref: 4
HOLDER SET,BRUSH
3113245C00
€ 46.00
5
3115038A00
ref: 5
BRACKET SET
3115038A00
€ 79.50
6
3117238300
ref: 6
BUSHING
3117238300
€ 4.00
7
3117388C00
ref: 7
BUSHING
3117388C00
€ 6.00
8
0831000067
ref: 8
NUT
0831000067
€ 2.50
9
3126444110
ref: 9
O RING
3126444110
€ 8.00
10
3128124B10
ref: 10
BOLT
3128124B10
€ 5.00
11
3115638A00
ref: 11
O RING
3115638A00
€ 8.00
12
083613506A
ref: 12
NUT
083613506A
€ 2.00
13
0910306261
ref: 13
BOLT(6X60)
0910306261
€ 2.50
14
3121041F00
ref: 14
COVER,STARTING MOTOR
€ 11.00
15
3121238A10
ref: 15
DAMPER,MOTOR COVER
3121238A10
€ 4.50
16
015470508B
ref: 16
BOLT
015470508B
€ 2.50
