MAGNETO

VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)

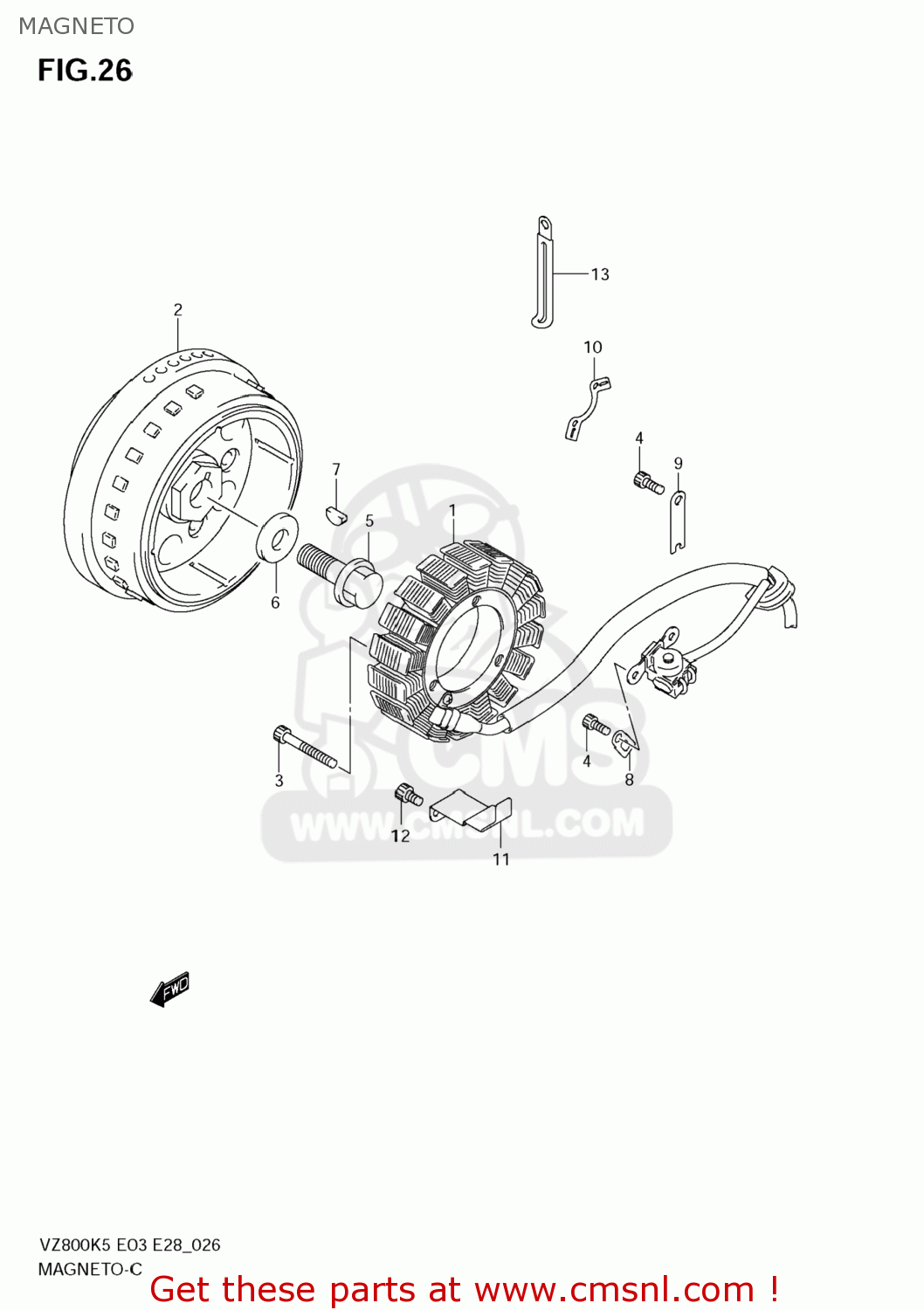

Magneto diagram VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)

MAGNETO VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)
MAGNETO VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)
MAGNETO VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
3210141F10
ref: 1
STARTER ASSY
€ 400.50
2
3210241F10
ref: 2
ROTOR ASSY
€ 413.00
3
071300640B
ref: 3
BOLT
071300640B
€ 3.50
4
071300510B
ref: 4
BOLT
071300510B
€ 2.00
5
0910314001
ref: 5
BOLT(14X43)
0910314001
€ 7.00
6
0916014021
ref: 6
WASHER(14X29X4)
0916014021
€ 5.00
7
0942005007
ref: 7
KEY
0942005007
€ 3.00
8
3149745000
ref: 8
CLAMP,GENERATOR LEAD WIRE
3149745000
€ 1.50
9
3237138A10
ref: 9
CLAMP NO.1,MAGNETO READ WIRE
€ 1.50
10
3237141F00
ref: 10
CLAMP,MAGNETO LEAD
€ 2.00
11
3237145C00
ref: 11
CLAMP,MAGNETO LEAD WIRE
3237145C00
€ 3.00
12
071300610B
ref: 12
BOLT
071300610B
€ 2.50
13
0940408419
ref: 13
CLAMP(L:80)
€ 2.00
