TURNSIGNAL FRONT & REAR LAMP (VZ800Z K9)

VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)

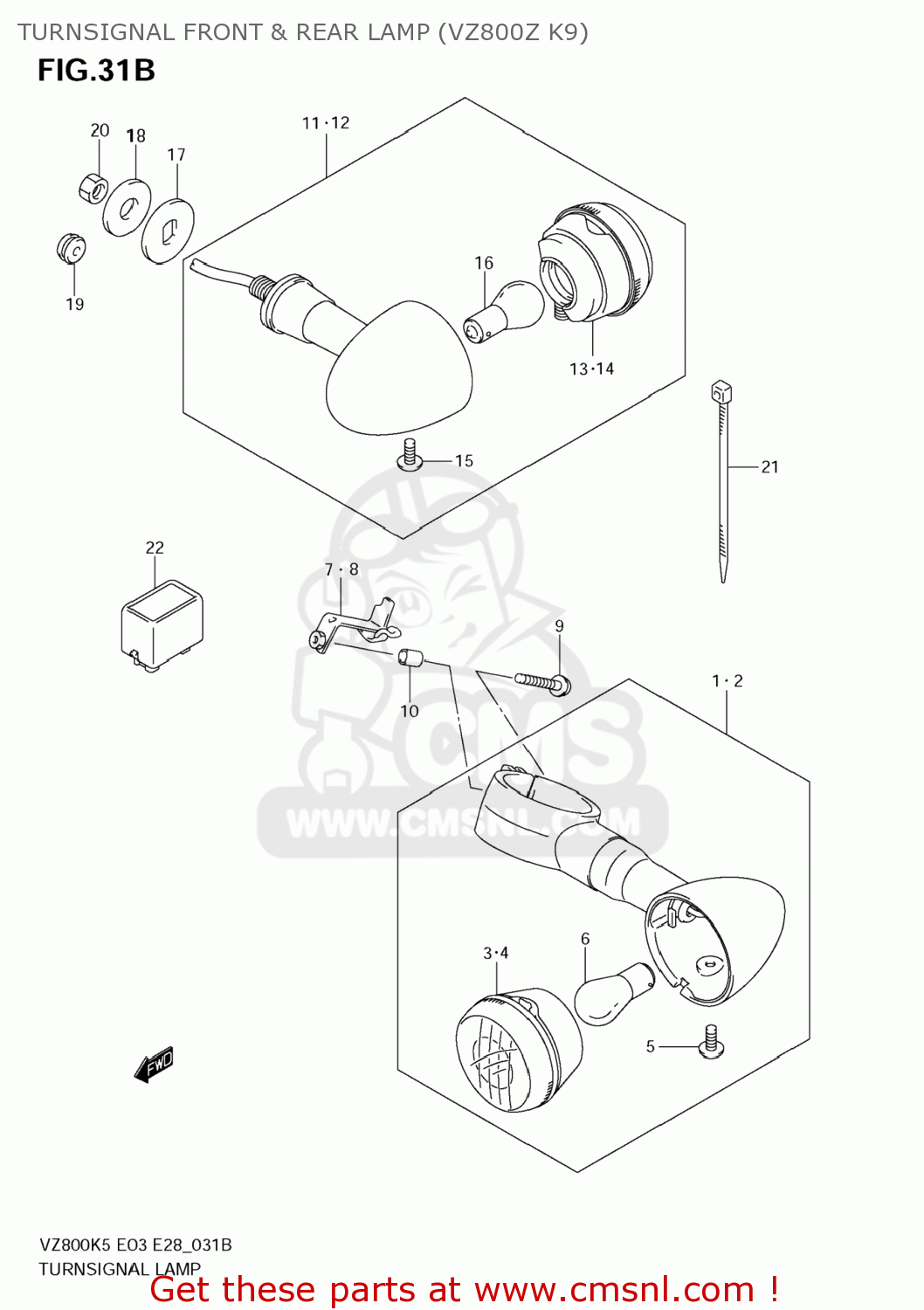

Turnsignal front & rear lamp (vz800z k9) diagram VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)

TURNSIGNAL FRONT & REAR LAMP (VZ800Z K9) VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)
TURNSIGNAL FRONT & REAR LAMP (VZ800Z K9) VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)
TURNSIGNAL FRONT & REAR LAMP (VZ800Z K9) VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
3560148EB0
ref: 1
LAMP ASSY,FR TURN SIGNAL,R
€ 0.00
2
3560248EB0
ref: 2
LAMP ASSY,FR TURN SIGNAL,L
€ 0.00
3
3561048EB0
ref: 3
LENS
€ 27.00
4
3563048EB0
ref: 4
LENS
€ 27.00
5
3562338AA0
ref: 5
SCREW(4X10)
3562338AA0
€ 4.00
6
0947112224
ref: 6
BULB(12V23/8W)
0947112224
€ 21.00
7
3567139G00
ref: 7
BRACKET,FR TURNSIGNAL,R
3567139G00
€ 7.00
8
3568139G00
ref: 8
BRACKET,FR TURNSIGNAL,L
€ 7.00
9
0913606082
ref: 9
SCREW(6X25)
0913606082
€ 3.00
10
0918006121
ref: 10
SPACER(6.4X9.2X12)
0918006121
€ 2.50
11
3560338AF0
ref: 11
LAMP ASSY,RR TURNSIGNAL,R
3560338AF0
€ 74.00
12
3560438AF0
ref: 12
LAMP ASSY,RR TURNSIGNAL,L
3560438AF0
€ 75.50
13
3563038AF0
ref: 13
LENS
3563038AF0
€ 24.50
14
3561038AF0
ref: 14
LENS
3561038AF0
€ 24.50
15
3562338AA0
ref: 15
SCREW(4X10)
3562338AA0
€ 4.00
16
0947112186
ref: 16
BULB(12V21W,AMBER)
0947112186
€ 2.50
17
3569517C00
ref: 17
SPACER,RR TURNSIGNAL
3569517C00
€ 3.00
18
0916010501
ref: 18
WASHER(10.5X30X2.3)
0916010501
€ 2.50
19
0930805015
ref: 19
GROMMET
0930805015
€ 4.50
20
083100010B
ref: 20
NUT
083100010B
€ 2.00
21
0940714407
ref: 21
CLAMP(L:145)
0940714407
€ 4.00
22
3861003F00
ref: 22
RELAY ASSY,TURNSIGNAL LAMP
3861003F00
€ 88.50
