STARTER CLUTCH

VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)

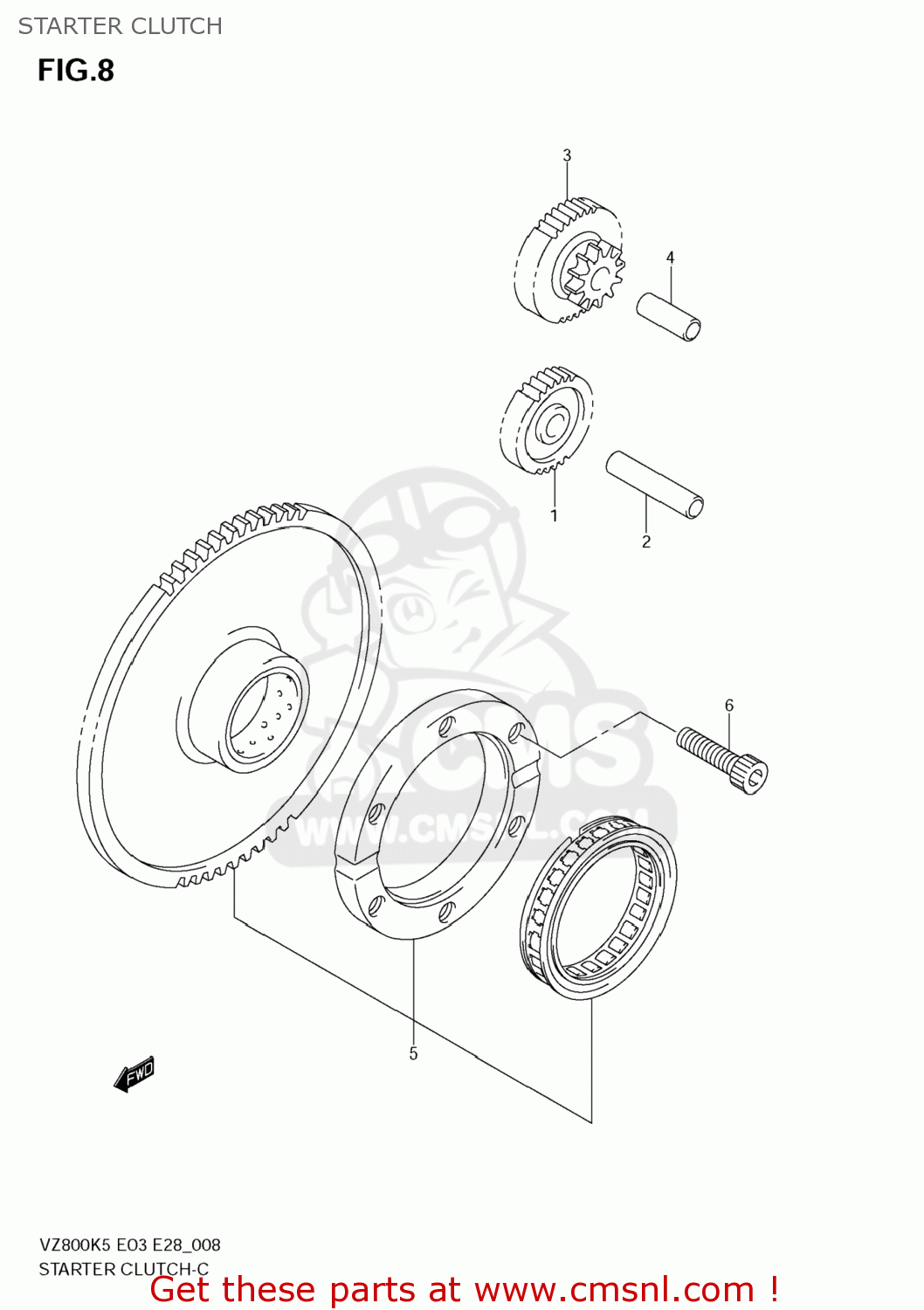

Starter clutch diagram VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)

STARTER CLUTCH VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)
STARTER CLUTCH VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)
STARTER CLUTCH VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
1261138A01
ref: 1
GEAR,STARTER IDLE NO.1
€ 57.50
2
0920210008
ref: 2
PIN,10X43
0920210008
€ 9.00
3
1261138A11
ref: 3
GEAR,STARTER IDLE NO.2
1261138A11
€ 39.50
4
0920210006
ref: 4
PIN
0920210006
€ 6.50
5
1260041851
ref: 5
CLUTCH SET,STARTER
1260041851
€ 212.50
6
0910608105
ref: 6
BOLT(8X30)
0910608105
€ 3.00
