LUGGAGE BOX

VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)

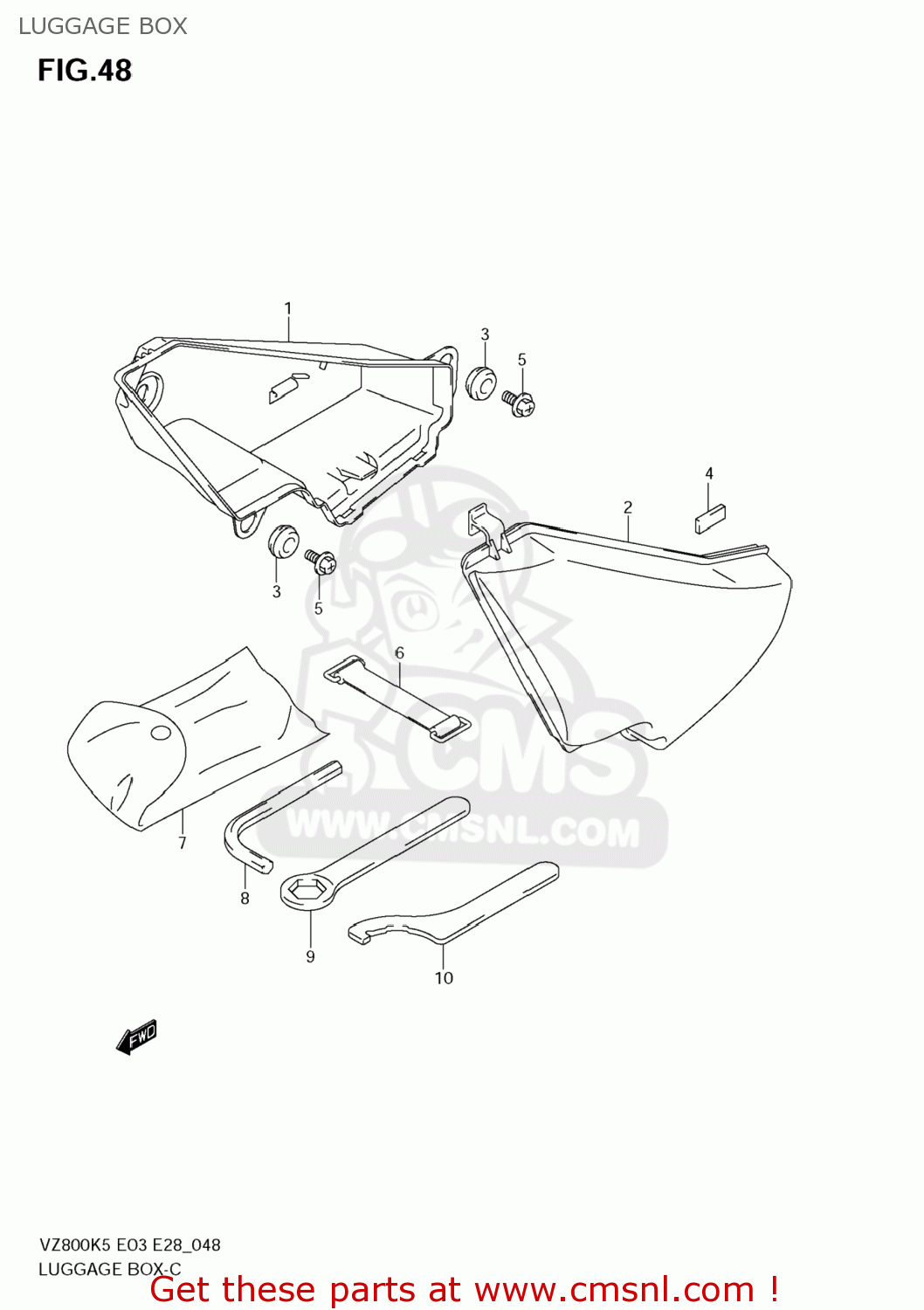

Luggage box diagram VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

9221141F00
ref: 1

BODY,LUGGAGE BOX

€ 38.50

9221241F01
ref: 2

LID,LUGGAGE BOX

€ 26.00

3-1

9367680020
ref: 3-1

PAD,BALANCER UPPER,R

€ 4.50

3-2

3365235F00
ref: 3-2

PROTECTOR,BATTERY

€ 3.00

9221341F00
ref: 4

CUSHION,LUGGAGE BOX NO.2

€ 5.00

6316143E00
ref: 5

BOLT

€ 3.00

0928061002
ref: 6

O RING(D:3.5,ID:61)

€ 5.00

7-1

0980021012
ref: 7-1

TOOL ASSY

€ 40.00

7-2

0980021055
ref: 7-2

TOOL ASSY

€ 6.00

8-1

0981600050
ref: 8-1

SPANNER,HEXAGON(6)

€ 5.50

8-2

0981600103
ref: 8-2

SPANNER,HEXAGON(4)

€ 3.00

8-3

0981600139
ref: 8-3

HEXAGON SPANNER,12

€ 5.00

8-4

0981600051
ref: 8-4

HEXAGON SPANNER,8

€ 5.50

0981700035
ref: 9

RING SPANNER(22)

€ 6.50

0982200003
ref: 10

CLAMP

€ 6.00
