Buy Suzuki VZ Parts Online


REAR CYLINDER HEAD (MODEL K9)

VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)

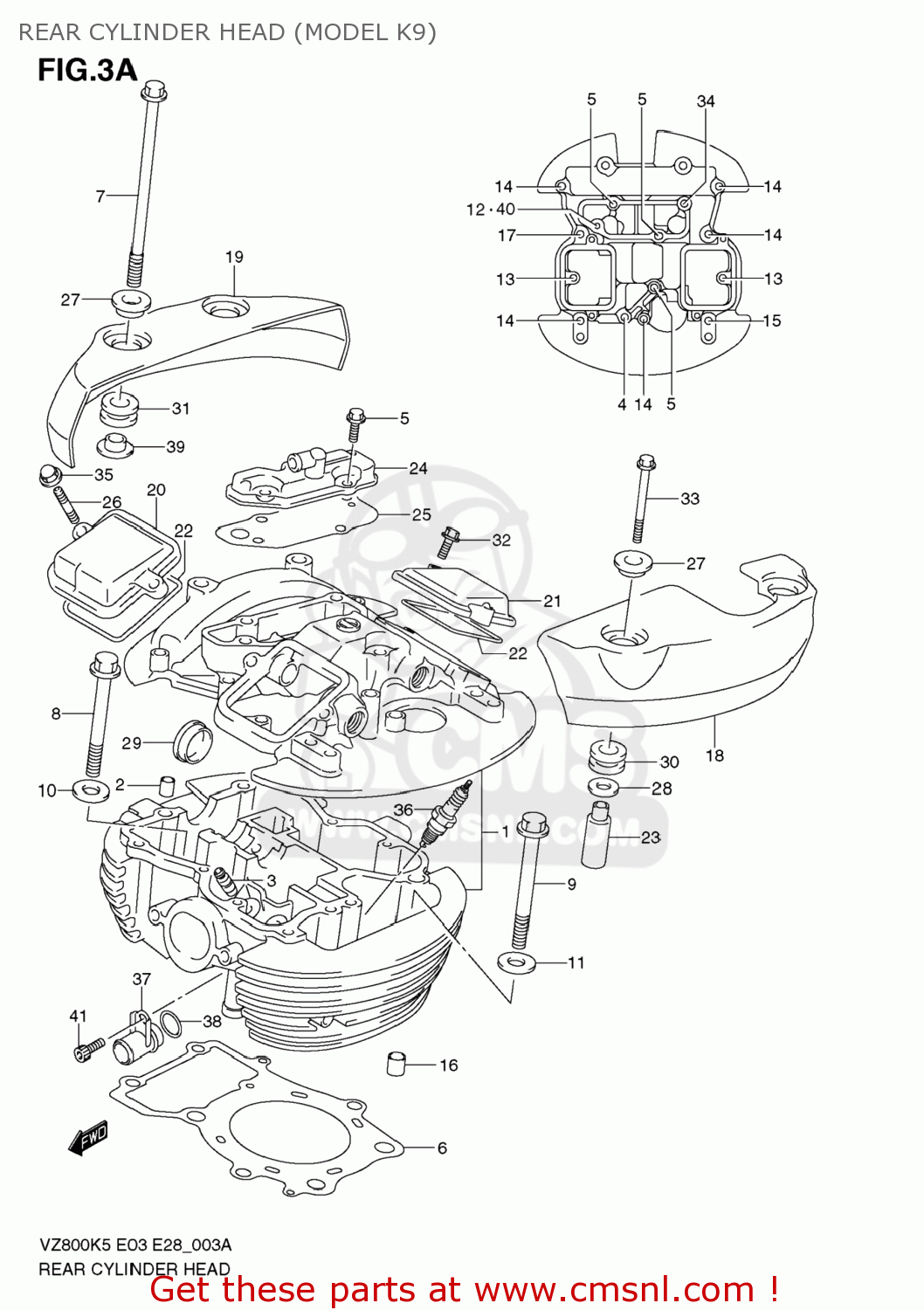

Rear cylinder head (model k9) diagram VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)

REAR CYLINDER HEAD (MODEL K9) VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)
REAR CYLINDER HEAD (MODEL K9) VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)
REAR CYLINDER HEAD (MODEL K9) VZ800Z BOULEVARD M50 2005 (K5) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1-1
1110339G10
ref: 1-1
HEAD ASSY,CYLINDER RR
€ 720.00
1-2
1110339G00
ref: 1-2
HEAD ASSY,CYLINDER RR
€ 1,354.00
2
0920611004
ref: 2
PIN(8.4X11X14)
0920611004
€ 6.00
3
1111541F70
ref: 3
GUIDE,VALVE(OS:0.3)
1111541F70
€ 18.50
4
0910306304
ref: 4
BOLT(6X50)
0910306304
€ 1.50
5
0910306305
ref: 5
BOLT(6X55)
€ 1.50
6
1114241F00
ref: 6
GASKET,CYLINDER HEAD RR (NAS)
1114241F00
€ 27.50
7
0910308370
ref: 7
BOLT(8X250)
0910308370
€ 11.00
8
0910310133
ref: 8
BOLT(10X155)
0910310133
€ 7.50
9
0910310134
ref: 9
BOLT(10X165)
0910310134
€ 7.50
10
0916008130
ref: 10
WASHER(8.5X24X1.6)
0916008130
€ 2.00
11
0916010039
ref: 11
WASHER(10.5X22X2.3)
0916010039
€ 2.50
12
015470655A
ref: 12
BOLT
015470655A
€ 2.50
13
015500625A
ref: 13
BOLT
015500625A
€ 2.50
14
015500630A
ref: 14
BOLT
015500630A
€ 2.50
15
015500640A
ref: 15
BOLT
015500640A
€ 2.50
16
0421113189
ref: 16
PIN
0421113189
€ 2.50
17
071200630B
ref: 17
BOLT
071200630B
€ 3.00
18
1117341FA0
ref: 18
CAP,CYLINDER HEAD COVER RR,L
€ 99.50
19
1117441F00
ref: 19
CAP,CYLINDER HEAD COVER RR
1117441F00
€ 103.00
20
1117538A11
ref: 20
CAP,INSPECTION INTAKE
1117538A11
€ 14.50
21
1117638A11
ref: 21
CAP,INSPECTION EXHAUST
1117638A11
€ 14.50
22
1117738A00
ref: 22
GASKET,INSPECTION CAP (NAS)
1117738A00
€ 5.00
23
1117910F10
ref: 23
SPACER,CYL HEAD COVER CAP NO.2
1117910F10
€ 8.00
24
1118641FB0
ref: 24
COVER,BREATHER
€ 16.00
25
1118741F20
ref: 25
GASKET,BREATHER COVER (NAS)
1118741F20
€ 4.50
26
0910806102
ref: 26
BOLT,STUD
€ 3.00
27
0916006084
ref: 27
WASHER(6.5X18X1.6)
0916006084
€ 2.00
28
0916009016
ref: 28
WASHER(9.5X20X1)
0916009016
€ 2.00
29
0924130004
ref: 29
PLUG(OD:30)
0924130004
€ 6.50
30
0932009016
ref: 30
CUSHION
0932009016
€ 2.50
31
0932013015
ref: 31
CUSHION
0932013015
€ 3.00
32
015470620A
ref: 32
BOLT
015470620A
€ 2.50
33
0154706557
ref: 33
BOLT
0154706557
€ 2.50
34
015500620A
ref: 34
BOLT
015500620A
€ 2.50
35
0915906093
ref: 35
NUT
€ 2.00
36-1
0948200354
ref: 36-1
PLUG,SPARK(DPR7EA-9)
0948200354
€ 4.00
36-10
0948200399
ref: 36-10
PLUG,SPARK(DR8EA)
0948200399
€ 3.50
36-11
0948200400
ref: 36-11
PLUG,SPARK(DR9EA)
0948200400
€ 6.50
36-2
0948200398
ref: 36-2
PLUG,SPARK(DR7EA)
0948200398
€ 5.50
36-3
0948200222
ref: 36-3
PLUG,SPARK(X22ESR-U)
€ 4.00
36-4
0948200330
ref: 36-4
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
36-5
0948200331
ref: 36-5
PLUG,SPARK(X27EPR-U9)
€ 4.00
36-6
0948200334
ref: 36-6
PLUG,SPARK(DPR8EA-9)
€ 4.00
36-7
0948200335
ref: 36-7
PLUG,SPARK(X24EPR-U9)
€ 4.00
36-8
0948200223
ref: 36-8
PLUG,SPARK(X24ESR-U)
€ 3.50
36-9
0948200224
ref: 36-9
PLUG,SPARK(X27ESR-U)
0948200224
€ 9.50
37
1789141F10
ref: 37
UNION,CYL HEAD JOINT
1789141F10
€ 11.50
38
0928016005
ref: 38
O RING(D:2.4,ID:15.8)
0928016005
€ 1.50
39
0930108007
ref: 39
BUSH
0930108007
€ 4.00
40
0916806023
ref: 40
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
41
071300612B
ref: 41
BOLT
071300612B
€ 3.00
