CRANK BALANCER

XF650U 1999 (X) (E22)

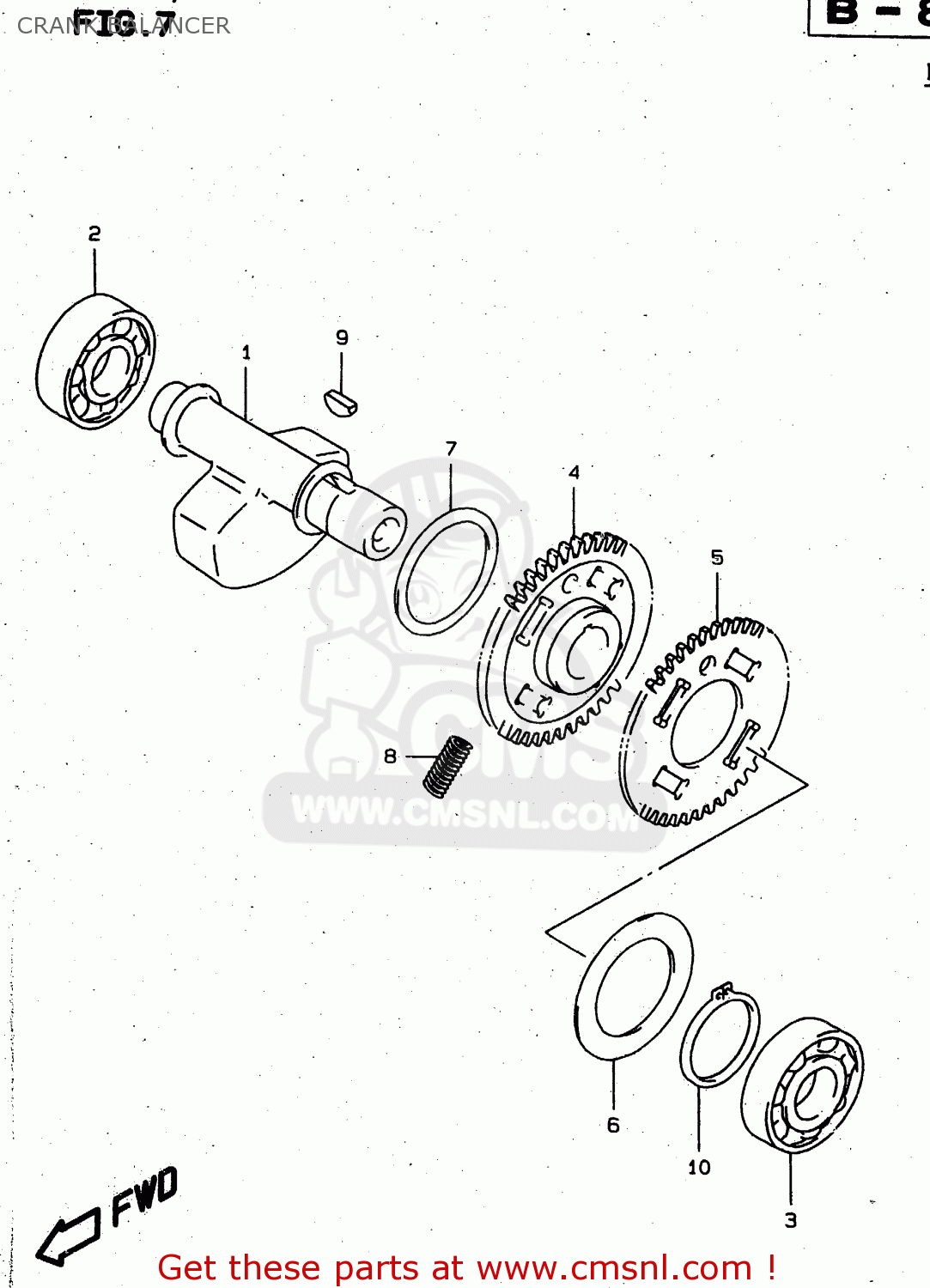

Crank balancer diagram XF650U 1999 (X) (E22)

CRANK BALANCER XF650U 1999 (X) (E22)

CRANK BALANCER XF650U 1999 (X) (E22)

prices are in EUR

ref

part #

description

quantity

1

1265132E00
ref: 1

BALANCER,CRANK

€ 110.00

2

0926222029
ref: 2

BEARING(22X56X16)

€ 45.50

3

0926220121
ref: 3

BEARING(20X47X14)

€ 28.00

4

1266604F00
ref: 4

GEAR,CRANK BALANCER DRIVE

€ 85.50

5

1266704F00
ref: 5

GEAR,CRANK BALANCER DRIVE

€ 46.50

6

0916438004
ref: 6

WASHER

€ 4.00

7

0821138582
ref: 7

WASHER

€ 5.00

8

0944006020
ref: 8

SPRING

€ 14.00

9

0942004008
ref: 9

KEY

€ 3.50

10

0833131383
ref: 10

CIRCLIP

€ 2.50
