STARTER CLUTCH

XF650U 1999 (X) (E22)

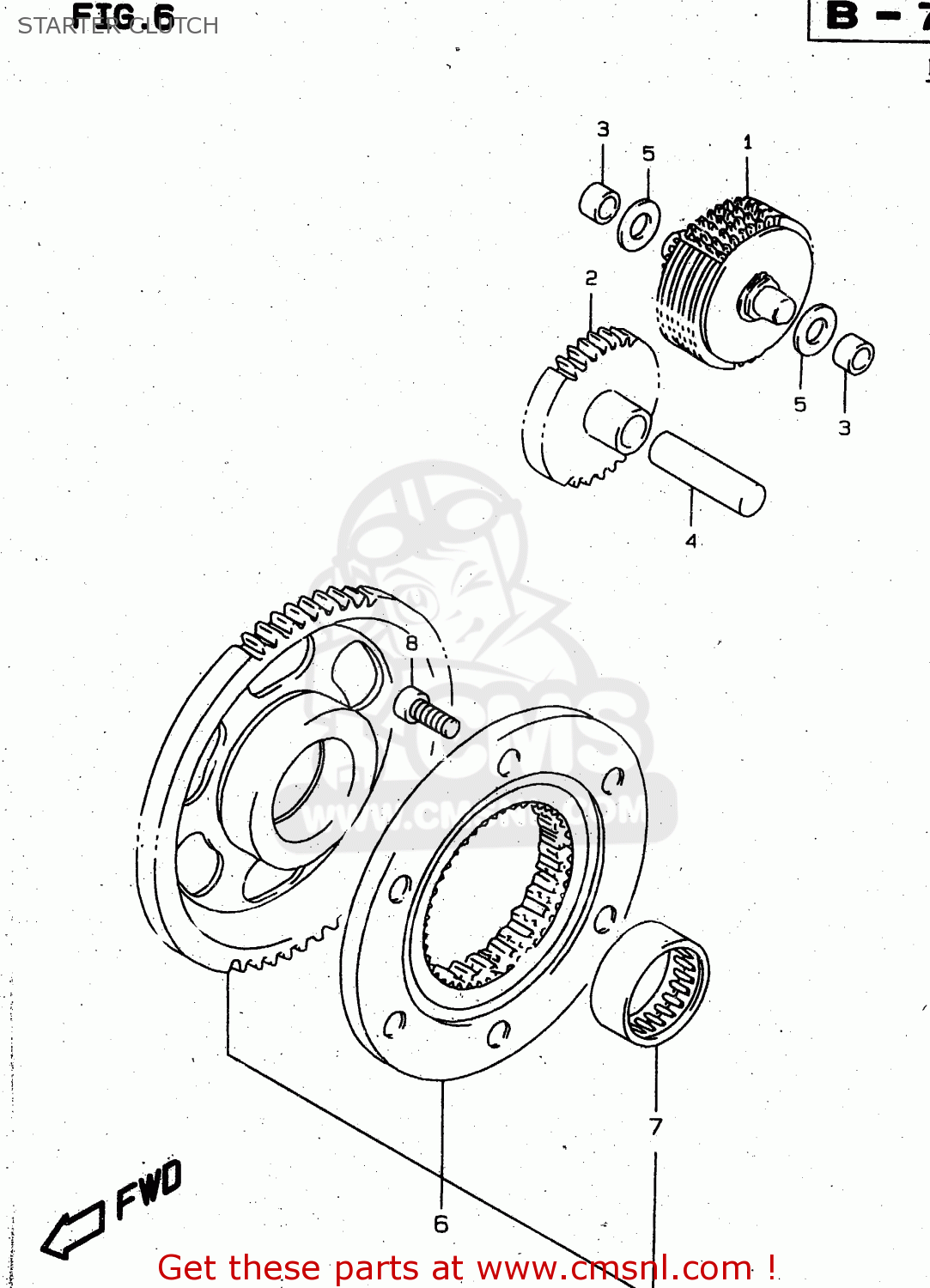

Starter clutch diagram XF650U 1999 (X) (E22)

STARTER CLUTCH XF650U 1999 (X) (E22)

STARTER CLUTCH XF650U 1999 (X) (E22)

prices are in EUR

ref

part #

description

quantity

1

1260012D00
ref: 1

LIMITER ASSEMBLY,STARTER IDLER GEAR

€ 122.50

2

1261212D01
ref: 2

GEAR,STARTER IDLE NO.2(NT:27)

€ 40.50

3

1261831D01
ref: 3

BUSH,LIMITER GEAR SHAFT

€ 17.50

4

0920212002
ref: 4

PIN

€ 7.50

5

0821110221
ref: 5

WASHER

€ 2.50

6

1260009860
ref: 6
<-12600-12810

CLUTCH SET,STARTER

€ 210.00

7

0926331009
ref: 7

BEARING(31X39X17.8)

€ 25.50

8

0713008203
ref: 8

BOLT

€ 3.00
