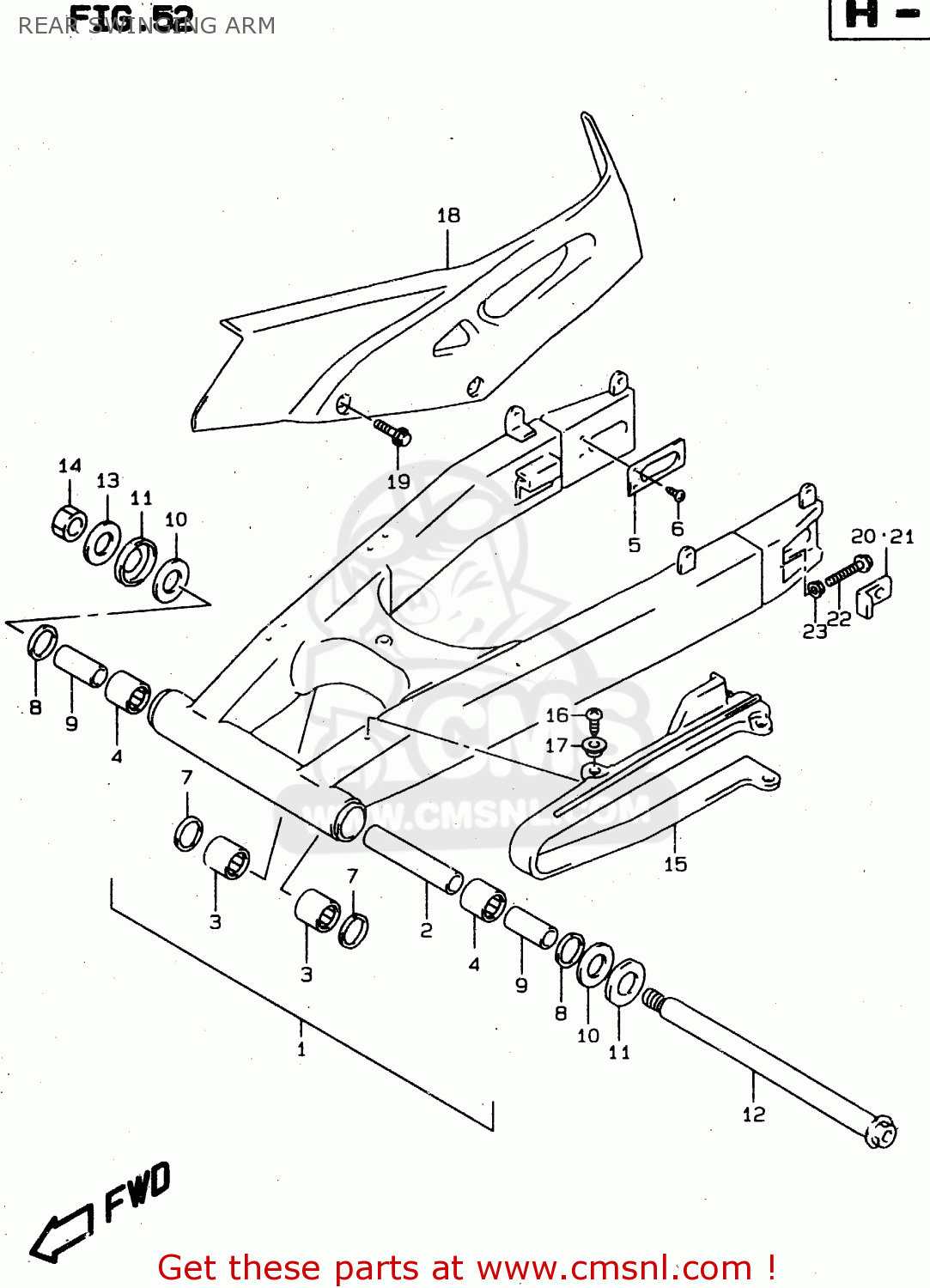

REAR SWINGING ARM

ref

part #

description

quantity

1

6100004F00
ref: 1

SWINGINGARM ASSY,RR

€ 1,164.00

2

6128232E00
ref: 2

SPACER,SWGARM PIVOT CTR

€ 11.00

3

0926320071
ref: 3

BEARING(20X27X23.5)

€ 21.50

4

0926322017
ref: 4

BEARING(22X29X30)

€ 18.50

5

6112417E10
ref: 5

PLATE,RR SWING ARM BRKT

€ 4.50

6

0214206103
ref: 6

SCREW 6X10

€ 2.00

7

0928320031
ref: 7

SEAL,OIL(20X27X5)

€ 5.00

8

0928522001
ref: 8

SEAL,OIL(22X29X4)

€ 5.00

9

6125114D00
ref: 9

SPACER,SWGARM PIVOT BRG

€ 11.00

10

0821117341
ref: 10

WASHER

€ 2.00

11

6126228C10
ref: 11

COVER,SWINGINGARM PIVOT

€ 4.50

12

6471108D00
ref: 12

AXLE,RR

€ 74.00

13

0832201163
ref: 13

WASHER, FIXED DRIVE FACE

€ 2.00

14

0915916007
ref: 14

NUT

€ 10.50

15

6127313E01
ref: 15

BUFFER,CHAIN TOUCH DEFENSE

€ 30.00

16

0214206123
ref: 16

SCREW 6X12

€ 2.00

17

0916906057
ref: 17

WASHER

€ 4.00

18

6131104F00
ref: 18

CASE,CHAIN

€ 33.50

19

6316304F00
ref: 19

BOLT,CHAIN CASE

€ 4.50

20

6144617E10
ref: 20
RH

WASHER,CHAIN ADJUSTER

€ 28.50

21

6144627C20
ref: 21
LH

WASHER,CHAIN ADJUSTER

€ 23.50

22

0910008287
ref: 22

BOLT(8X50)

€ 3.00

23

0831610083
ref: 23

NUT

€ 3.00
