MAGNETO

XF650U 1999 (X) (E22)

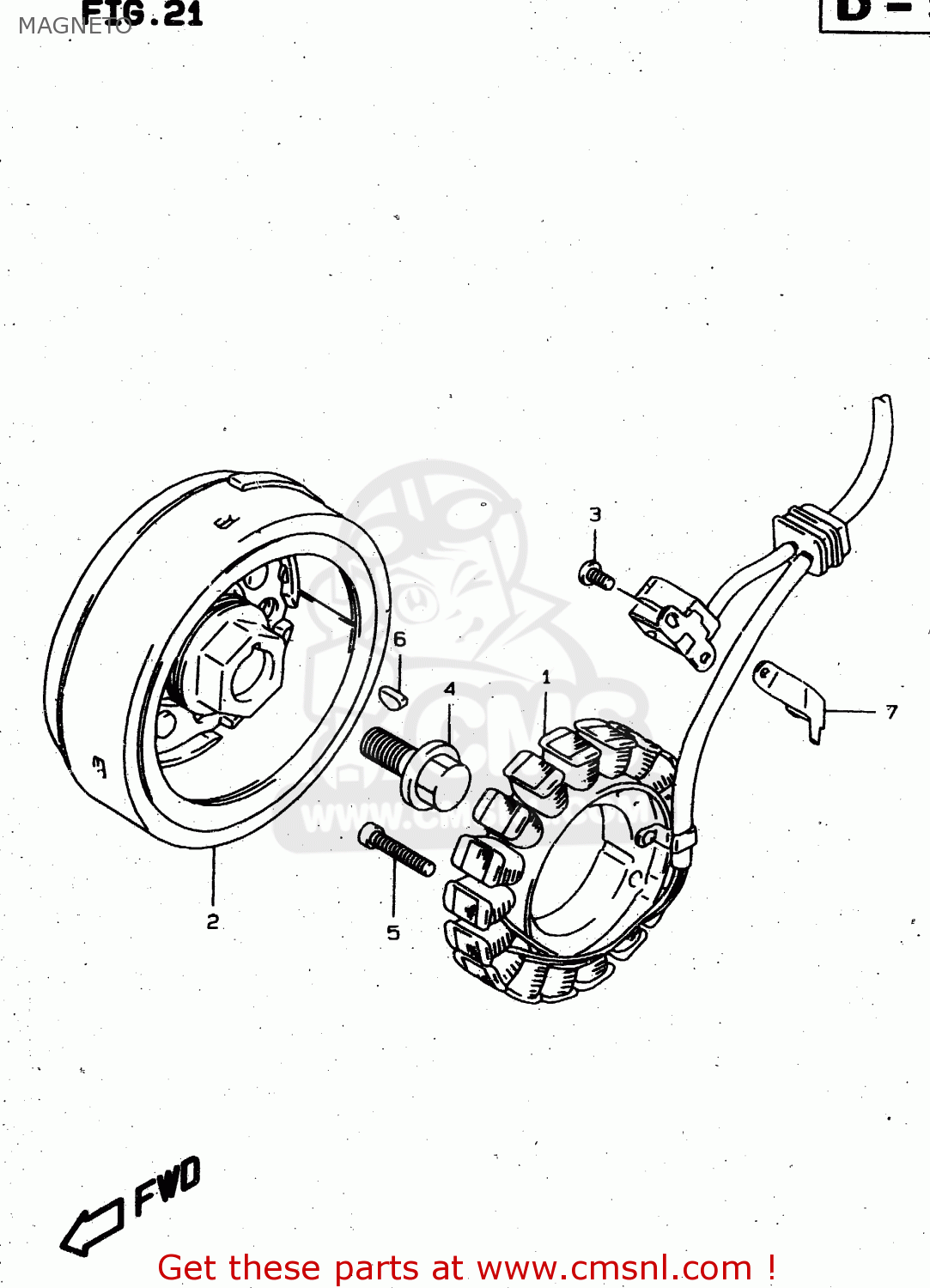

Magneto diagram XF650U 1999 (X) (E22)

MAGNETO XF650U 1999 (X) (E22)

MAGNETO XF650U 1999 (X) (E22)

prices are in EUR

ref

part #

description

quantity

1

3210132E00
ref: 1

STARTER ASSY

€ 703.00

2

3210232E00
ref: 2

ROTOR ASSY

€ 599.00

3

0211205103
ref: 3

SCREW

€ 2.00

4

0910314001
ref: 4

BOLT(14X43)

€ 7.00

5

0713006303
ref: 5

BOLT

€ 3.00

6

0942005007
ref: 6

KEY

€ 3.00

7

3237132E00
ref: 7

CLAMP,MAGNETO LEAD

€ 4.00
