XF650U 1999 (X) (E22)

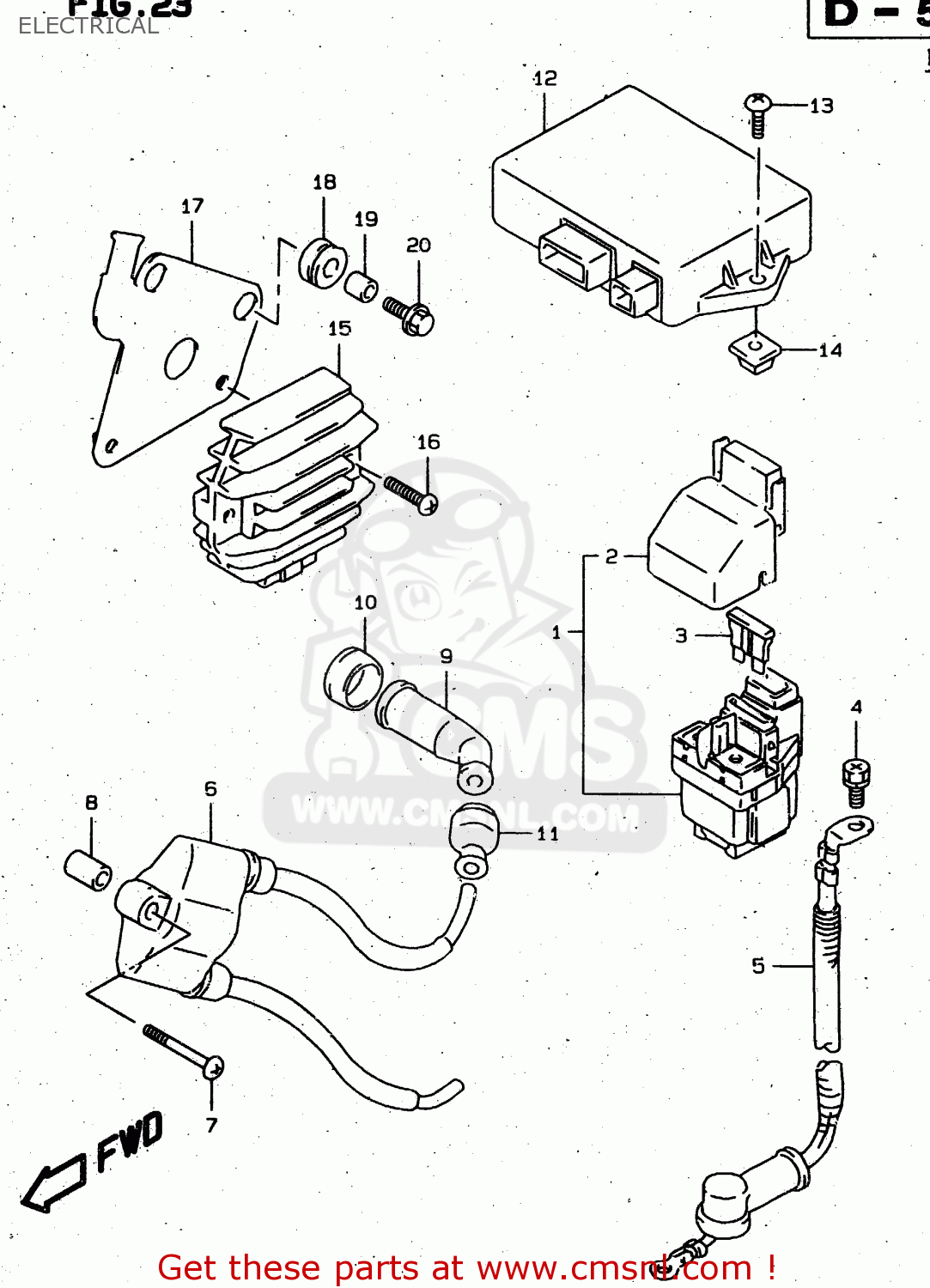

Electrical diagram XF650U 1999 (X) (E22)
ELECTRICAL XF650U 1999 (X) (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3180026E00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 77.50
2
3186126E00
ref: 2
COVER,STARTER RELAY
€ 3.50
3
0948130101
ref: 3
FUSE(30A)
€ 6.00
4
0912806013
ref: 4
SCREW(6X8)
€ 1.50
5
3381021E00
ref: 5
WIRE,STARTER MOTOR LEAD
€ 25.50
6
3341004F00
ref: 6
COIL ASSY,IGNITION
€ 135.50
7
0214206403
ref: 7
SCREW
€ 2.00
8
0918006079
ref: 8
6.5X10.5X15
SPACER(6.5X10.5X15)
€ 2.50
9
3351043010
ref: 9
CAP,SPARK PLUG
€ 11.50
10
3354147D00
ref: 10
SEAL,SPARK PLUG
€ 7.00
11
3354238B00
ref: 11
SEAL,HIGH TENSION CORD
€ 4.50
12
3290004F00
ref: 12
CDI UNIT
€ 460.00
13
0354206203
ref: 13
SCREW
€ 2.00
14
0914806006
ref: 14
NUT
€ 1.50
15
3280032E00
ref: 15
RECTIFIER ASSY
€ 182.50
16
0214206203
ref: 16
SCREW
€ 2.00
17
3283104F00
ref: 17
BRACKET,ELEC PARTS
€ 7.50
18
0932009036
ref: 18
CUSHION
€ 4.00
19
0918006258
ref: 19
SPACER(6.5X9X6.7)
€ 3.00
20
0156006163
ref: 20
BOLT
€ 2.00
