STARTING MOTOR

XF650U 1999 (X) (E22)

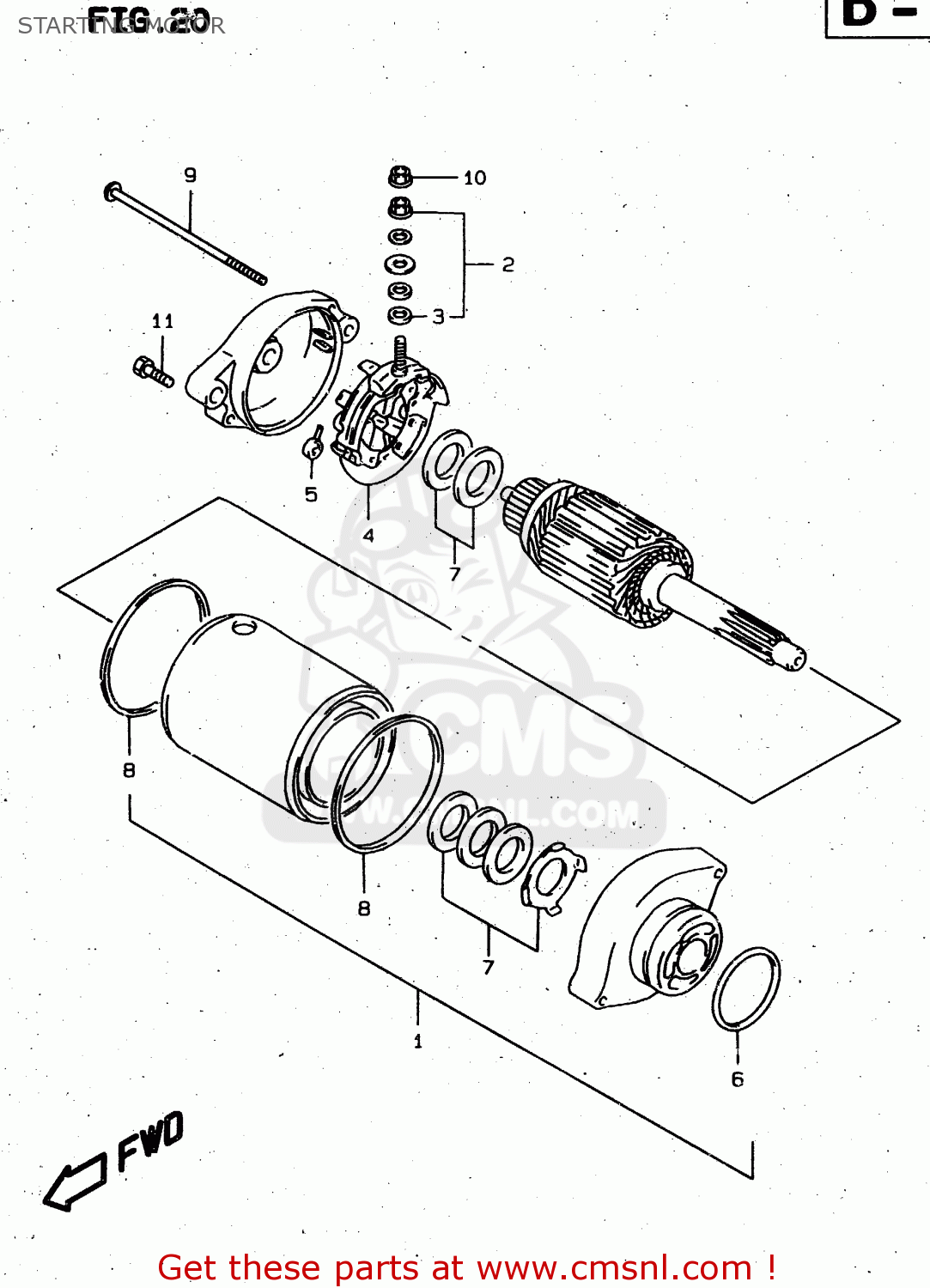

Starting motor diagram XF650U 1999 (X) (E22)

STARTING MOTOR XF650U 1999 (X) (E22)

STARTING MOTOR XF650U 1999 (X) (E22)

prices are in EUR

ref

part #

description

quantity

1

3110032E01
ref: 1
<-31100-32E00

MOTOR ASSY,STARTING

€ 606.00

2

3113038B00
ref: 2

TERMINAL SET,BRUSH

€ 45.00

3

3114349040
ref: 3

O RING

€ 3.00

4

3113238B00
ref: 4

HOLDER SET,BRUSH

€ 45.00

5

3113538B00
ref: 5

SPRING,BRUSH

€ 3.50

6

3115648B00
ref: 6

O RING

€ 8.50

7

3117032E00
ref: 7

WASHER SET

€ 8.00

8

3126432E00
ref: 8
<-31264-31300

SQUARE RING

€ 7.50

9

3128026D00
ref: 9

BOLT

€ 12.50

10

0836135068
ref: 10

NUT

€ 2.00

11

0154706303
ref: 11

BOLT,G/S SWITC

€ 3.00
