OIL PIPE

XF650U 1999 (X) (E22)

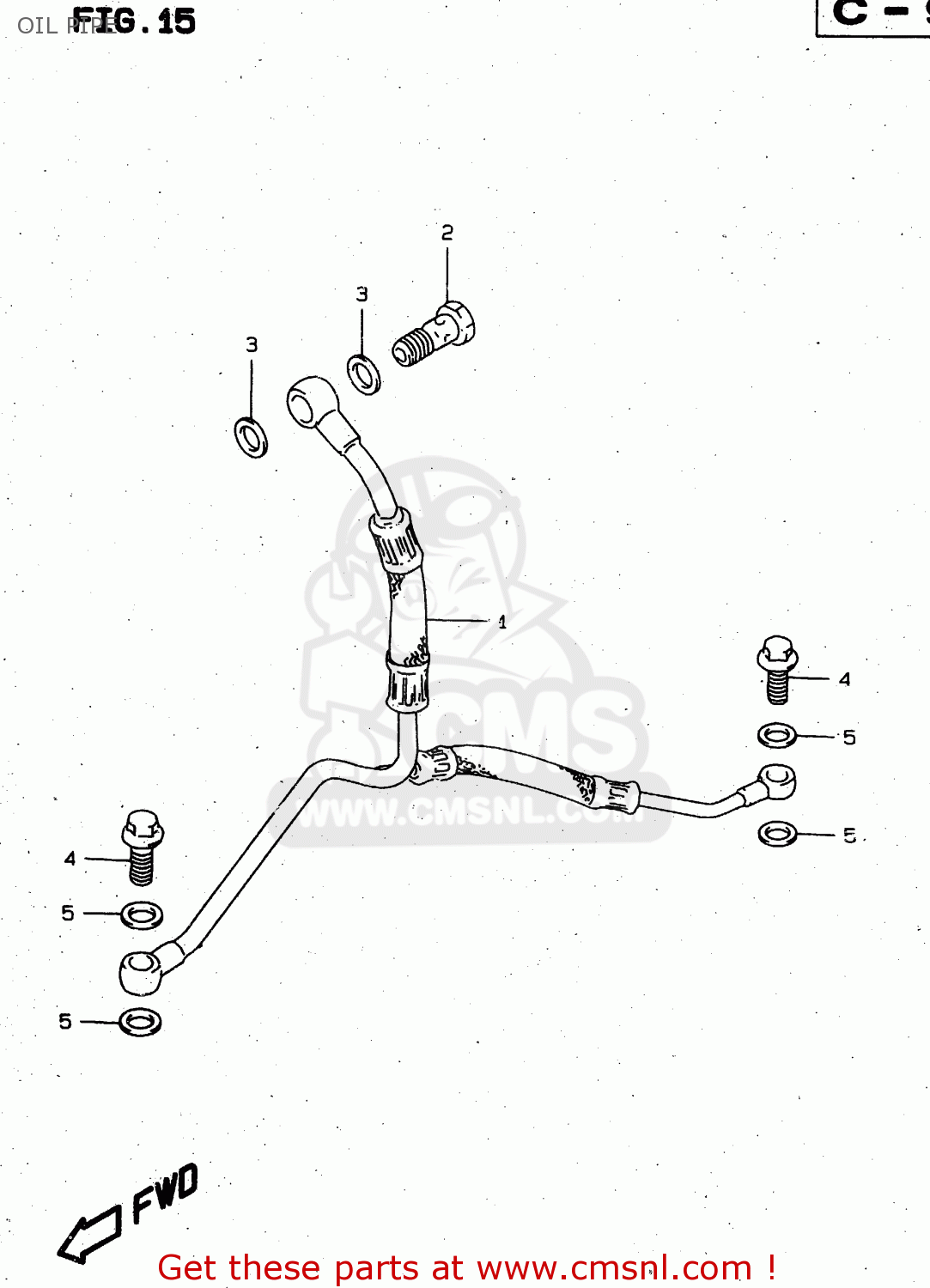

Oil pipe diagram XF650U 1999 (X) (E22)

OIL PIPE XF650U 1999 (X) (E22)

OIL PIPE XF650U 1999 (X) (E22)

prices are in EUR

ref

part #

description

quantity

1

1648004F00
ref: 1

PIPE,T/M & CSHAFT OIL

€ 350.00

2

0936012010
ref: 2

BOLT UNION

€ 7.50

3

0916812017
ref: 3

GASKET(12X17X1) (NAS)

€ 2.00

4

0936010032
ref: 4

BOLT UNION

€ 3.00

5

0916810007
ref: 5

GASKET(10.1X16X1) (NAS)

€ 2.00
