CRANKCASE COVER
ZR50KE 1981 (N) (E02 E16 E41)

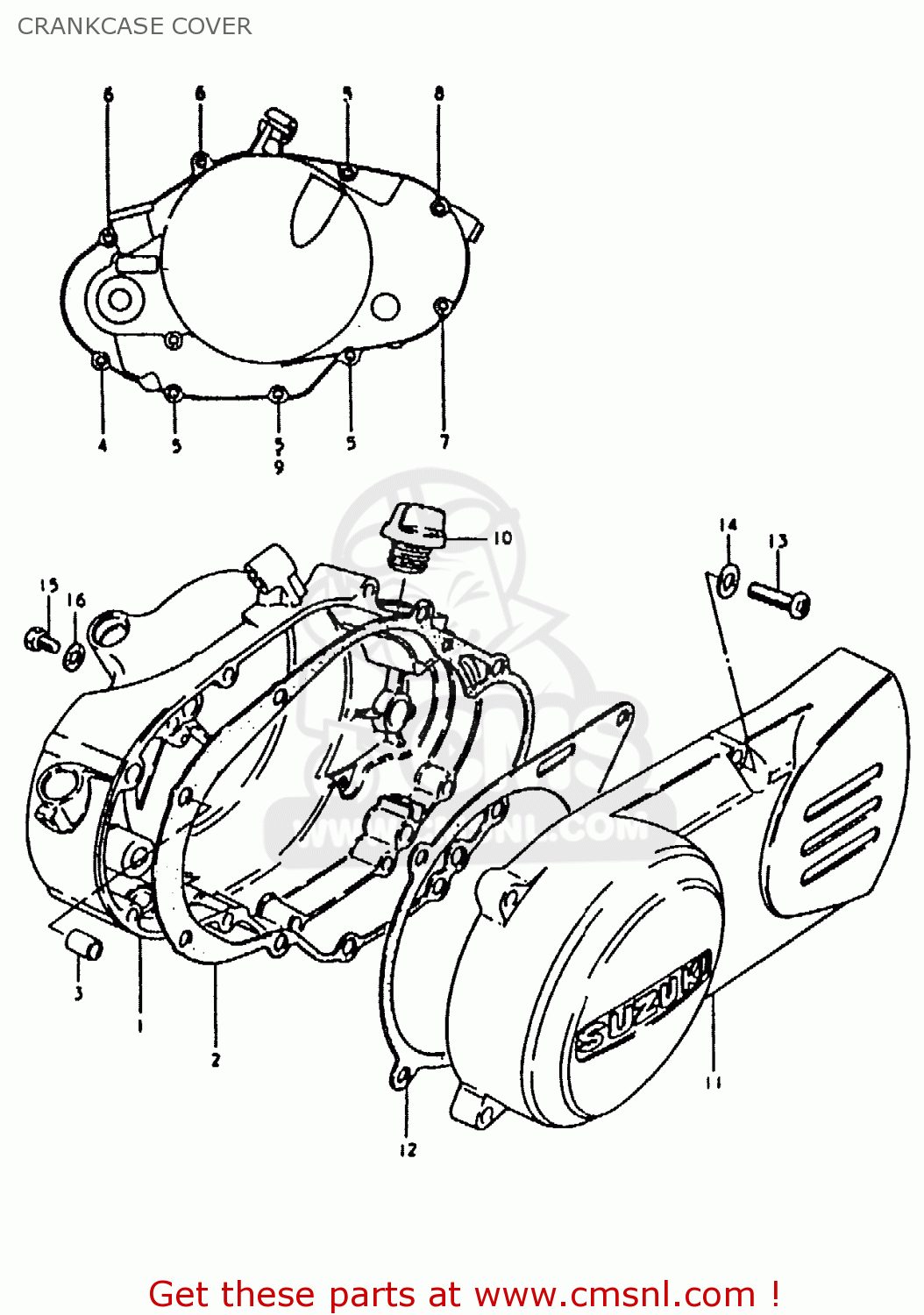

Crankcase cover diagram ZR50KE 1981 (N) (E02 E16 E41)
CRANKCASE COVER ZR50KE 1981 (N) (E02 E16 E41)
×
prices are in EUR
ref
part #
description
quantity
1
1130046851
ref: 1
COVER SET,CLUTCH
€ 112.00
2
1148246001
ref: 2
GASKET,CLUTCH COVER (MCA)
€ 9.00
3
0421109129
ref: 3
PIN
€ 2.00
4
0211206258
ref: 4
SCREW
€ 2.00
5
0211206308
ref: 5
SCREW 6X30
€ 2.50
6
0211206408
ref: 6
SCREW
€ 2.00
7
0211206557
ref: 7
SCREW
€ 2.50
8
0211206608
ref: 8
SCREW 6X60
€ 2.50
9
0916806004
ref: 9
GASKET(6.2X11X1).2 (NAS)
€ 1.50
10
0925919001
ref: 10
PLUG
€ 6.00
11
1135146201
ref: 11
COVER,MAGNETO
€ 102.50
12
1148346100
ref: 12
GASKET,MAGNETO COVER (NAS)
€ 7.00
13
0211206258
ref: 13
SCREW
€ 2.00
14
0832211068
ref: 14
WASHER 6MM
€ 2.00
15
0912806004
ref: 15
SCREW(6X10)
€ 1.50
16
0916806001
ref: 16
GASKET(6.2X11X1) (NAS)
€ 1.50
