REAR COMBINATION LAMP
ZR50KE 1981 (N) (E02 E16 E41)

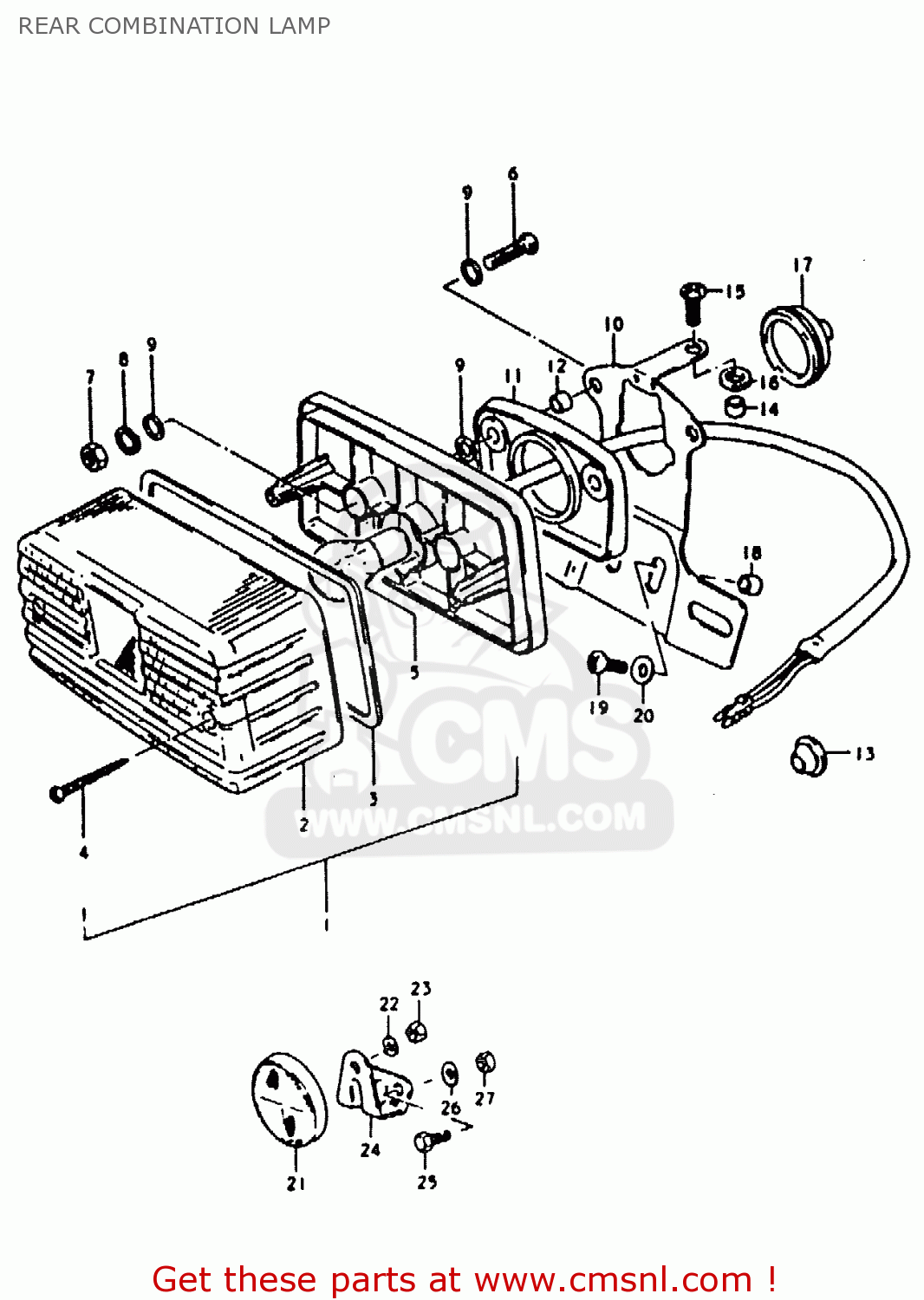

Rear combination lamp diagram ZR50KE 1981 (N) (E02 E16 E41)
REAR COMBINATION LAMP ZR50KE 1981 (N) (E02 E16 E41)
×
prices are in EUR
ref
part #
description
quantity
1
3572046120
ref: 1
LAMP UNIT, REAR COMBINATION
€ 90.50
2
3571246120
ref: 2
LENS
€ 35.50
3
3571335300
ref: 3
GASKET (NAS)
€ 0.00
4
0321104358
ref: 4
SCREW
€ 0.50
5
0947106042
ref: 5
BULB (6V,21/5W)
€ 12.50
6
0211205255
ref: 6
SCREW
€ 2.00
7
0831011058
ref: 7
NUT
€ 2.50
8
0832121058
ref: 8
LOCK WASHER
€ 2.00
9
0832221058
ref: 9
WASHER
€ 2.50
10
3573036400
ref: 10
BRACKET ASSY
€ 0.00
11
3576536400
ref: 11
CUSHION
€ 0.00
12
3576636400
ref: 12
SPACER
€ 0.00
13
0930807004
ref: 13
GROMMET
€ 2.50
14
0918006032
ref: 14
SPACER (6.1X8X5.2)
€ 2.50
15
0912506009
ref: 15
SCREW (6X15)
€ 3.00
16
0932007005
ref: 16
CUSHION
€ 3.00
17
0930807008
ref: 17
GROMMET
€ 0.00
18
0918006027
ref: 18
SPACER (6.3X9.1X6.7)
€ 3.00
19
0214206308
ref: 19
SCREW
€ 2.00
20
0916006020
ref: 20
WASHER
€ 2.00
21
3597045611
ref: 21
REFLECTOR,REFLEX
€ 47.50
22
0832121058
ref: 22
LOCK WASHER
€ 2.00
23
0831011058
ref: 23
NUT
€ 2.50
24
3597446342
ref: 24
BRACKET
€ 0.00
25
0110405128
ref: 25
BOLT
€ 2.00
26
0832221058
ref: 26
WASHER
€ 2.50
27
0831011058
ref: 27
NUT
€ 2.50
