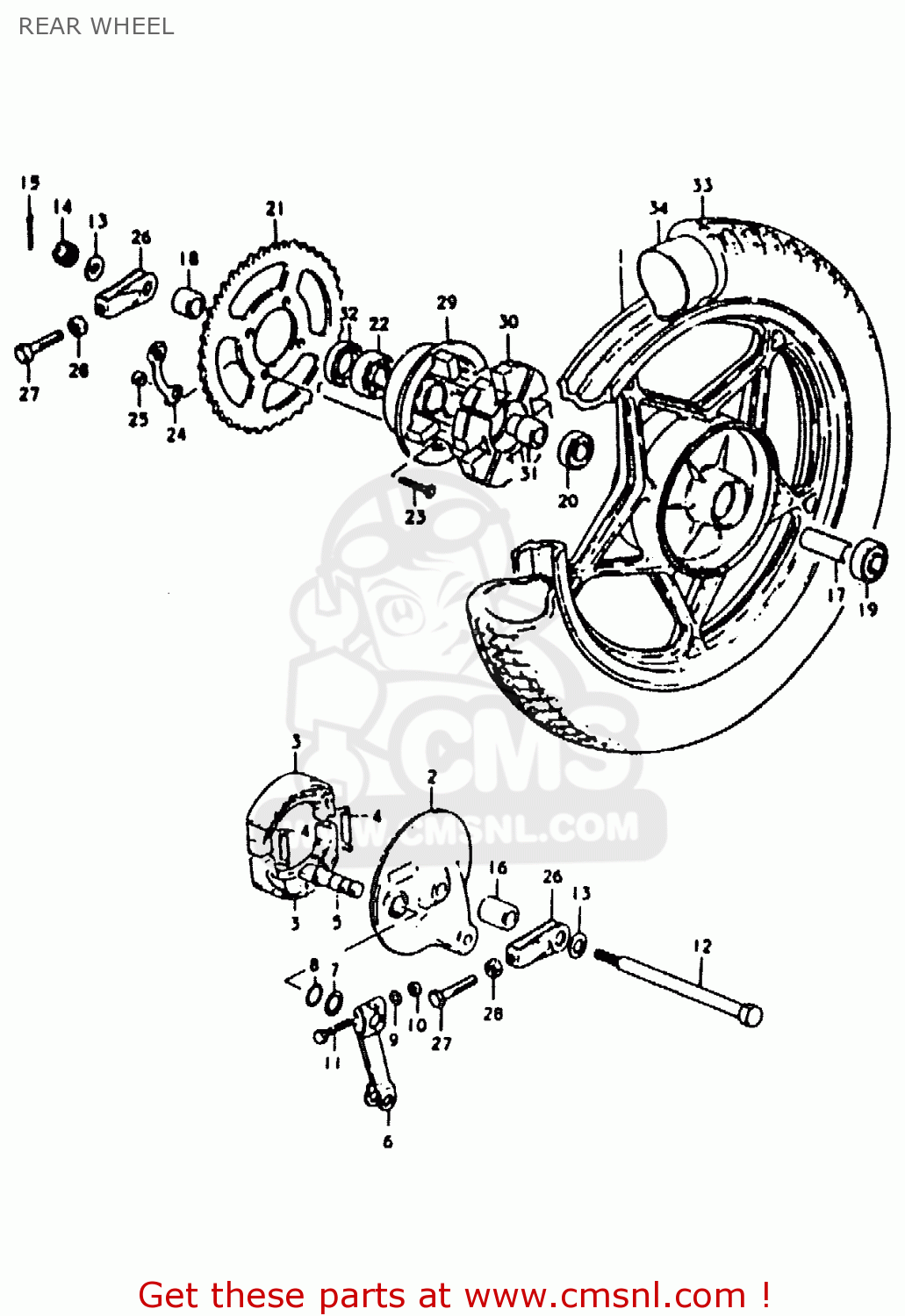

REAR WHEEL

ref

part #

description

quantity

1

6415026400
ref: 1

WHEEL, REAR (J18X1.4 DOT)

€ 0.00

2

6421046002
ref: 2

PANEL, REAR HUB

€ 80.50

3

5441035000
ref: 3

SHOE,BRAKE

€ 39.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129302
ref: 5

CAM,FRONT BRAKE

€ 13.00

6

6445139100
ref: 6

LEVER,RR BRAKE CAM

€ 48.00

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

0928014003
ref: 8

O-RING (D:2.4 ID:13.8)

€ 3.50

9

0832221068
ref: 9

WASHER

€ 2.00

10

0831011068
ref: 10

NUT

€ 2.50

11

0910006078
ref: 11

BOLT(6X33)

€ 2.50

12

5471116503
ref: 12

AXLE,FRONT

€ 29.50

13

0832211128
ref: 13

WASHER

€ 2.00

14

0831431128
ref: 14

NUT 12MM

€ 2.00

15

0411130308
ref: 15

COTTER PIN

€ 1.50

16

0918012085
ref: 16

SPACER, AXLE RH

€ 5.00

17

0918012033
ref: 17

SPACER (12.6X19X58)

€ 4.50

18

0918012081
ref: 18

SPACER 12X25X2

€ 5.50

19

0814363017
ref: 19

BEARING

€ 14.50

20

0814362017
ref: 20

BEARING

€ 11.50

21-1

6451146120
ref: 21-1

SPROCKET,RR(NT:45)

€ 34.50

21-2

NOTUSED
ref: 21-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

22

0926217008
ref: 22

BEARING

€ 14.00

23

0910508001
ref: 23

BOLT(8X33.5)

€ 2.50

24

0916908011
ref: 24

WASHER

€ 2.50

25

0831012088
ref: 25

NUT

€ 2.00

26

6141026000
ref: 26

ADJUSTER,CHAIN,R

€ 41.50

27

0910406002
ref: 27

BOLT(6X38)

€ 2.00

28

0831011068
ref: 28

NUT

€ 2.50

29

6461139200
ref: 29

DRUM,RR SPROCKET MOUNTING

€ 43.00

30

6465101001
ref: 30

CUSHION,REAR DRUM

€ 9.00

31

6473343000
ref: 31

RETAINER,RR SPROCKET DRUM

€ 7.00

32

0928525001
ref: 32

SEAL OIL(25X40X6)

€ 12.50

33

6510046100
ref: 33
IRC

TIRE (2.50-18)

€ 0.00

34

5520014010
ref: 34

TUBE,INNER

€ 22.00
