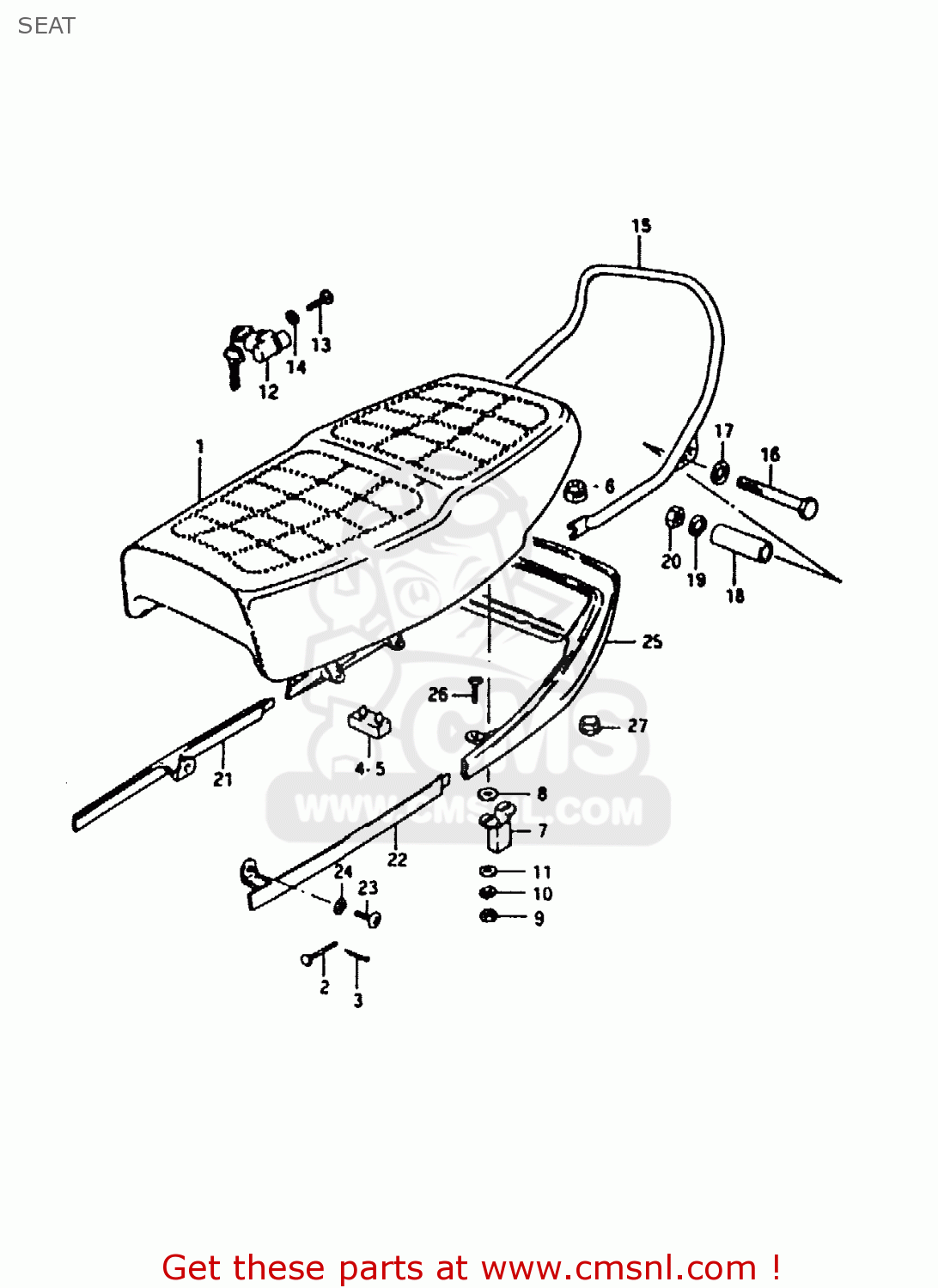

SEAT

ref

part #

description

quantity

1

4510026410866
ref: 1
BLACK

SEAT ASSY

€ 0.00

2

0920006018
ref: 2

PIN

€ 2.00

3

0411120158
ref: 3

PIN

€ 1.50

4

0932108006
ref: 4

CUSHION

€ 3.00

5

0932108010
ref: 5

CUSHION

€ 4.00

6

0932110002
ref: 6

CUSHION(11.5X22X20)

€ 2.00

7

4521329300
ref: 7

PLATE,CLAMP GUIDE

€ 7.00

8

0916006028
ref: 8

WASHER(6.5X18X1)

€ 1.50

9

0831011068
ref: 9

NUT

€ 2.50

10

0832121068
ref: 10

LOCK WASHER

€ 2.50

11

0832221068
ref: 11

WASHER

€ 2.00

12

9570030832
ref: 12

LOCK ASSY,SEAT

€ 54.00

13

0211205128
ref: 13

SCREW

€ 2.50

14

0832121058
ref: 14

LOCK WASHER

€ 2.00

15

4158026400
ref: 15

BAR, PILLION RIDER

€ 0.00

16

0110710658
ref: 16

BOLT 10X65

€ 4.00

17

0832211108
ref: 17

WASHER

€ 2.50

18

0918010015
ref: 18

SPACER

€ 6.50

19

0832121108
ref: 19

LOCK WASHER

€ 2.00

20

0831022108
ref: 20

NUT

€ 2.50

21-1

451912640005H
ref: 21-1
BLUE

PLATE, SEAT LOWER RH

€ 0.00

21-2

451912640007P
ref: 21-2
RED

PLATE, SEAT LOWER RH

€ 0.00

21-3

4519126400189
ref: 21-3
WHITE

PLATE, SEAT LOWER RH

€ 19.50

22-1

451922640005H
ref: 22-1
BLUE

PLATE, SEAT LOWER LH

€ 0.00

22-2

451922640007P
ref: 22-2
RED

PLATE, SEAT LOWER LH

€ 0.00

22-3

4519226400189
ref: 22-3
WHITE

PLATE, SEAT LOWER LH

€ 0.00

23

0214206107
ref: 23

SCREW

€ 2.00

24

0832121058
ref: 24

LOCK WASHER

€ 2.00

25-1

455112640005H
ref: 25-1
BLUE

TAIL COVER, SEAT

€ 0.00

25-2

455112640007P
ref: 25-2
RED

TAIL COVER, SEAT

€ 0.00

25-3

4551126400189
ref: 25-3
WHITE

TAIL COVER, SEAT

€ 0.00

26

0214206107
ref: 26

SCREW

€ 2.00

27

0925014005
ref: 27

PLUG(OD:19)

€ 2.00
