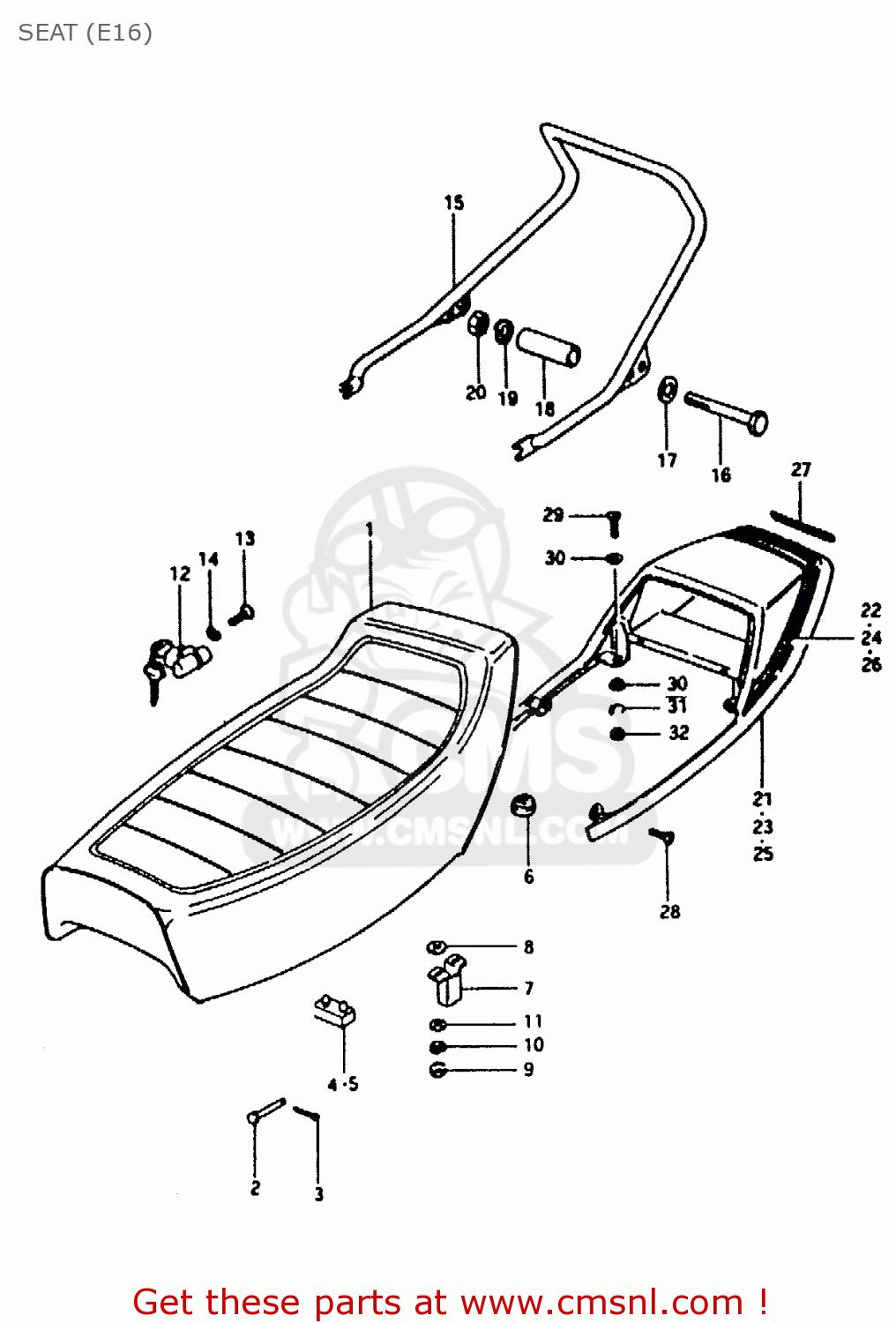

SEAT (E16)

ref

part #

description

quantity

1

4510026420865
ref: 1
BLACK

SEAT ASSY

€ 0.00

2

0920006018
ref: 2

PIN

€ 2.00

3

0411120158
ref: 3

PIN

€ 1.50

4

0932108006
ref: 4

CUSHION

€ 3.00

5

0932108010
ref: 5

CUSHION

€ 4.00

6

0932110007
ref: 6

CUSHION

€ 4.50

7

4521329300
ref: 7

PLATE,CLAMP GUIDE

€ 7.00

8

0916006028
ref: 8

WASHER(6.5X18X1)

€ 1.50

9

0831011068
ref: 9

NUT

€ 2.50

10

0832121068
ref: 10

LOCK WASHER

€ 2.50

11

0832221068
ref: 11

WASHER

€ 2.00

12

9570030832
ref: 12

LOCK ASSY,SEAT

€ 54.00

13

0211205128
ref: 13

SCREW

€ 2.50

14

0832121058
ref: 14

LOCK WASHER

€ 2.00

15

4158026400
ref: 15

BAR, PILLION RIDER

€ 0.00

16

0110710658
ref: 16

BOLT 10X65

€ 4.00

17

0832211108
ref: 17

WASHER

€ 2.50

18

0918010015
ref: 18

SPACER

€ 6.50

19

0832121108
ref: 19

LOCK WASHER

€ 2.00

20

0831022108
ref: 20

NUT

€ 2.50

21

455102642007P
ref: 21
RED

COVER, SEAT TAIL

€ 0.00

22

681602642073P
ref: 22

TAPE SET

€ 0.00

23

455102642005H
ref: 23
BLUE

COVER, SEAT TAIL

€ 0.00

24

681602642069T
ref: 24

TAPE SET

€ 0.00

25

4551026420189
ref: 25
WHITE

COVER, SEAT TAIL

€ 0.00

26

681602642073R
ref: 26

TAPE SET

€ 0.00

27

6816546110
ref: 27

EMBLEM,SEAT TAIL COVER RR

€ 3.00

28

0214206108
ref: 28

SCREW

€ 2.00

29

0214206108
ref: 29

SCREW

€ 2.00

30

0916906010
ref: 30

WASHER

€ 3.00

31

0832121068
ref: 31

LOCK WASHER

€ 2.50

32

0831022068
ref: 32

NUT 6MM

€ 2.50
