FRAME

ZR50KE 1981 (N) (E02 E16 E41)

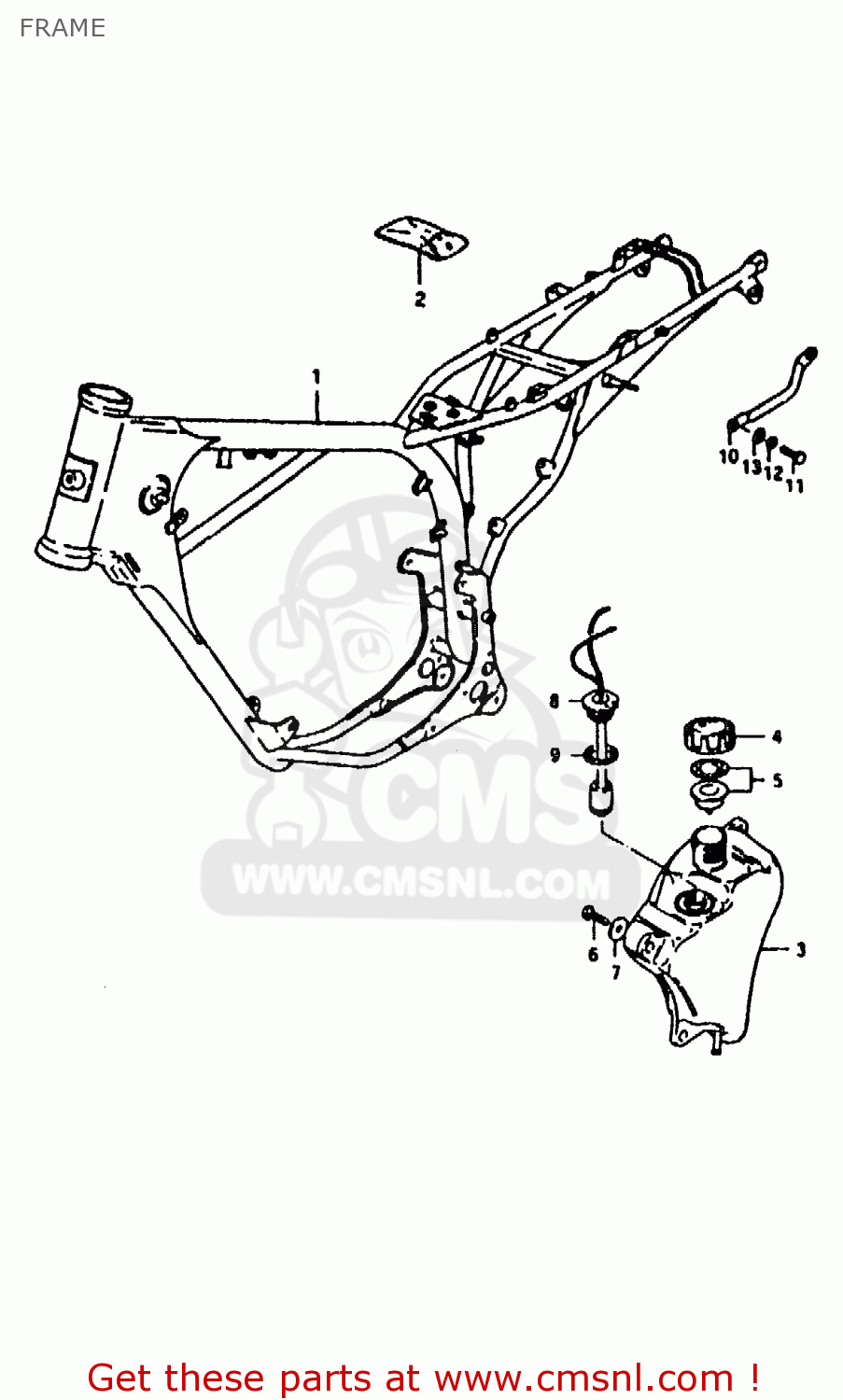

Frame diagram ZR50KE 1981 (N) (E02 E16 E41)

prices are in EUR

ref

part #

description

quantity

4110026400019
ref: 1

FRAME (BLACK)

€ 0.00

0980000108
ref: 2

TOOL SET

€ 43.50

4461126401
ref: 3

TANK, OIL

€ 49.00

4465105003
ref: 4

CAP,OIL TANK

€ 4.00

4460030832
ref: 5

GASKET SET (NAS)

€ 6.00

0110706168
ref: 6

BOLT, UPPER

€ 3.00

0916006007
ref: 7

WASHER

€ 2.00

8-1

3788026500
ref: 8-1
-F.NO.504683

SWITCH, OIL LEVEL

€ 47.50

8-2

3788043000
ref: 8-2
F.NO.504684-

SWITCH, OIL LEVEL

€ 34.50

4464331000
ref: 9

GASKET (NAS)

€ 2.50

4141146100
ref: 10
OPT

GRIP, STAND

€ 19.50

0110708168
ref: 11
OPT

BOLT

€ 2.00

0832121088
ref: 12
OPT

LOCK WASHER

€ 2.00

0832221088
ref: 13
OPT

WASHER

€ 2.00
