FUEL TANK (E16)
ZR50KE 1981 (N) (E02 E16 E41)

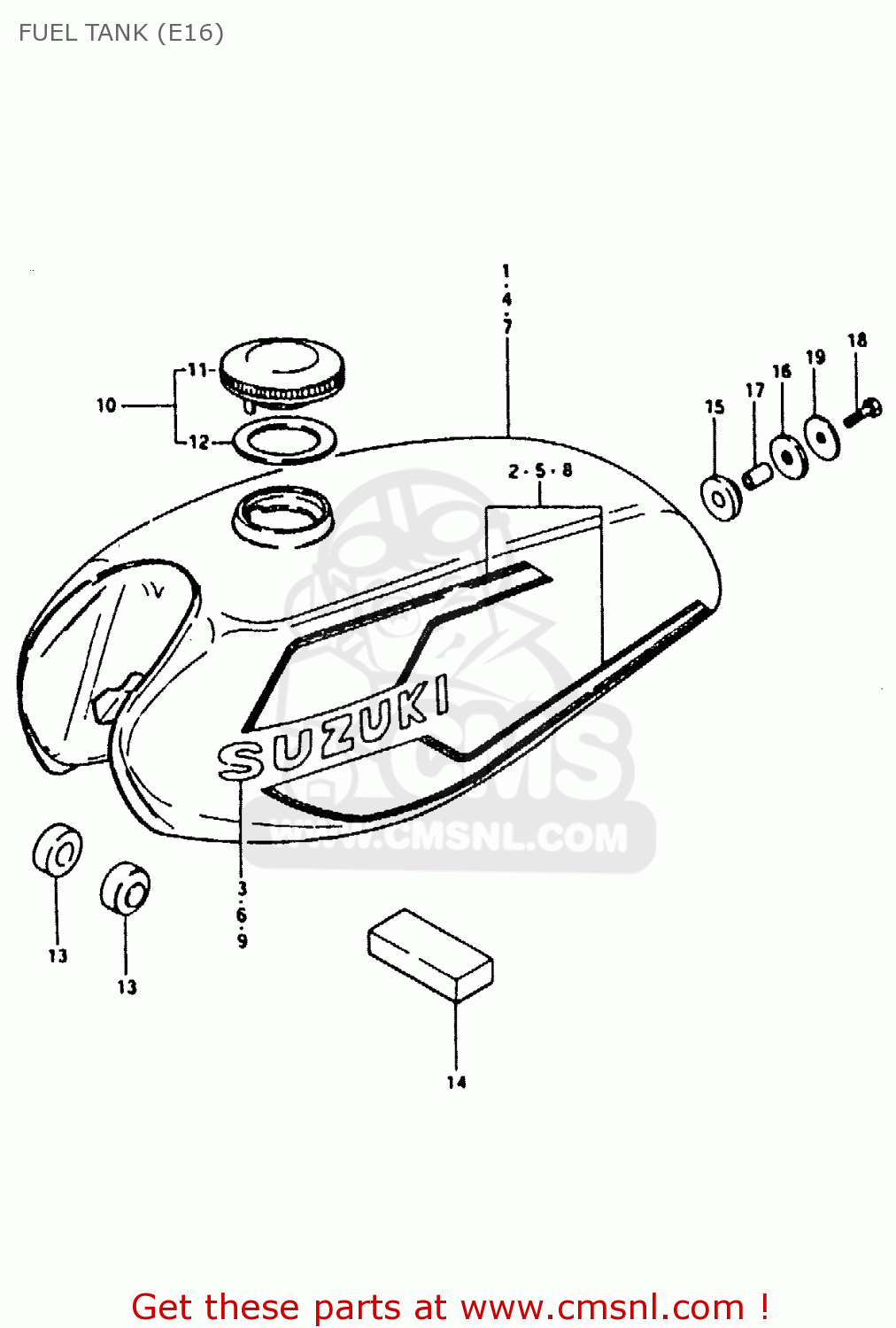

Fuel tank (e16) diagram ZR50KE 1981 (N) (E02 E16 E41)
FUEL TANK (E16) ZR50KE 1981 (N) (E02 E16 E41)
×
prices are in EUR
ref
part #
description
quantity
1
441004616005H
ref: 1
TANK, FUEL (BLUE)
€ 291.00
2
6810126840
ref: 2
TAPE SET
€ 0.00
3
6811146110064
ref: 3
EMBLEM (WHITE)
€ 13.50
4
441004616007P
ref: 4
TANK, FUEL (RED)
€ 291.00
5
6810126830
ref: 5
TAPE SET
€ 0.00
6
6811146110064
ref: 6
EMBLEM (WHITE)
€ 13.50
7
4410046160189
ref: 7
TANK, FUEL (WHITE)
€ 291.00
8
6810126850
ref: 8
TAPE SET
€ 0.00
9
6811146110019
ref: 9
EMBLEM (BLACK)
€ 9.00
10
4420023810
ref: 10
CAP ASSY,FUEL TANK FILLER
€ 60.50
11
4421023300
ref: 11
CAP,FUEL TANK
€ 60.50
12
8541370000
ref: 12
GASKET (NAS)
€ 4.50
13
0932910007
ref: 13
CUSHION
€ 3.00
14
0932901005
ref: 14
CUSHION
€ 11.50
15
0932012010
ref: 15
CUSHION
€ 3.00
16
0932012023
ref: 16
CUSHION
€ 2.50
17
0918008067
ref: 17
SPACER(8.5X12X19)
€ 2.50
18
0110708308
ref: 18
BOLT (8X30)
€ 2.50
19
0916008002
ref: 19
WASHER (8.5X29X1.6)
€ 2.00
