CARBURETOR
ZR50SK 1984 (E) (E02 E16 E21)

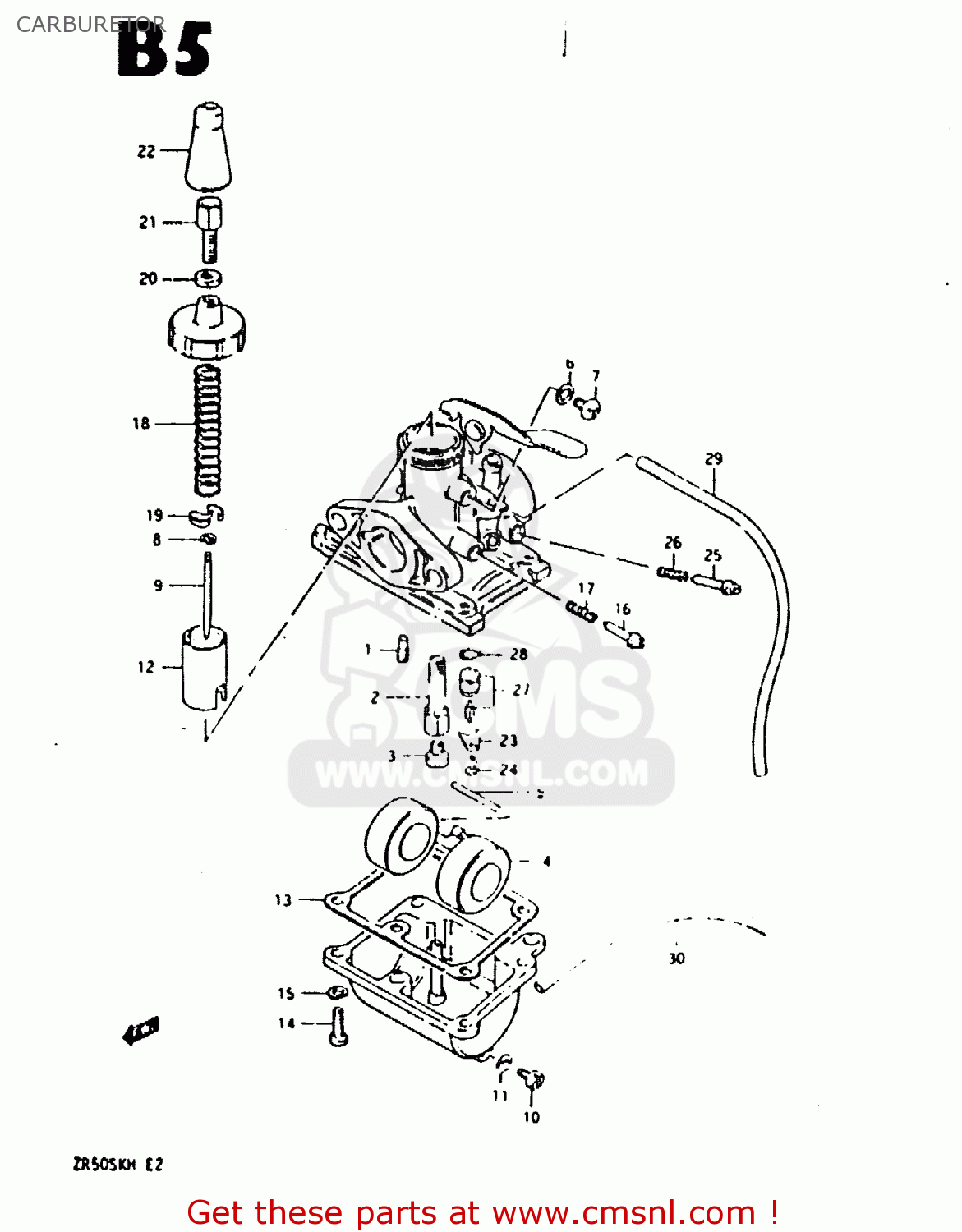

Carburetor diagram ZR50SK 1984 (E) (E02 E16 E21)
CARBURETOR ZR50SK 1984 (E) (E02 E16 E21)
×
prices are in EUR
ref
part #
description
quantity
0
1320026960
ref: 0
E16
CARBURETOR ASSY
€ 0.00
0
1320026930
ref: 0
E2
CARBURETOR ASSY
€ 0.00
0
1320026920
ref: 0
E21
CARBURETOR ASSY
€ 154.00
1-1
0949217006
ref: 1-1
E16
JET,PILOT(17.5)
€ 7.50
1-2
0949215002
ref: 1-2
E2, E21
JET,PILOT
€ 11.00
2-1
0949400353
ref: 2-1
E16
JET, NEEDLE (F-1)
€ 24.00
2-2
0949400040
ref: 2-2
E2
JET, NEEDLE (E-4)
€ 21.00
2-3
0949400328
ref: 2-3
E21
JET, NEEDLE (F-1)
€ 17.00
3-1
0949167004
ref: 3-1
E16
JET,MAIN(67.5)
€ 6.00
3-2
0949165003
ref: 3-2
E2
JET,MAIN(65)
€ 7.50
3-3
0949187005
ref: 3-3
E21
JET,MAIN(87.5)
€ 6.50
4
1325246110
ref: 4
FLOAT
€ 24.00
5
1325420010
ref: 5
PIN,FLOAT
€ 3.00
6
1366346710
ref: 6
RING
€ 3.00
7
0211205066
ref: 7
SCREW
€ 2.00
8
1339412110
ref: 8
CLIP,NEEDLE
€ 3.00
9-1
1338306111
ref: 9-1
E16
NEEDLE,JET
€ 13.00
9-2
1338326930
ref: 9-2
E2
NEEDLE, JET (3L14-3)
€ 14.50
9-3
1338326920
ref: 9-3
E21
NEEDLE, JET (3FL16-3)
€ 14.50
10
1324705010
ref: 10
PLUG
€ 6.00
11
1324905010
ref: 11
GASKET,DRAIN,PLUG (NAS)
€ 1.50
12-1
1355126930
ref: 12-1
E2, E16
VALVE, THROTTLE (CA:1.5)
€ 72.00
12-2
1355146540
ref: 12-2
E21
VALVE, THROTTLE (CA:2.5)
€ 30.00
13
1325146110
ref: 13
GASKET,FLOAT CHAMBER (NAS)
€ 7.00
14
0211204166
ref: 14
SCREW
€ 1.00
15
0832121046
ref: 15
LOCK WASHER
€ 2.00
16
1326701010
ref: 16
SCREW,THROTTLE STOP
€ 6.00
17
1326801010
ref: 17
SPRING
€ 3.50
18
1357346710
ref: 18
SPRING,THROTTLE VALVE RETURN
€ 3.00
19
1358107910
ref: 19
PLATE
€ 6.50
20
1366116600
ref: 20
NUT
€ 5.00
21-1
1357722600
ref: 21-1
E2, E16
ADJUSTER,CABLE
€ 6.00
21-2
1357748110
ref: 21-2
E21
ADJUSTER,CABLE
€ 8.00
22-1
1368133010
ref: 22-1
E2, E16
CAP,CABLE ADJUSTER
€ 8.00
22-2
1368116600
ref: 22-2
E21
CAP,RUBBER
€ 7.00
23
1337346710
ref: 23
PLATE,NEEDLE VALVE FITING
€ 4.50
24
0211203086
ref: 24
SCREW
€ 1.50
25
1326904010
ref: 25
1 1/2
SCREW,AIR
€ 10.00
26
1326801010
ref: 26
SPRING
€ 3.50
27
1337046710
ref: 27
VALVE ASSY,NEEDLE
€ 44.00
28
1337446710
ref: 28
O RING
€ 4.50
29
1368336A00
ref: 29
L:300@r220
HOSE
€ 8.00
30
1368405200
ref: 30
L:425@r160
HOSE
€ 7.50
