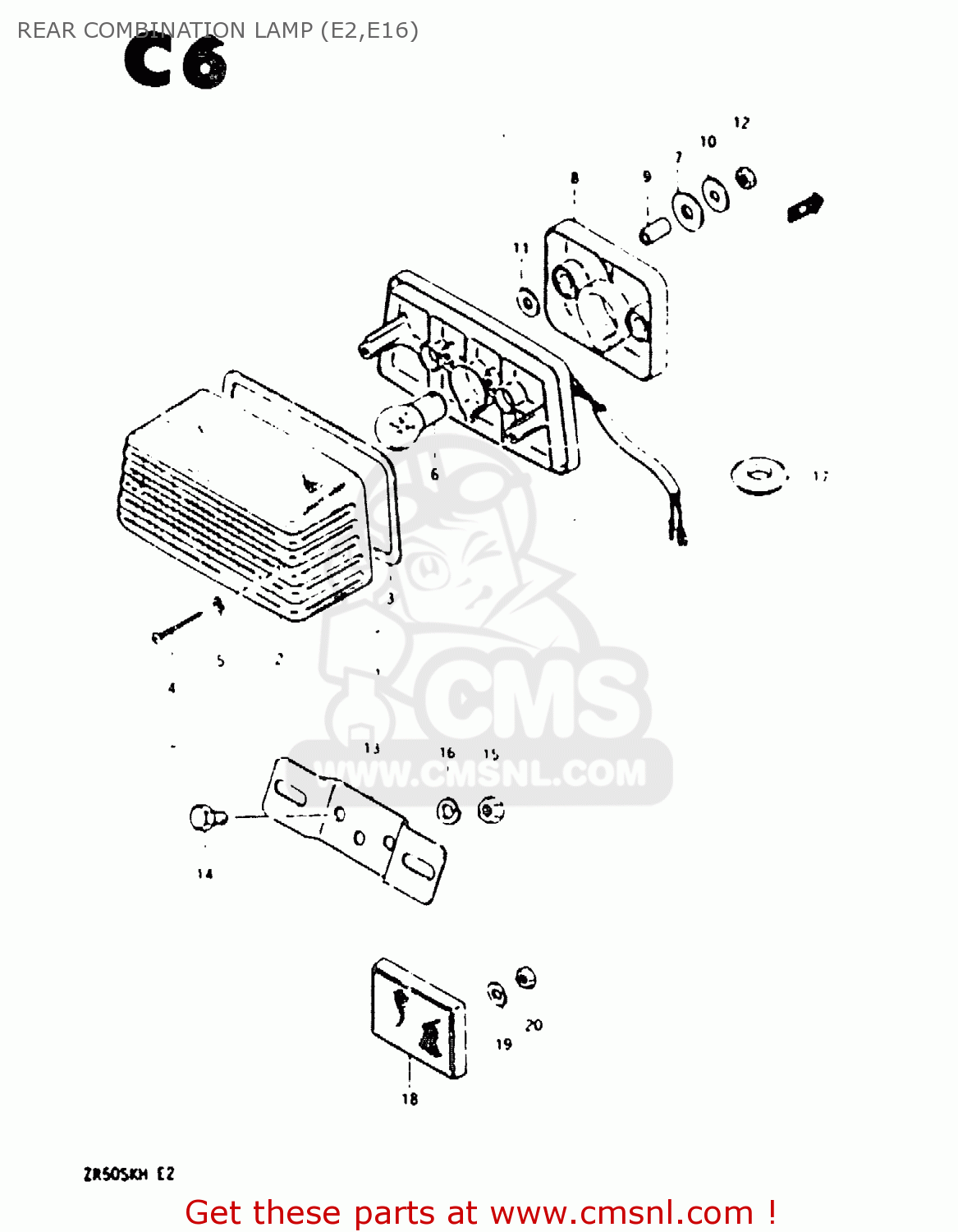

REAR COMBINATION LAMP (E2,E16)

ref

part #

description

quantity

1-1

3571026461
ref: 1-1
E2 ~E.NO.141901

LAMP ASSY, REAR COMBINATION

€ 98.00

1-2

3571026420
ref: 1-2
E2 E.NO.141902~

LAMP ASSY, REAR COMBINATION

€ 0.00

1-3

3571026401
ref: 1-3
E16

LAMP ASSY, TAIL

€ 98.00

2-1

3571236511
ref: 2-1

LENS

€ 26.00

2-2

3571239370
ref: 2-2
E2, E.NO.141902~

LENS,RR COMBINATION LAMP

€ 33.00

3

3571335300
ref: 3

GASKET (NAS)

€ 0.00

4

0321204359
ref: 4

SCREW

€ 0.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6-1

0947106034
ref: 6-1
E2 EXECUTED LOCALLY

BULB (6V,21/5W)

€ 0.00

6-2

0947106008
ref: 6-2
E16

BULB(6V10/3W,STANLEY,A4854H)

€ 4.50

7

3576426451
ref: 7

CUSHION,RR COMBINATION LAMP

€ 0.00

8

3576526450
ref: 8

CUSHION

€ 11.00

9

0918006072
ref: 9

SPACER

€ 2.00

10

0916005011
ref: 10

WASHER (5.5X20X1.2)

€ 2.00

11

0916005013
ref: 11

WASHER(5.2X16X1)

€ 1.50

12

0831011056
ref: 12

NUT

€ 2.50

13

3592726450
ref: 13

BRACKET, LICENSE PLATE

€ 0.00

14

0151706164
ref: 14

BOLT

€ 2.50

15

0831011066
ref: 15

NUT

€ 2.00

16

0832121066
ref: 16

WASHER,LOCK

€ 2.00

17

0930809004
ref: 17

GROMMET

€ 0.00

18-1

3597046110
ref: 18-1

REFLEX REFLECTOR,RR

€ 0.00

18-2

3597033200
ref: 18-2

REFLEX REFLECTOR, REAR (RR015)

€ 9.50

19

0916005013
ref: 19

WASHER(5.2X16X1)

€ 1.50

20

0831011056
ref: 20

NUT

€ 2.50

all assemblies
