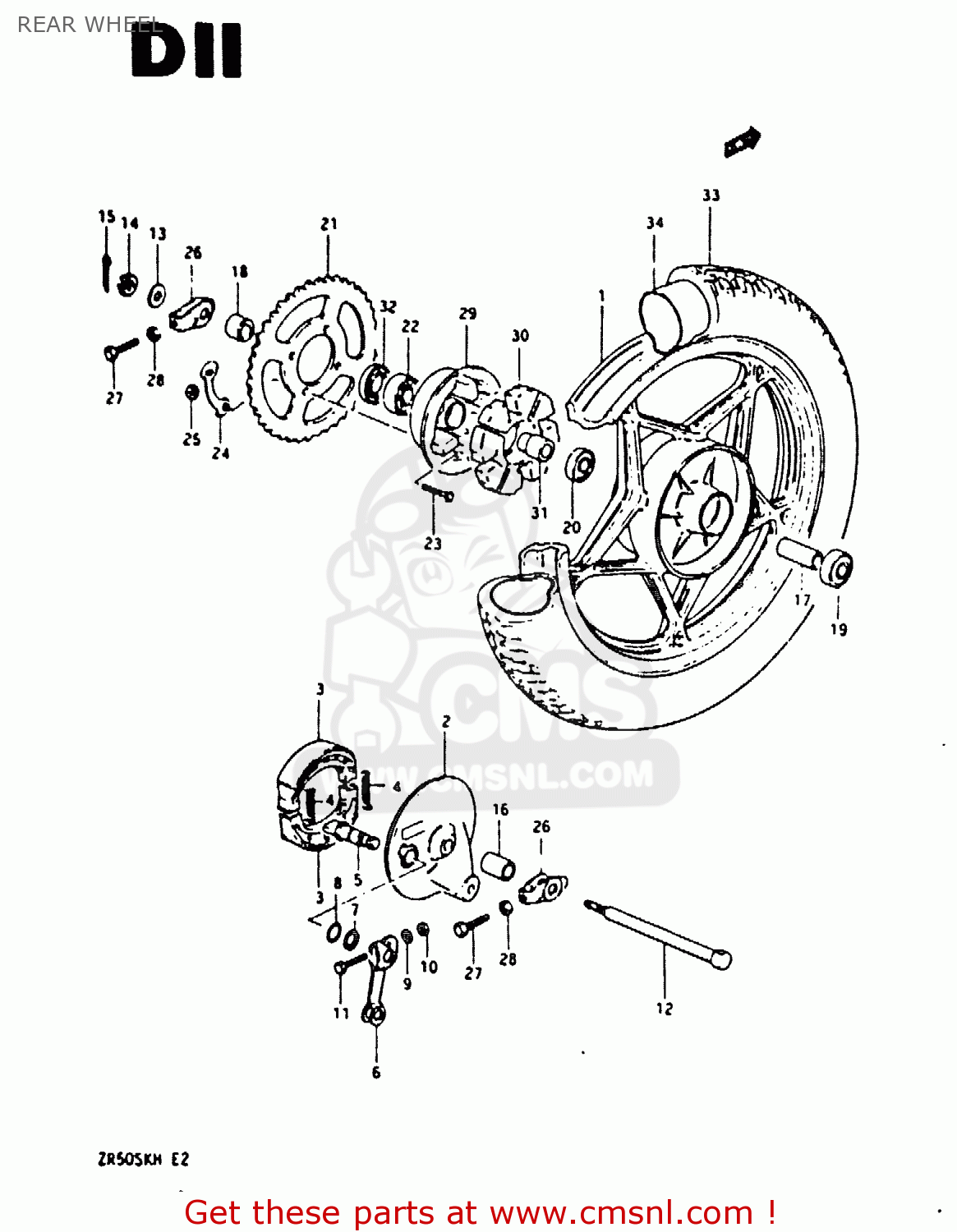

REAR WHEEL

ref

part #

description

quantity

1-1

641502647113T
ref: 1-1
MODEL E

WHEEL, REAR (160*18) (GOLD)

€ 490.50

1-2

641502647112U
ref: 1-2
MODEL H

WHEEL, REAR (160*18) (GRAY)

€ 462.00

2

6421046003
ref: 2

PANEL, REAR BRAKE ANCHOR

€ 80.50

3

5441043011
ref: 3

SHOE,BRAKE

€ 19.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

5

5444129304
ref: 5

CAM,FRONT BRAKE

€ 13.00

6

6445148000
ref: 6

LEVER,RR BRAKE CAM

€ 32.50

7

0916014001
ref: 7

WASHER (14.5X22X1.6)

€ 2.50

8

0928014003
ref: 8

O-RING (D:2.4 ID:13.8)

€ 3.50

9

0832221067
ref: 9

WASHER

€ 2.00

10

0831011068
ref: 10

NUT

€ 2.50

11

0910006078
ref: 11

BOLT(6X33)

€ 2.50

12

5471116503
ref: 12

AXLE,FRONT

€ 29.50

13

0832211128
ref: 13

WASHER

€ 2.00

14

0831431128
ref: 14

NUT 12MM

€ 2.00

15

0411130308
ref: 15

COTTER PIN

€ 1.50

16

0918012085
ref: 16

SPACER, AXLE RH

€ 5.00

17

0918012033
ref: 17

SPACER (12.6X19X58)

€ 4.50

18

0918012081
ref: 18

SPACER 12X25X2

€ 5.50

19

0814363017
ref: 19

BEARING

€ 14.50

20

0814362017
ref: 20

BEARING

€ 11.50

21-1

6451146150
ref: 21-1
E16

SPROCKET,RR NT

€ 39.50

21-2

6451146120
ref: 21-2
E21

SPROCKET,RR(NT:45)

€ 34.50

21-3

6451146130
ref: 21-3
E2

SPROCKET,RR NT

€ 43.50

22

0926217023
ref: 22

BEARING(17X40X12)

€ 14.00

23

0910508001
ref: 23

BOLT(8X33.5)

€ 2.50

24

0916908011
ref: 24

WASHER

€ 2.50

25

0831012088
ref: 25

NUT

€ 2.00

26

6141013200A
ref: 26

6141013200A

27

0910406002
ref: 27

BOLT(6X38)

€ 2.00

28

0831011068
ref: 28

NUT

€ 2.50

29

6461101001
ref: 29

DRUM,REAR SPROCKET MOUNT

€ 56.50

30

6465126400
ref: 30

ABSORBER,RR HUB SHOCK

€ 15.00

31

6473343000
ref: 31

RETAINER,RR SPROCKET DRUM

€ 7.00

32

0928525001
ref: 32

SEAL OIL(25X40X6)

€ 12.50

33

6510023610
ref: 33
IRC

TIRE 2.75-18 070-458MM

€ 142.00

34

5520011601
ref: 34
IRC

TUBE,INNER

€ 24.50
