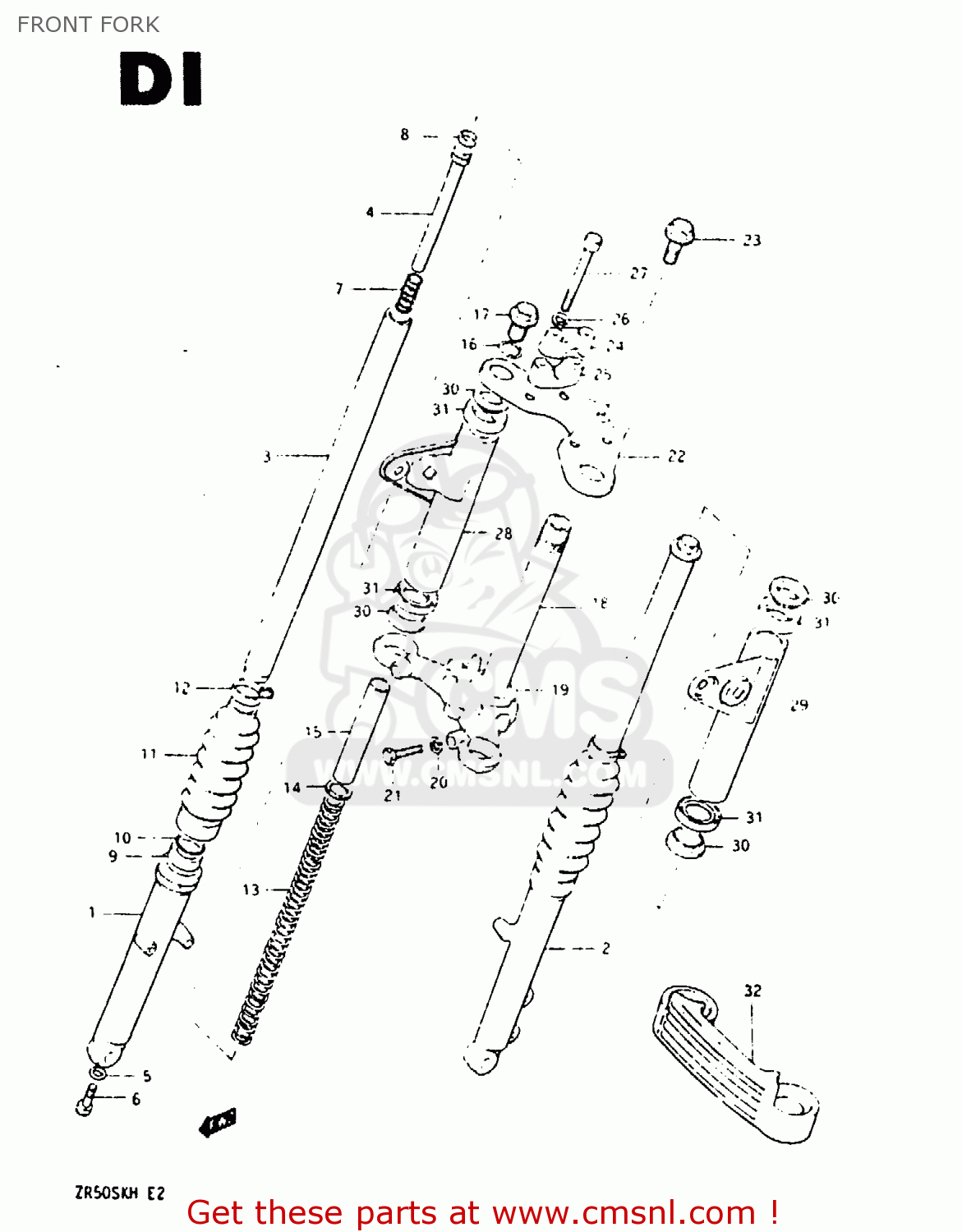

FRONT FORK

ref

part #

description

quantity

0

5110646185
ref: 0
E2, E16

SUB ASSY, FRONT FORK

€ 490.50

0

5110626960
ref: 0
E21

SUB ASSY, FRONT FORK

€ 481.00

1

5113126700
ref: 1

OUTER TUBE, RH

€ 151.00

2

5114126700
ref: 2

OUTER TUBE, LH

€ 134.50

3

5111046180
ref: 3

INNER TUBE

€ 142.50

4

5114626700
ref: 4

CYLINDER

€ 29.50

5

5114836011
ref: 5

GASKET (NAS)

€ 4.00

6

5114748130
ref: 6

BOLT(8X27)

€ 3.50

7

5117746100
ref: 7

SPRING,REBOUND

€ 3.50

8

5119646100
ref: 8

RING,PISTON

€ 6.00

9

5115313200
ref: 9

SEAL,OIL

€ 14.50

10

5115648130
ref: 10

RING,OIL SEAL STOPPER

€ 3.50

11

5157126520
ref: 11

BOOT

€ 32.50

12

0940230306
ref: 12

BAND

€ 6.00

13

5117146181
ref: 13

SPRING

€ 0.00

14

5119246100
ref: 14

JOINT,SPRING

€ 2.50

15

5117646100
ref: 15

SPACER,SPRING

€ 6.50

16

5118146190
ref: 16

O-RING,FORK INNER TUBE

€ 5.50

17

5135146190
ref: 17

CAP

€ 15.00

18-1

5141026700
ref: 18-1
E2, E16

STEERING STEM

€ 142.00

18-2

5141026720
ref: 18-2
E21

STEERING STEM

€ 142.00

19

5162133001
ref: 19

RACE,STEERING OUTER LWR

€ 10.00

20

0832121107
ref: 20

WASHER,LOCK,10

€ 2.00

21

0110710308
ref: 21

BOLT 10X30

€ 3.00

22

5131039130291
ref: 22

STEM HEAD, STEERING

€ 106.00

23

5135246101
ref: 23

BOLT

€ 5.50

24

5621126505291
ref: 24

HOLDER,HANDLE

€ 20.50

25

5621127200291
ref: 25

HOLDER,HANDLE UPR

€ 13.50

26

0832121088
ref: 26

LOCK WASHER

€ 2.00

27

0711008606
ref: 27

BOLT

€ 4.50

28

5153046185291
ref: 28

BRACKET, HEADLAMP RH (BLACK)

€ 70.00

29

5154046185291
ref: 29

BRACKET, HEADLAMP LH (BLACK)

€ 32.50

30

5155346100
ref: 30

CUSHION

€ 7.50

31

5155126700
ref: 31

GUIDE, COVER

€ 8.50

32-1

5187126410
ref: 32-1
E2, E16

COVER

€ 25.00

32-2

5187126420
ref: 32-2
E21

COVER

€ 25.00
