FUEL TANK

ZR50SK 1984 (E) (E02 E16 E21)

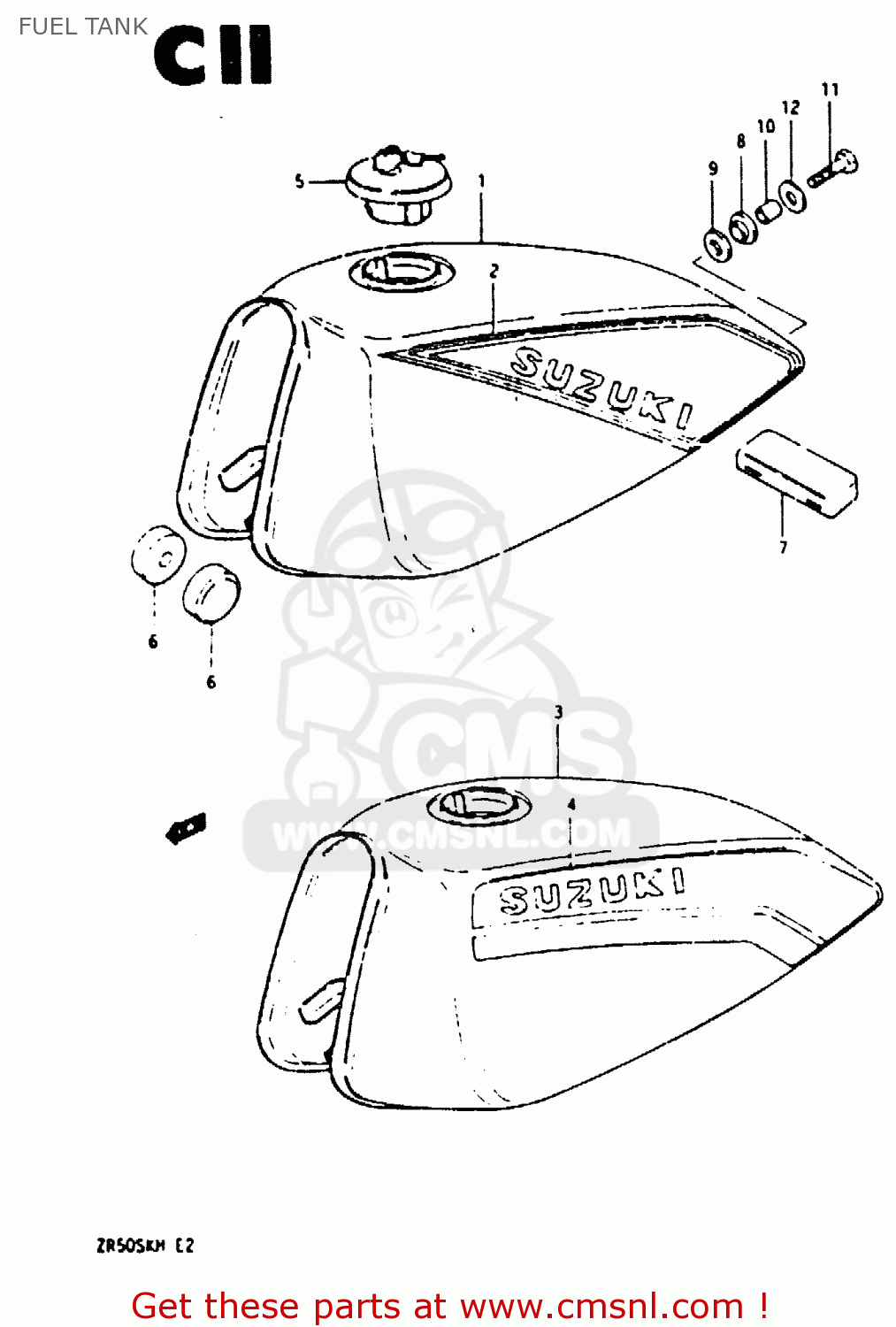

Fuel tank diagram ZR50SK 1984 (E) (E02 E16 E21)

prices are in EUR

ref

part #

description

quantity

1-1

441002643004Y
ref: 1-1
MODEL E

TANK, FUEL (BLUE)

€ 245.50

1-2

441002643007P
ref: 1-2
MODEL E

TANK, FUEL (RED)

€ 245.50

1-3

4410026430019
ref: 1-3
MODEL E

TANK, FUEL (BLACK)

€ 245.50

681102690098F
ref: 2
MODEL E

TAPE SET

€ 33.50

441002692013Z
ref: 3
MODEL H

TANK ASSY, FUEL (BLACK)

€ 245.50

681102693082Z
ref: 4
MODEL H

TAPE SET, FUEL TANK

€ 51.00

4420030516KEY
ref: 5

CAP SET,FUEL TANK

€ 112.00

0932910007
ref: 6

CUSHION

€ 3.00

4454139200
ref: 7

CUSHION,FUEL TANK CTR

€ 6.00

0932012010
ref: 8

CUSHION

€ 3.00

0932012023
ref: 9

CUSHION

€ 2.50

0918008067
ref: 10

SPACER(8.5X12X19)

€ 2.50

0110708358
ref: 11

BOLT

€ 3.50

0916008001
ref: 12

WASHER

€ 2.00
