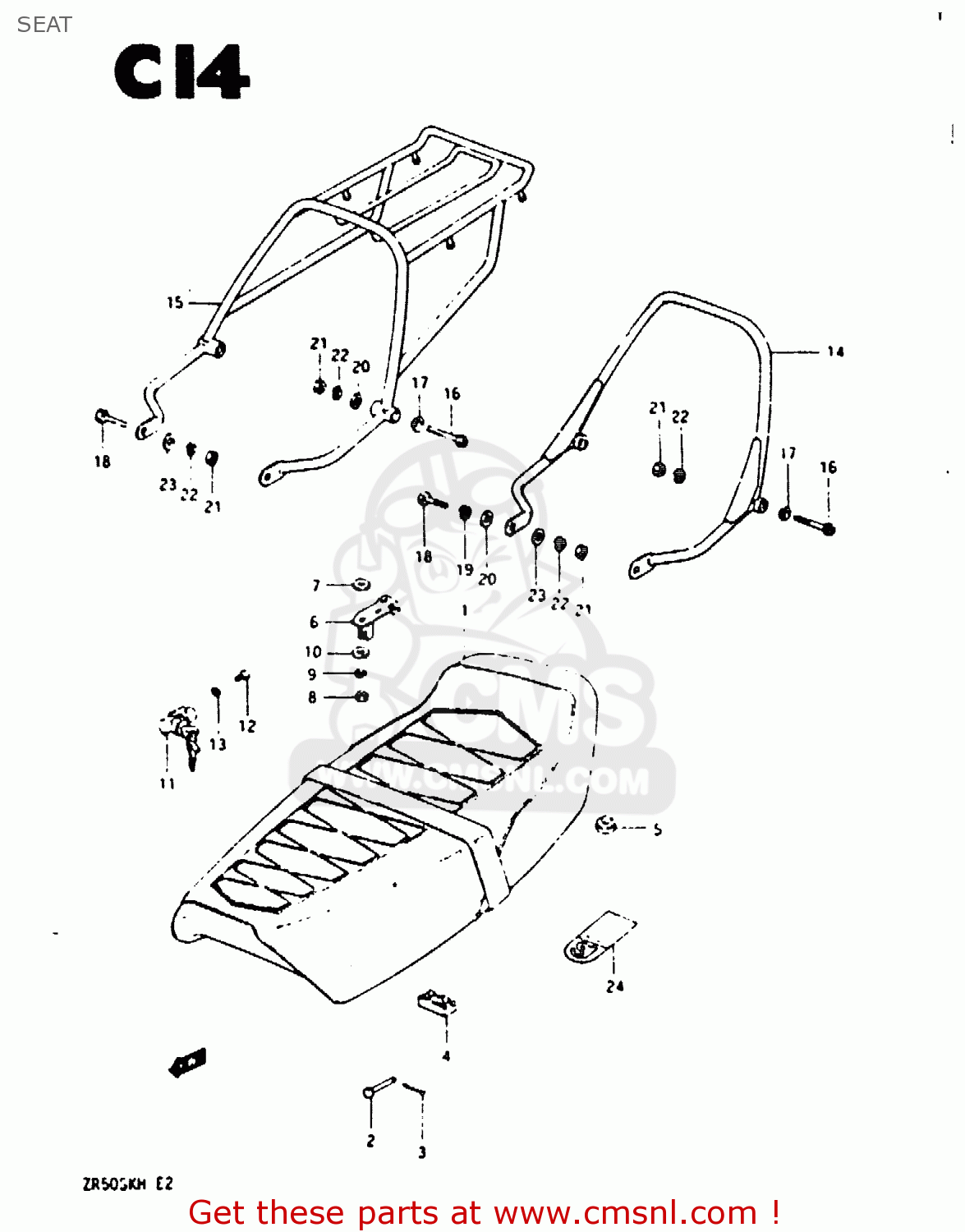

SEAT

ref

part #

description

quantity

1-1

451002649148F
ref: 1-1
E16

SEAT ASSY (BLACK)

€ 0.00

1-2

451002634048F
ref: 1-2
E2, E21

SEAT ASSY (BLACK)

€ 214.50

2

0920006018
ref: 2

PIN

€ 2.00

3

0411120158
ref: 3

PIN

€ 1.50

4

0932108011
ref: 4

CUSHION

€ 3.50

5

0932110011
ref: 5

CUSHION

€ 3.00

6

4522026470
ref: 6

PLATE, SEAT LOCK

€ 0.00

7

0916008043
ref: 7

WASHER(8.5X18X1)

€ 1.50

8

0831011068
ref: 8

NUT

€ 2.50

9

0832131067
ref: 9

WASHER,LOCK

€ 2.50

10

0832221067
ref: 10

WASHER

€ 2.00

11

9570030832
ref: 11

LOCK ASSY,SEAT

€ 54.00

12

0211205128
ref: 12

SCREW

€ 2.50

13

0832121057
ref: 13

LOCK WASHER

€ 2.00

14

4621026421
ref: 14

HANDLE, PILLION RIDER

€ 46.00

15

4631026441
ref: 15
OPT

CARRIER, SPORTS

€ 69.00

16

0711008955
ref: 16

BOLT

€ 2.50

17

0916908026
ref: 17

WASHER

€ 2.00

18

0110708508
ref: 18

BOLT 8X50

€ 3.00

19

0832121088
ref: 19

LOCK WASHER

€ 2.00

20

0832221088
ref: 20

WASHER

€ 2.00

21

0831022088
ref: 21

NUT 8MM

€ 2.00

22

0832121088
ref: 22

LOCK WASHER

€ 2.00

23

0832211088
ref: 23

WASHER

€ 2.00

24

1196782000
ref: 24
E2

LABEL,ASBESTOS WARNING

€ 2.00

all assemblies
