CAM CHAIN

DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125

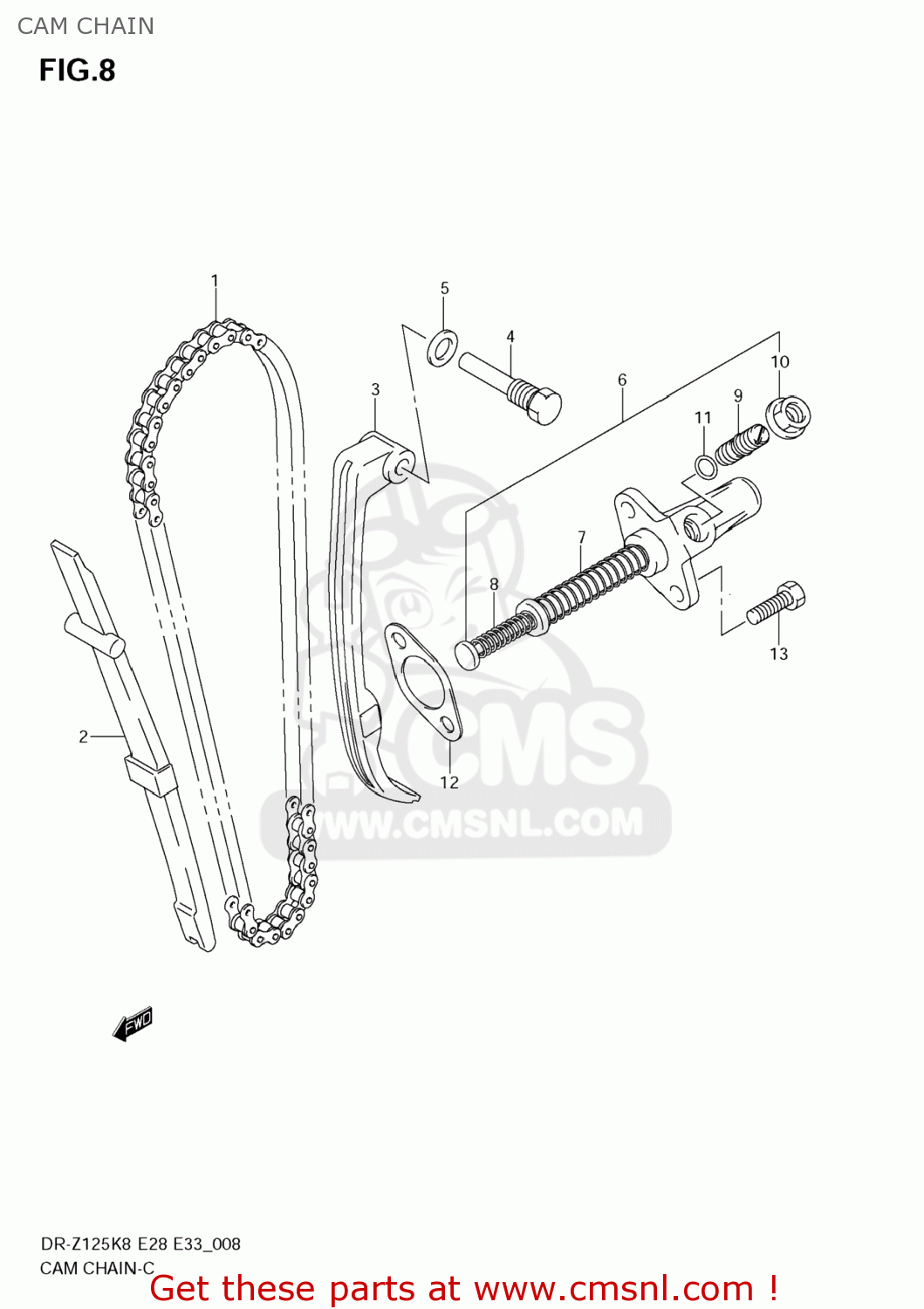

Cam chain diagram DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

1276044A00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 54.00

1277105200
ref: 2

GUIDE,CAM CHAIN

€ 20.50

1281105220
ref: 3

TENSIONER,CAM CHAIN

€ 24.50

1281232400
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

0916808016
ref: 5

GASKET(8.2X14X1) (NAS)

€ 1.00

1283005230
ref: 6

ADJUSTER ASSY,TENSIONER

€ 66.50

0944012030
ref: 7

SPRING

€ 2.00

0944008035
ref: 8

SPRING

€ 2.00

1283808G00
ref: 9

BOLT,ADJUST

€ 6.00

083161008B
ref: 10

NUT

€ 3.00

0928006005
ref: 11

O RING(D:1.9,ID:5.7)

€ 2.50

1283732410
ref: 12

GASKET,TENSIONER ADJUSTER (NAS)

€ 2.50

015000620A
ref: 13

BOLT

€ 2.00
