KICK STARTER

DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125

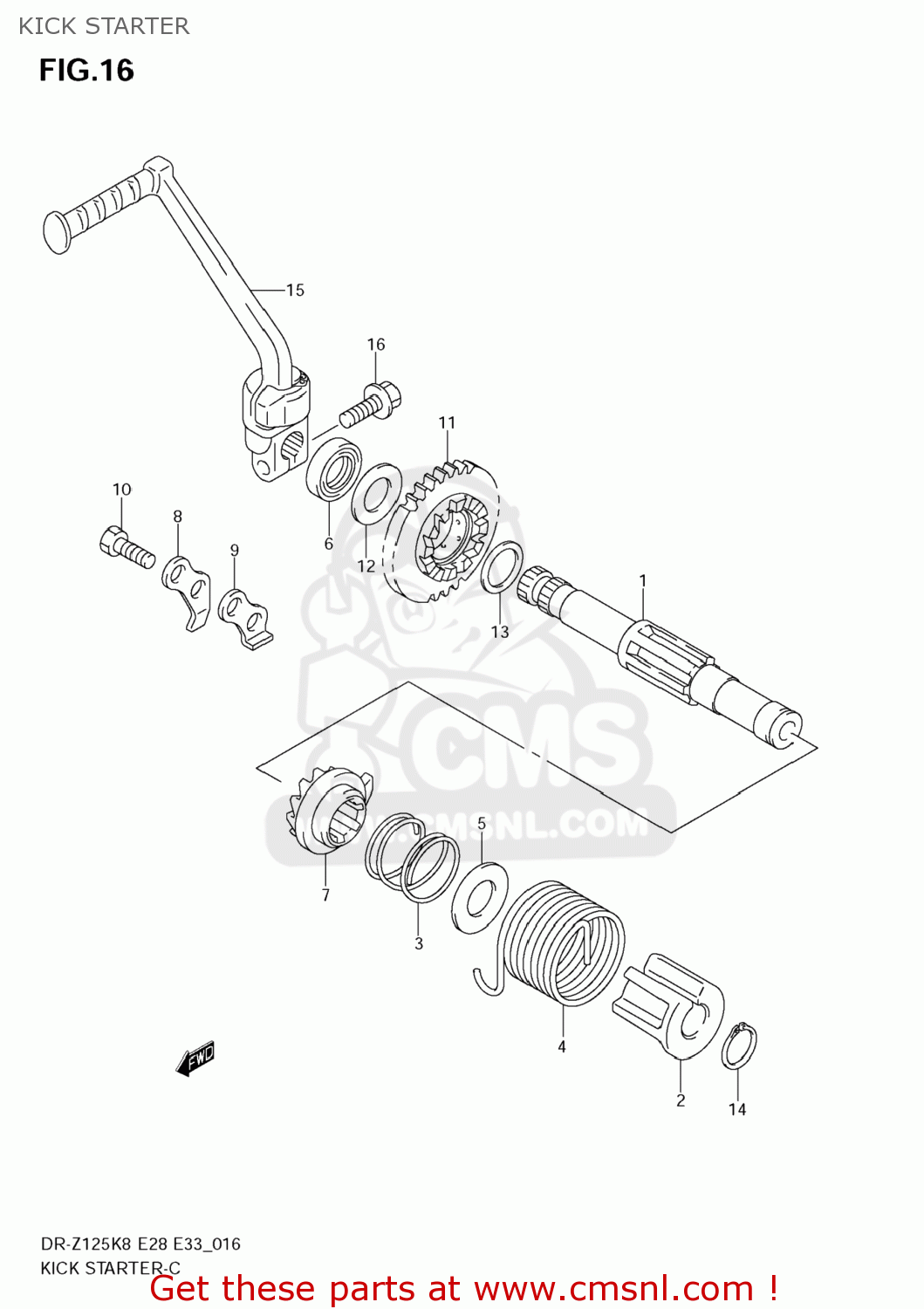

Kick starter diagram DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

2621105220
ref: 1

SHAFT,KICK STARTER

€ 66.00

2622105200
ref: 2

GUIDE,KICK STARTER SFT SPRING

€ 4.50

0944032006
ref: 3

SPRING

€ 1.50

0944845003
ref: 4

SPRING

€ 4.50

0821117341
ref: 5

WASHER

€ 2.00

0928516003
ref: 6

SEAL,OIL(16X24X5)

€ 3.00

2623138202
ref: 7

STARTER,KICK

€ 25.50

2623238200
ref: 8

GUIDE,KICK STARTER

€ 4.00

2623332400
ref: 9

STOPPER,KICK STARTER

€ 3.00

0910008240
ref: 10
09100-08299

BOLT(8X20)

€ 3.50

2624005202
ref: 11

GEAR,KICK STARTER DRIIVE

€ 54.00

0916016003
ref: 12

WASHER(16X30X1)

€ 2.50

0918120139
ref: 13

SHIM(20X26X1)

€ 2.50

083313117A
ref: 14

CIRCLIP

€ 2.00

2630042A20
ref: 15

LEVER ASSY,KICK STARTER

€ 67.50

015000825B
ref: 16

BOLT

€ 2.00
