STAND

DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125

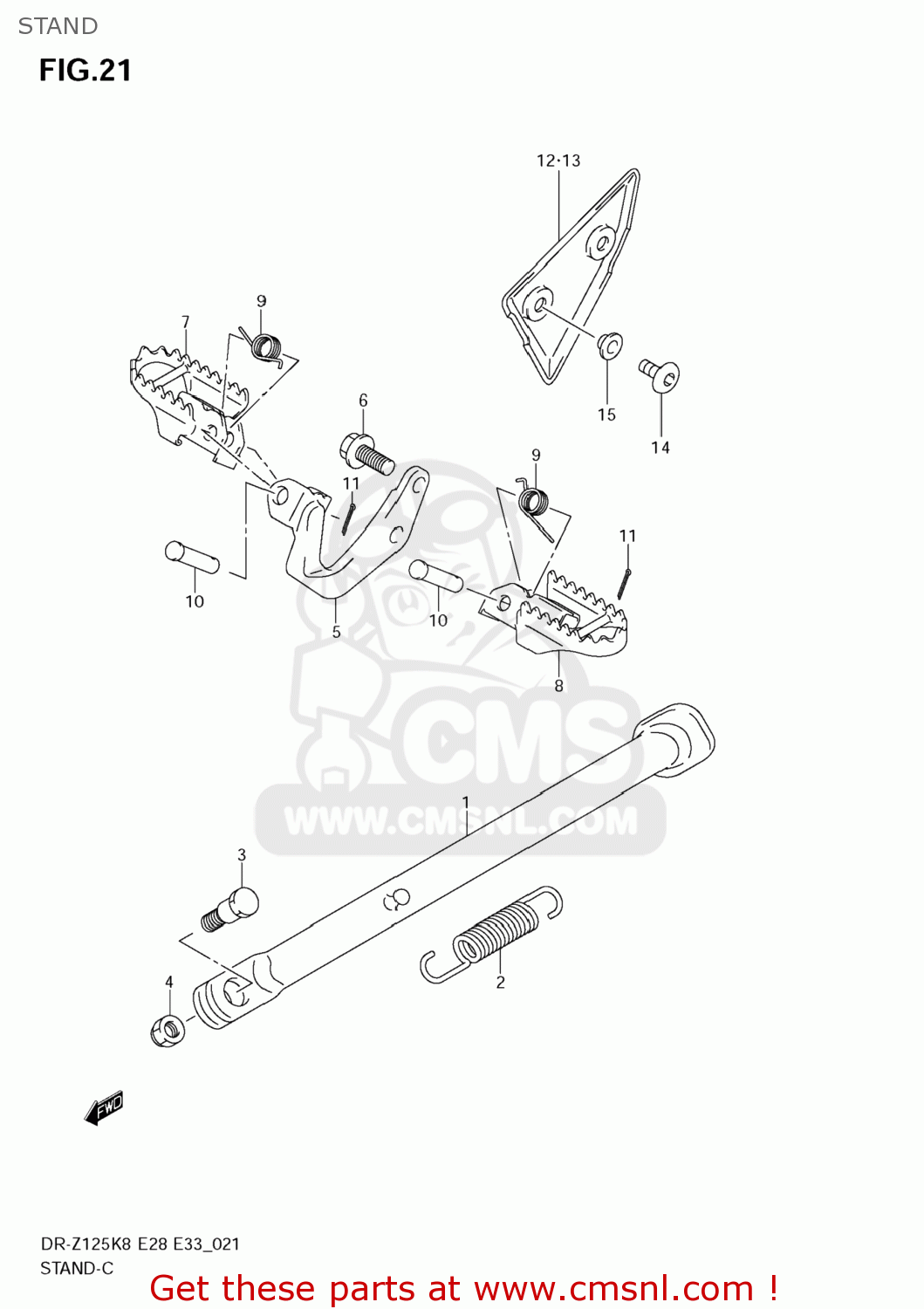

Stand diagram DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

1-1

4231008G10
ref: 1-1

STAND,PROP

€ 43.00

1-2

4231008G00
ref: 1-2

STAND,PROP

€ 43.00

0944317006
ref: 2

SPRING

€ 4.50

0911110060
ref: 3

BOLT(10X33)

€ 3.50

4232103FK0
ref: 4

NUT,PROP STAND

€ 4.50

4351008G00
ref: 5

BRACKET,FR FOOTREST,R

€ 47.50

015501025B
ref: 6

BOLT

€ 3.00

4355014D30
ref: 7
43550-03B00-019

FOOTREST,FRONT,RIGHT

€ 17.50

4356014D30
ref: 8
43560-03B00-019

FOOTREST,FRONT,LEFT

€ 17.50

0944815004
ref: 9

SPRING

€ 2.50

0920010013
ref: 10

PIN

€ 2.50

041112015A
ref: 11

PIN

€ 1.50

4357108G00
ref: 12

GUARD,FR FOOTREST,R

€ 10.50

4357208G00
ref: 13

GUARD,FR FOOTREST,L

€ 10.50

0913906115
ref: 14

SCREW(6X12)

€ 4.50

0916906071
ref: 15

WASHER

€ 2.50
