CARBURETOR

DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125

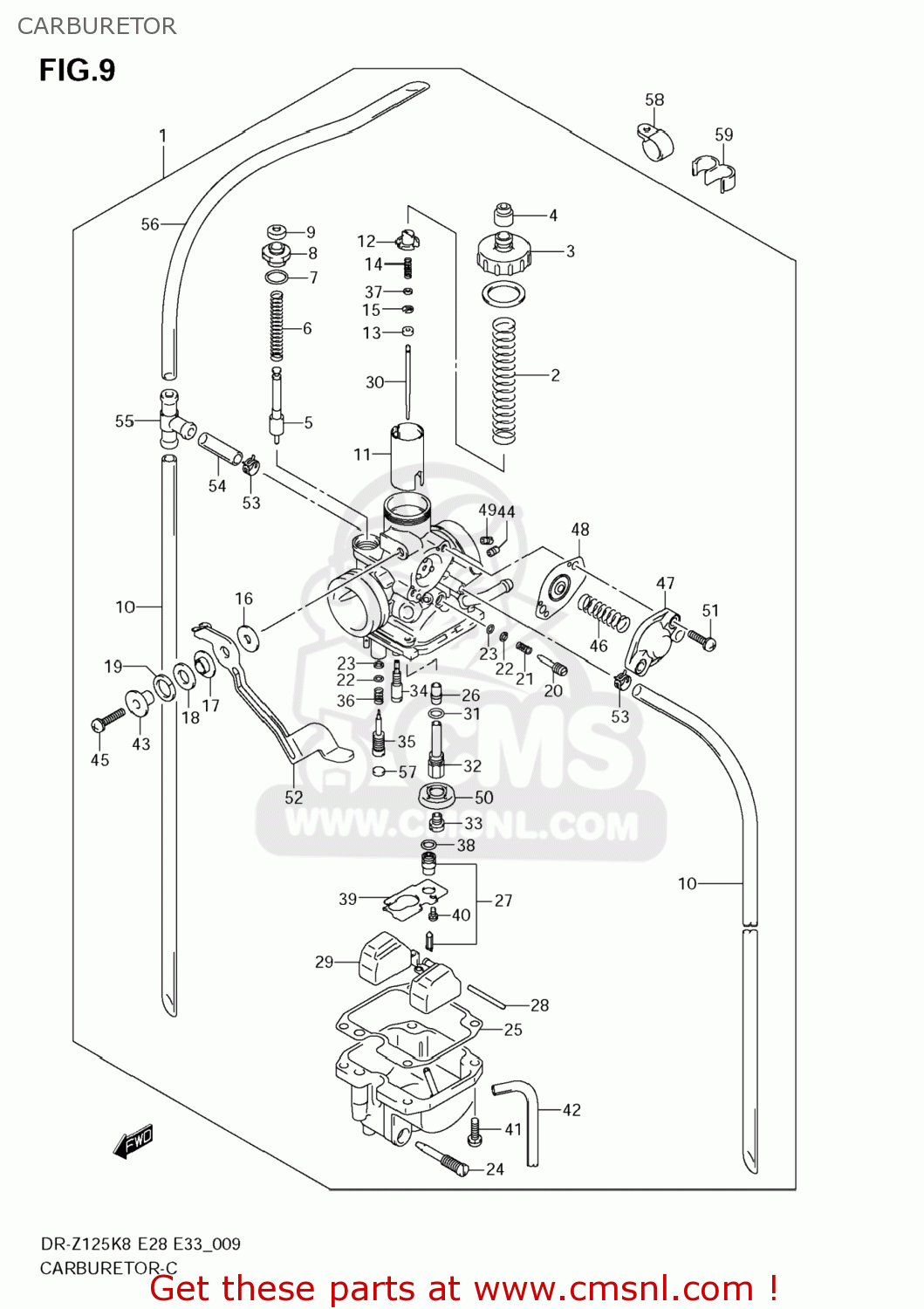

Carburetor diagram DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125

CARBURETOR DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125
CARBURETOR DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125
CARBURETOR DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125
prices are in EUR
ref
part #
description
quantity
1
1320008G00
ref: 1
CARBURETOR ASSY
€ 251.50
2
1357308G00
ref: 2
SPRING
€ 7.00
3
1326108G00
ref: 3
MIXING CAP ASSY
€ 17.50
4
1368104010
ref: 4
CAP
1368104010
€ 3.00
5
1341105320
ref: 5
PLUNGER ASSY
1341105320
€ 18.00
6
1341708G00
ref: 6
SPRING
€ 5.50
7
1327847090
ref: 7
O RING
1327847090
€ 2.00
8
1341844080
ref: 8
GUIDE SCREW,PLUNGER
1341844080
€ 8.00
9
1368231210
ref: 9
CAP,STARTER VALVE
1368231210
€ 5.00
10
1368608G20
ref: 10
HOSE(5X8X475)
€ 6.00
11
1355108G00
ref: 11
VALVE,PISTON
€ 38.50
12
1338908G00
ref: 12
HOLDER
€ 7.00
13
1338747010
ref: 13
RING
1338747010
€ 7.50
14
1348133E00
ref: 14
SPRING
1348133E00
€ 3.00
15
1339440D20
ref: 15
E RING
1339440D20
€ 4.50
16
1342105320
ref: 16
PLATE
1342105320
€ 3.00
17
1343205320
ref: 17
RING
1343205320
€ 6.00
18
1358947070
ref: 18
WASHER
1358947070
€ 3.00
19
0832101087
ref: 19
WASHER,LOCK
0832101087
€ 2.00
20
1326708G00
ref: 20
SCREW,ADJUST
€ 9.50
21
1326808G00
ref: 21
SPRING
€ 5.50
22
1329129900
ref: 22
WASHER
1329129900
€ 2.00
23
1329529900
ref: 23
O RING,PILOT AIR SCREW
1329529900
€ 4.00
24
1324708G00
ref: 24
SCREW
€ 6.00
25
1325129B00
ref: 25
GASKET (NAS)
1325129B00
€ 5.50
26
1334108G00
ref: 26
JET,NEEDLE
€ 29.00
27
1337008G00
ref: 27
VALVE ASSY,NEEDLE
1337008G00
€ 39.50
28
1325401010
ref: 28
PIN,FLOAT
1325401010
€ 3.00
29
1324008G00
ref: 29
FLOAT ASSY
1324008G00
€ 50.50
30
1338308G00
ref: 30
JET,NEEDLE(5HGM74)
€ 12.50
31
1324643010
ref: 31
O RING
1324643010
€ 4.00
32
1338508G00
ref: 32
JET,HOLDER
€ 19.00
33
0949120012
ref: 33
JET,MAIN(102.5)
0949120012
€ 8.50
34
0949217017
ref: 34
JET,PILOT(17.5)
0949217017
€ 16.50
35
1327908G00
ref: 35
ADJUSTER
€ 10.00
36
1326847070
ref: 36
SPRING
1326847070
€ 5.00
37
1338208G00
ref: 37
WASHER
€ 4.00
38
1337446710
ref: 38
O RING
1337446710
€ 4.50
39
1325929B10
ref: 39
PLATE
€ 5.50
40
1360103068
ref: 40
SCREW
€ 3.00
41
1360104148
ref: 41
SCREW
1360104148
€ 2.50
42
1368440A00
ref: 42
HOSE(3X5X650)
1368440A00
€ 7.50
43
1342405320
ref: 43
RING
1342405320
€ 8.00
44
0949385001
ref: 44
JET,AIR(85.0)
0949385001
€ 10.00
45
1360144A10
ref: 45
SCREW
€ 4.00
46
1348108G00
ref: 46
SPRING
€ 4.50
47
1350210F00
ref: 47
COVER ASSY
1350210F00
€ 26.00
48
1348010F00
ref: 48
DIAPHRAGM ASSY
1348010F00
€ 15.50
49
0949229002
ref: 49
JET,POWER(145)
€ 11.50
50
1338708G00
ref: 50
HOLDER
€ 3.50
51
1360108G00
ref: 51
SCREW
€ 3.50
52
1341308G00
ref: 52
LEVER
€ 16.50
53
1367108G00
ref: 53
CLIP
€ 5.50
54
1368608G00
ref: 54
HOSE(5X8X25)
€ 3.00
55
1368548B00
ref: 55
NIPPLE
1368548B00
€ 9.00
56
1368608G10
ref: 56
HOSE(5X8X375)
€ 6.50
57
1328105A00
ref: 57
PLUG
1328105A00
€ 3.50
58
0940322403
ref: 58
CLAMP
€ 3.00
59
0940800033
ref: 59
CLAMP
€ 2.50
