WIRING HARNESS

DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125

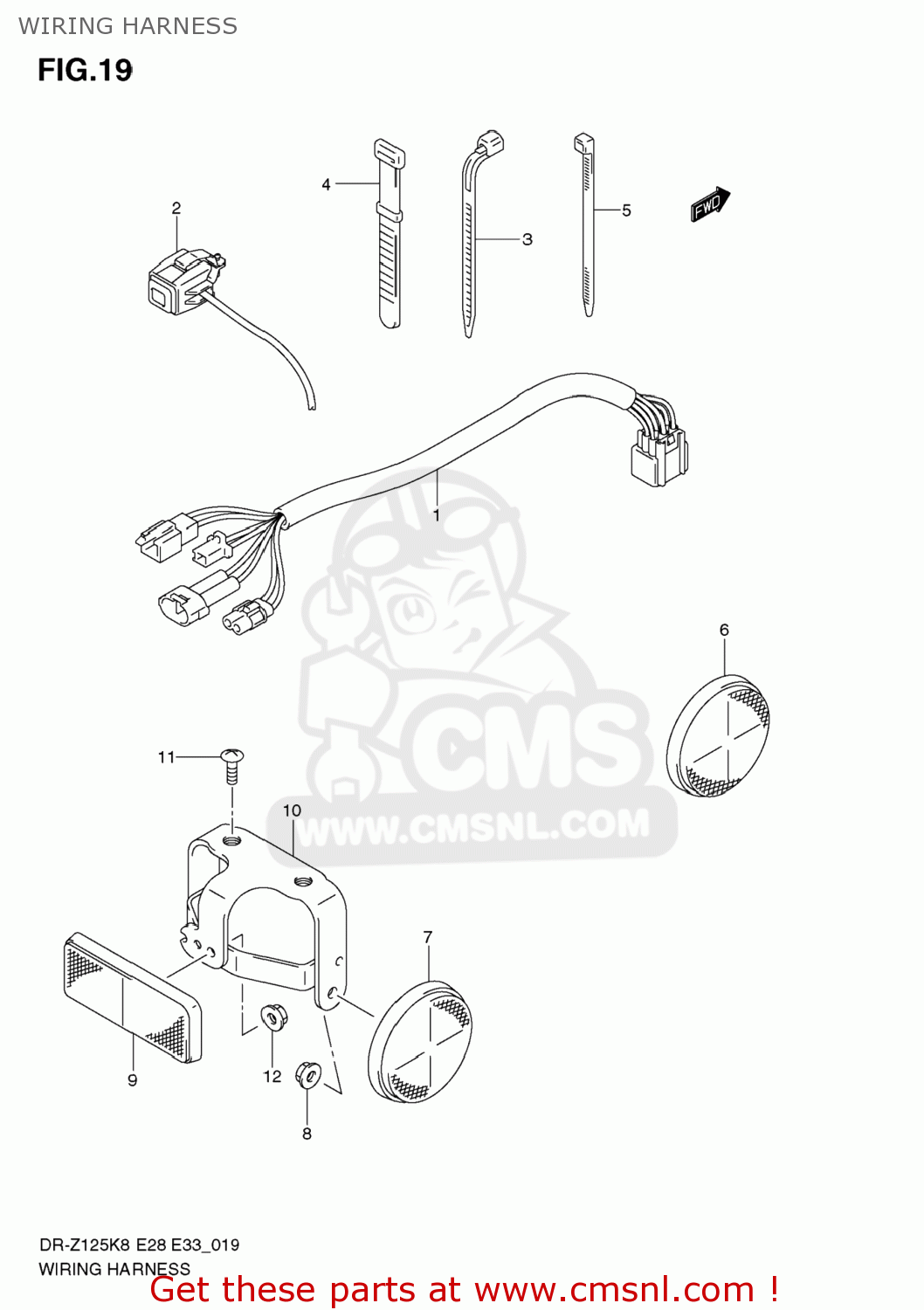

Wiring harness diagram DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

3661008G00
ref: 1

HARNESS,WIRING

€ 56.50

3782008G00
ref: 2

SWITCH ASSY,ENGINE STOP

€ 35.00

0940718402
ref: 3

CLAMP(L:165)

€ 2.50

0940712402
ref: 4

CLAMP(L:120)

€ 3.00

0940714407
ref: 5

CLAMP(L:145)

€ 4.00

3595014A10
ref: 6
35950-14A11

REFLECTOR,REFLEX

€ 11.00

3597030910
ref: 7

REFLEX REFLECTOR,RR

€ 47.50

083161005B
ref: 8

NUT

€ 2.50

3597007F01
ref: 9

REFLECTOR ASSY,RR

€ 20.50

3597408G10
ref: 10

BRACKET,SIDE & RR REFL

€ 11.50

021420612B
ref: 11

SCREW

€ 2.00

083161005B
ref: 12

NUT

€ 2.50

all assemblies
