FUEL TANK COVER (MODEL L0)

DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125

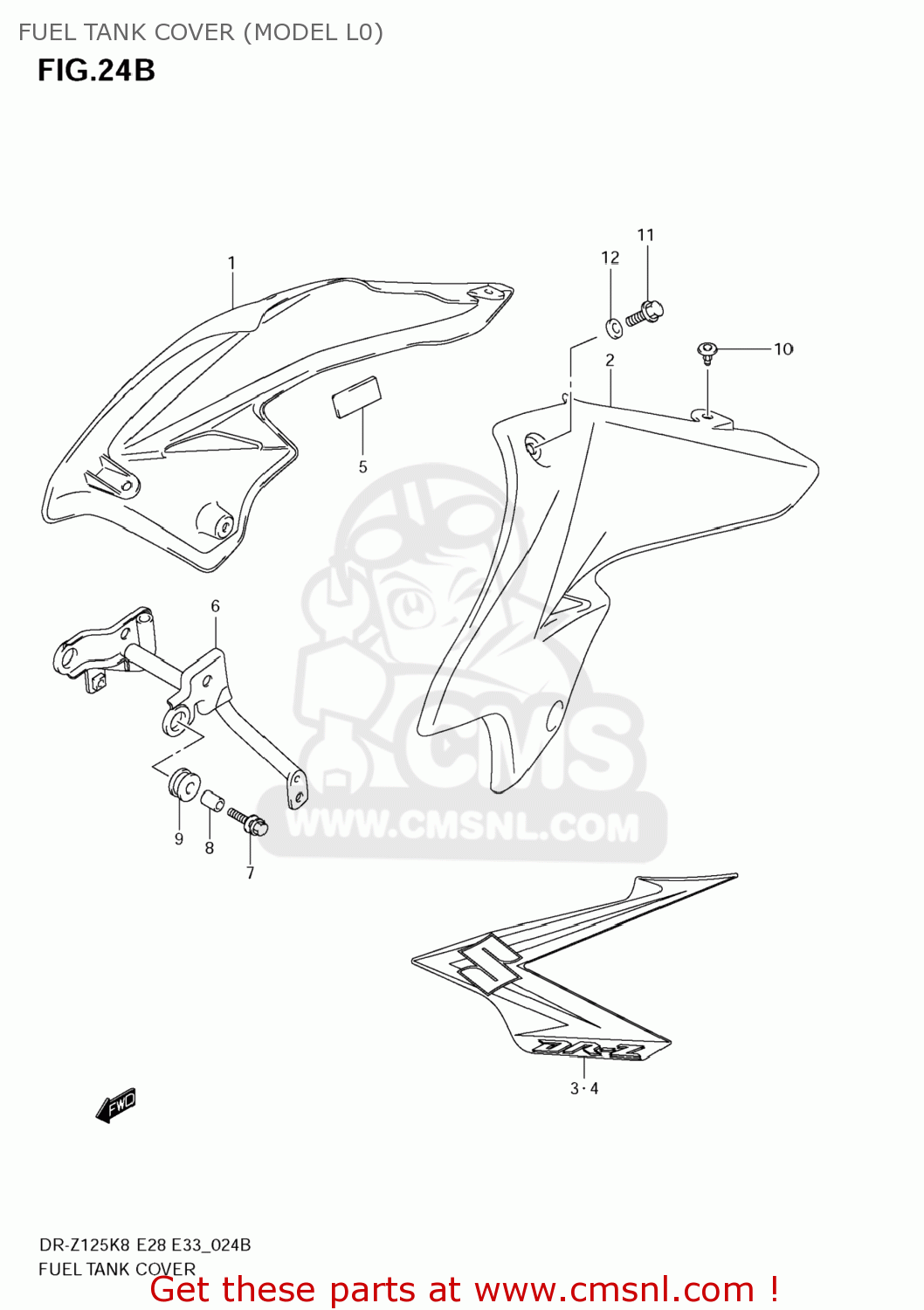

Fuel tank cover (model l0) diagram DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125

FUEL TANK COVER (MODEL L0) DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125

FUEL TANK COVER (MODEL L0) DR-Z125 2008 (K8) USA (E03) DRZ125 DR Z125

prices are in EUR

ref

part #

description

quantity

1

4427108GA0YU1
ref: 1

COVER,FUEL TANK,R

€ 26.50

2

4428108GA0YU1
ref: 2

COVER,FUEL TANK,L

€ 26.50

3

6811008G80HBP
ref: 3

TAPE SET,FUEL TANK COVER,R

€ 53.00

4

6812008G80HBP
ref: 4

TAPE SET,FUEL TANK COVER,L

€ 53.00

5

4429414H00
ref: 5

CUSHION,FUEL TANK COVER

€ 3.00

6

4416008GA0
ref: 6

BRACKET,FUEL TANK FR

€ 83.00

7

0911606186
ref: 7

BOLT(6X25)

€ 2.50

8

0918006268
ref: 8

SPACER(6.5X9X13.5)

€ 2.00

9

4451204F00
ref: 9

CUSHION,FUEL TANK SIDE

€ 3.00

10

09409083085ES
ref: 10

CLIP(BLACK)

€ 2.00

11

015470616A
ref: 11

BOLT

€ 2.00

12

0916906053
ref: 12

WASHER

€ 2.00
