CARBURETOR (MODEL Y/K1/K2)

DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

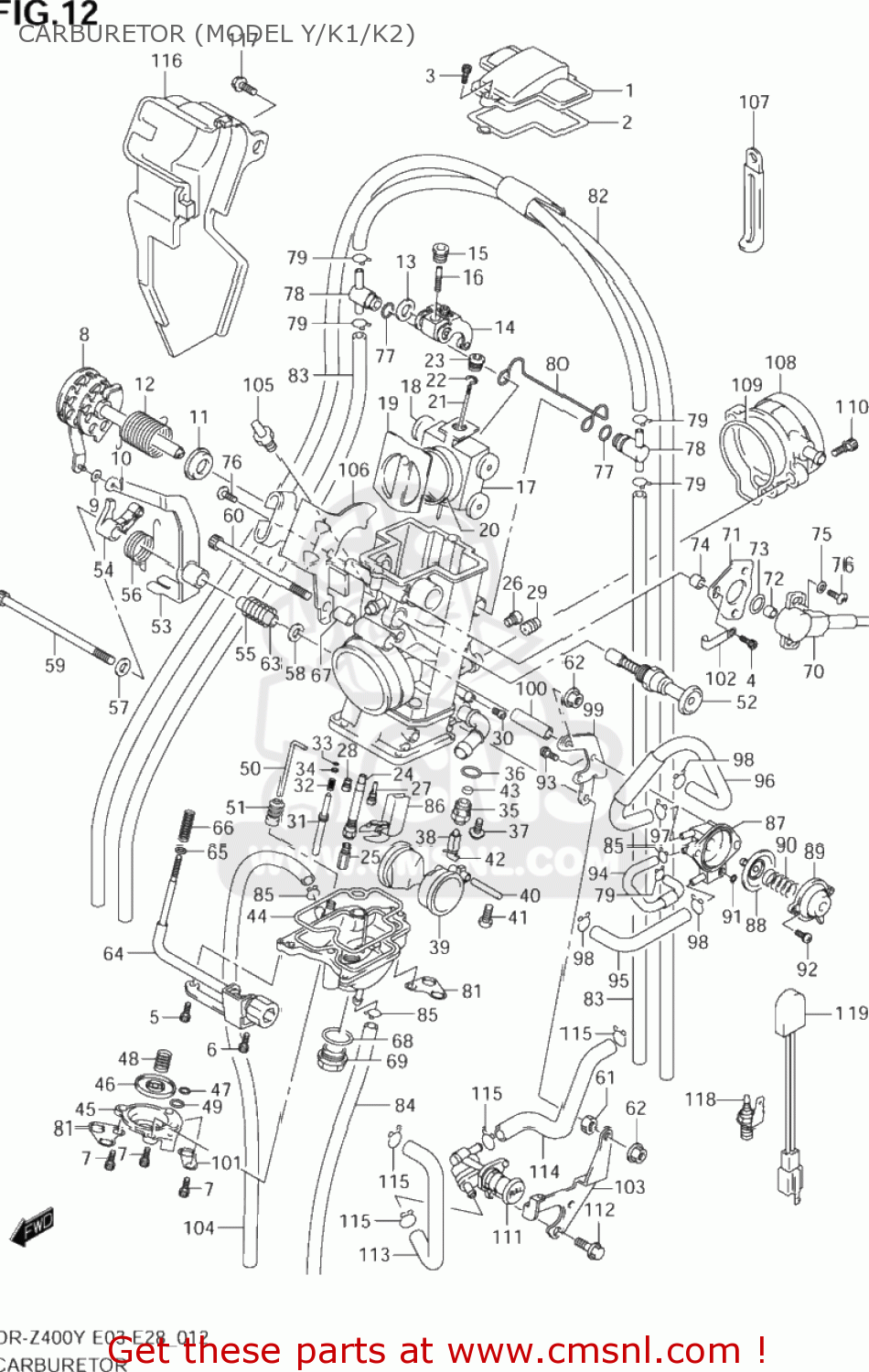

Carburetor (model y/k1/k2) diagram DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

CARBURETOR (MODEL Y/K1/K2) DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400
CARBURETOR (MODEL Y/K1/K2) DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400
CARBURETOR (MODEL Y/K1/K2) DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400
prices are in EUR
ref
part #
description
quantity

1320029F10
ref:
13200-29FF0
CARBURETOR ASSEMBLY
€ 773.50

1320029F40
ref:
13200-29FH0
CARBURETOR ASSEMBLY
€ 749.50
1
1326129F00
ref: 1
1326129F00
2
1326629F00
ref: 2
TOP WASHER
1326629F00
€ 16.00
3
1361229F10
ref: 3
1361229F10
4
1361229F10
ref: 4
1361229F10
5
1361229F10
ref: 5
1361229F10
6-1
1361229F20
ref: 6-1
BOLT(4X14)
€ 5.50
6-2
1361229F10
ref: 6-2
1361229F10
7
1361229F30
ref: 7
BOLT(4X8)
€ 4.00
8
1355029F00
ref: 8
SHAFT,THROTTLE
€ 142.50
9
1341829F00
ref: 9
WASHER
€ 2.50
10
1354429F00
ref: 10
PIN
1354429F00
€ 2.50
11
1357429F00
ref: 11
COLLAR
1357429F00
€ 7.50
12
1357329F00
ref: 12
SPRING
€ 9.00
13
1357229F00
ref: 13
WASHER
1357229F00
€ 2.50
14
1356429F00
ref: 14
1356429F00
15
1360729F00
ref: 15
NUT
1360729F00
€ 7.00
16
1360529F00
ref: 16
SCREW
1360529F00
€ 17.50
17
1355129F00
ref: 17
VALVE,THROTTLE
€ 403.50
18
1357029F00
ref: 18
BEARING
1357029F00
€ 8.00
19
1355529F00
ref: 19
VALVE
€ 198.00
20
1355929F00
ref: 20
LIP SEAL
1355929F00
€ 17.00
21
1338329F00
ref: 21
NEEDLE,JET
1338329F00
€ 14.00
22
1339429F00
ref: 22
1339429F00
23
1360529F10
ref: 23
SCREW,NEEDLE SET
1360529F10
€ 15.50
24
1334229F00
ref: 24
MAIN NOZZLE
1334229F00
€ 38.50
25
0949128020
ref: 25
JET,MAIN(142)
€ 9.00
26
0949140014
ref: 26
JET,MAIN AIR(200)
0949140014
€ 11.50
27
0949245038
ref: 27
JET,SLOW(45)
0949245038
€ 11.50
28
0949265009
ref: 28
JET,STARTER(65)
0949265009
€ 11.50
29
0949160012
ref: 29
JET,SLOW AIR(60)
0949160012
€ 11.50
30
0949390009
ref: 30
JET,AIR(90)
€ 10.50
31
1327929F00
ref: 31
SCREW,ADJUST
1327929F00
€ 7.50
32
1327129F00
ref: 32
SPRING
1327129F00
€ 3.00
33
1329526E00
ref: 33
O RING
1329526E00
€ 4.50
34
1329126E00
ref: 34
WASHER
1329126E00
€ 3.00
35
1337129F00
ref: 35
VALVE SEAT
1337129F00
€ 21.50
36
1337429F00
ref: 36
O RING
1337429F00
€ 3.00
37
1360129F00
ref: 37
1360129F00
38
1337029F00
ref: 38
VALVE,FLOAT
1337029F00
€ 36.00
39
1325029F00
ref: 39
FLOAT
1325029F00
€ 44.00
40
1325426E00
ref: 40
1325426E00
41
1360243E00
ref: 41
1360243E00
42
1337526E00
ref: 42
CLIP
1337526E00
€ 5.50
43
1516524F00
ref: 43
SCREEN,FUEL STRAINER
1516524F00
€ 6.50
44
1325129F00
ref: 44
PACKING (NAS)
1325129F00
€ 24.00
45
1348829F00
ref: 45
COVER
€ 22.50
46
1349129F00
ref: 46
DIAPHRAGM
1349129F00
€ 25.00
47
1349714F00
ref: 47
U RING
1349714F00
€ 2.50
48
1349415F00
ref: 48
SPRING
1349415F00
€ 3.00
49
1367326E10
ref: 49
O RING
1367326E10
€ 4.50
50
1348729F00
ref: 50
ROD
1348729F00
€ 15.50
51
1349929F00
ref: 51
CAP
1349929F00
€ 3.50
52
1341029F00
ref: 52
1341029F00
53
1349029F00
ref: 53
1349029F00
54
1349029F10
ref: 54
LINK LEVER
1349029F10
€ 11.50
55
1349429F00
ref: 55
SPRING
€ 7.50
56
1349429F10
ref: 56
SPRING
€ 8.50
57
1361529F00
ref: 57
WASHER
1361529F00
€ 2.50
58
1358229F00
ref: 58
COLLAR
€ 2.50
59
1361229F40
ref: 59
BOLT
€ 0.00
60-1
1361229F50
ref: 60-1
BOLT
1361229F50
€ 11.50
60-2
1361229F40
ref: 60-2
BOLT
€ 0.00
61
1360729F10
ref: 61
NUT
€ 0.00
62
1360724F00
ref: 62
NUT
€ 2.00
63
1358229F10
ref: 63
COLLAR
€ 12.50
64
1327029F00
ref: 64
SCREW,STOP
1327029F00
€ 41.00
65
1342726E00
ref: 65
1342726E00
66
1327126EA0
ref: 66
1327126EA0
67
1358229F20
ref: 67
COLLAR
€ 9.50
68
1324629F00
ref: 68
1324629F00
69
1324729F00
ref: 69
BOLT
1324729F00
€ 40.00
70
1358029F00
ref: 70
SENSOR,THROTTLE
€ 163.00
71
1362729F00
ref: 71
PLATE
€ 39.00
72
1358224F00
ref: 72
COLLAR
€ 6.50
73
1357503F00
ref: 73
O RING
1357503F00
€ 3.50
74
1358229F30
ref: 74
COLLAR
1358229F30
€ 5.50
75
1357214F00
ref: 75
1357214F00
76
1361229F00
ref: 76
1361229F00
77
1367326E00
ref: 77
O RING
1367326E00
€ 4.50
78
1368729F00
ref: 78
JOINT
1368729F00
€ 11.50
79
0940106101
ref: 79
0940106101
80
1369229F00
ref: 80
CLIP
1369229F00
€ 16.00
81
1369336E00
ref: 81
PLATE
1369336E00
€ 4.50
82
1368029F00
ref: 82
PIPE
€ 52.00
83
1368629F00
ref: 83
PIPE
€ 14.50
84
1368429F00
ref: 84
PIPE,RUBBER
€ 11.00
85
0940105402
ref: 85
09401-05402-XC0
CLIP
€ 1.00
86
1325729F00
ref: 86
PLATE
1325729F00
€ 25.00
87
1348429F00
ref: 87
BODY,DIAPHRAGM
1348429F00
€ 37.00
88
1348029F00
ref: 88
DIAPHRAGM
1348029F00
€ 30.00
89
1348429F10
ref: 89
COVER
€ 21.50
90
1348129F00
ref: 90
1348129F00
91
1348615F00
ref: 91
U RING
1348615F00
€ 2.00
92
1360115F20
ref: 92
SCREW
1360115F20
€ 2.50
93
0211234083
ref: 93
02112-3408A
SCREW
€ 2.00
94
1368029F10
ref: 94
PIPE,RUBBER
€ 22.00
95
1368129F00
ref: 95
PIPE,RUBBER
1368129F00
€ 7.50
96
1368029F20
ref: 96
1368029F20
97
0940107101
ref: 97
CLIP
0940107101
€ 2.50
98
1367129F00
ref: 98
1367129F00
99
1362829F00
ref: 99
PLATE,STAY
€ 25.50
100
1358229F40
ref: 100
COLLAR
€ 10.50
101
1369328E00
ref: 101
PLATE
1369328E00
€ 4.50
102
1343229F00
ref: 102
BINDER
1343229F00
€ 10.50
103
1362929F00
ref: 103
PLATE,STAY
€ 24.00
104
1368329F00
ref: 104
PIPE
€ 14.00
105
1329629F00
ref: 105
SCREW,STOP
€ 16.50
106
1362129F00
ref: 106
13621-29F10
PLATE,STAY
€ 48.50
107-1
0940406432
ref: 107-1
CLAMP(L:65)
0940406432
€ 2.50
107-2
0940408420
ref: 107-2
CLAMP(L:120 T:1.0)
0940408420
€ 3.50
108
1367029F00
ref: 108
1367029F00
109
1327829F00
ref: 109
O RING,AIR CLNR JOINT
1327829F00
€ 6.50
110
0713005123
ref: 110
07130-0512B
BOLT
€ 2.50
111
1344029F00
ref: 111
1344029F00
112
0154706163
ref: 112
01547-0616B
BOLT
0154706163
€ 2.50
113
1369729F00
ref: 113
HOSE,STARTER TO HEAD
€ 6.50
114
1369729F10
ref: 114
HOSE,STARTER TO AIR CLEANER
€ 7.00
115
0940108401
ref: 115
CLIP
0940108401
€ 1.50
116
1331129F00
ref: 116
COVER,CARBURETOR
1331129F00
€ 16.50
117
6316143E00
ref: 117
BOLT
6316143E00
€ 3.00
118
1365025E01
ref: 118
HEATER ASSY,CARBURETOR(15W)
1365025E01
€ 35.00
119
1365516F00
ref: 119
THERMO SWITCH,CARB HEATER
1365516F00
€ 41.00
