FUEL TANK (MODEL K2)

DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

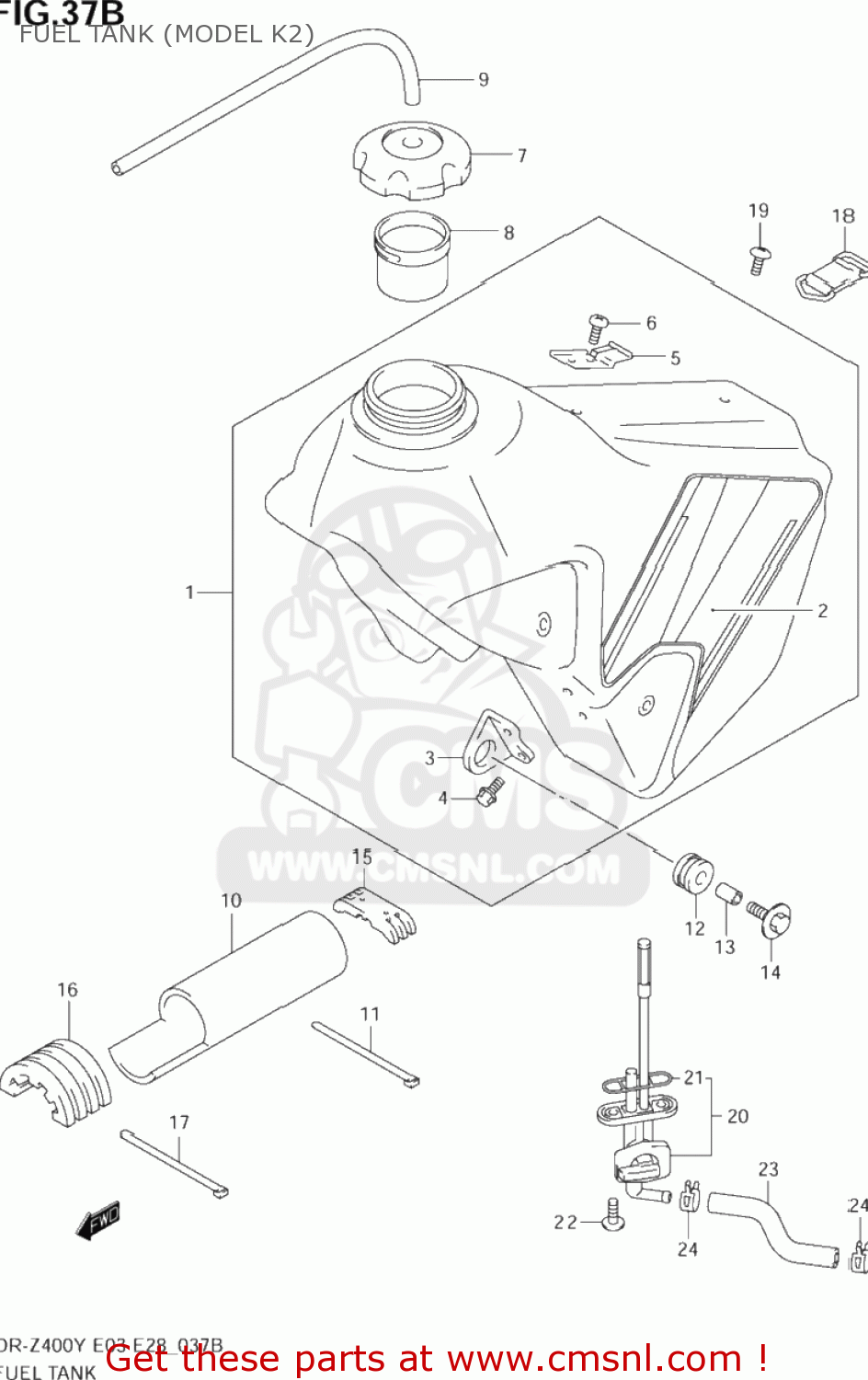

Fuel tank (model k2) diagram DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

FUEL TANK (MODEL K2) DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

FUEL TANK (MODEL K2) DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

prices are in EUR

ref

part #

description

quantity

1

4410029F60YR1
ref: 1
44100-29F60-YU1

FUEL TANK ASSY

€ 540.00

2

6811029F40GY6
ref: 2

TAPE SET,FUEL TANK

€ 140.50

3

4413127C01
ref: 3

BRACKET,FUEL TANK FR

€ 6.50

4

0154706123
ref: 4
01547-0612B

BOLT

€ 2.00

5

4413244E01
ref: 5

HOOK,SEAT FR

€ 5.50

6

0214206123
ref: 6
02142-0612A

SCREW 6X12

€ 2.00

7

4420029F00
ref: 7

CAP ASSY,FUEL TANK FILLER

€ 42.50

8

4419919A00
ref: 8

TUBE,FILLER INLET

€ 4.00

9

0935250823600
ref: 9
44420-44AR0

HOSE(5X8.2X600)

€ 13.00

10

4419429F00
ref: 10

SHIELD,FUEL TANK

€ 38.50

11

0940730402
ref: 11

CLAMP(L:300)

€ 3.50

12

1476201B01
ref: 12

CUSHION,MUFFLER

€ 3.00

13

0918006268
ref: 13

SPACER(6.5X9X13.5)

€ 2.00

14

0911806112
ref: 14

BOLT(6X30)

€ 3.00

15

4454229F00
ref: 15

CUSHION,FUEL TANK RR

€ 14.00

16

4454129F00
ref: 16

CUSHION,FUEL TANK

€ 21.50

17

0940730402
ref: 17

CLAMP(L:300)

€ 3.50

18

4456044E00
ref: 18

BAND,FUEL TANK RR

€ 8.50

19

0214206163
ref: 19
02142-0616A

SCREW

€ 2.50

20

4430029F10
ref: 20

COCK ASSY,FUEL

€ 80.50

21

4434887420
ref: 21

GASKET,JOINT (NAS)

€ 5.00

22

0154706163
ref: 22
01547-0616B

BOLT

€ 2.50

23

4442129F00
ref: 23
44421-29FR0

HOSE,FUEL

€ 7.50

24

0940111413
ref: 24

CLIP

€ 2.50
