CYLINDER HEAD

DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

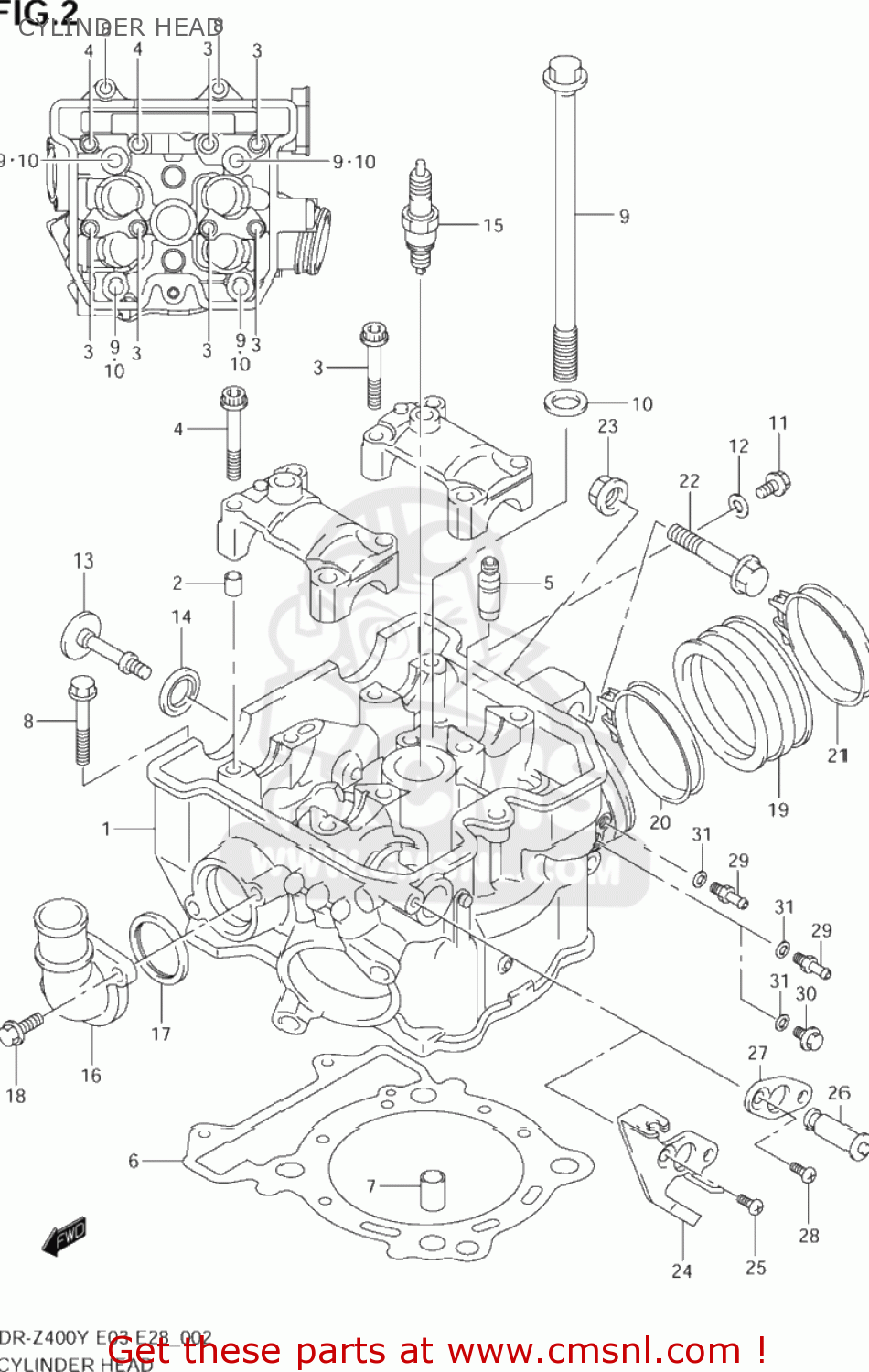

Cylinder head diagram DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

CYLINDER HEAD DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400
CYLINDER HEAD DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400
CYLINDER HEAD DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400
prices are in EUR
ref
part #
description
quantity
1-1
1110029F00
ref: 1-1
11100-29F01
HEAD ASSEMBLY,CYLINDER
€ 990.50
1-2
1110029F01
ref: 1-2
HEAD ASSY,CYLINDER
1110029F01
€ 990.50
2
0920608001
ref: 2
PIN(6.2X8X11)
0920608001
€ 2.00
3
0712006403
ref: 3
07120-0640B
BOLT
0712006403
€ 3.50
4
0712006453
ref: 4
07120-0645B
06453
€ 3.50
5
1111520E70
ref: 5
GUIDE,VALVE
1111520E70
€ 19.00
6
1114129F01
ref: 6
GASKET,CYLINDER HEAD (NAS)
1114129F01
€ 34.00
7
0421113189
ref: 7
PIN
0421113189
€ 2.50
8
0910306504
ref: 8
BOLT(6X39)
0910306504
€ 3.50
9
0910310276
ref: 9
BOLT(10X175)
0910310276
€ 13.50
10
0916010082
ref: 10
WASHER(10.5X19X2)
0916010082
€ 2.00
11
0155006103
ref: 11
01550-0610A
BOLT
0155006103
€ 2.50
12
0916806023
ref: 12
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
13
1116133E00
ref: 13
BOLT,CYL HEAD SIDE FACE
1116133E00
€ 8.00
14
1119113E00
ref: 14
WASHER,HEAD COVER
1119113E00
€ 4.00
15-1
0948200456
ref: 15-1
PLUG,SPARK(CR8E)
0948200456
€ 7.00
15-2
0948200457
ref: 15-2
PLUG,SPARK(U24ESR-N)
0948200457
€ 7.00
15-3
0948200516
ref: 15-3
PLUG,SPARK(CR7E)
0948200516
€ 8.50
15-4
0948200458
ref: 15-4
PLUG,SPARK(NGK CR9E)
0948200458
€ 8.50
15-5
0948200460
ref: 15-5
PLUG,SPARK(CR10E)
0948200460
€ 8.50
15-6
0948200515
ref: 15-6
PLUG,SPARK(U22ESR-N)
€ 8.50
15-7
0948200459
ref: 15-7
PLUG,SPARK(U27ESR-N)
0948200459
€ 8.50
15-8
0948200461
ref: 15-8
PLUG,SPARK(U31ESR-N)
€ 8.50
16
1766129F00
ref: 16
COVER,THERMOSTAT
1766129F00
€ 25.50
17
1766430B00
ref: 17
SEAL,THERMOSTAT COVER
1766430B00
€ 41.00
18
0154706163
ref: 18
01547-0616B
BOLT
0154706163
€ 2.50
19-1
1311129F00
ref: 19-1
PIPE,INTAKE
1311129F00
€ 18.50
19-2
1311129F20
ref: 19-2
PIPE,INTAKE
€ 0.00
20
0940258208
ref: 20
CLAMP
0940258208
€ 5.50
21
0940258208
ref: 21
CLAMP
0940258208
€ 5.50
22
0910310235
ref: 22
BOLT(10X50)
0910310235
€ 4.50
23
0915910058
ref: 23
09159-10115
NUT
0915910058
€ 4.00
24
1294429F00
ref: 24
HOLDER,DECOMP CABLE
1294429F00
€ 9.50
25
0212206123
ref: 25
02122-0612A
SCREW
0212206123
€ 3.00
26
1294529F00
ref: 26
PLUG,DECOMP SHAFT HOLE
1294529F00
€ 13.50
27
1294329F00
ref: 27
RETAINER,DECOMP SHAFT SEAL
1294329F00
€ 4.50
28
0212206123
ref: 28
02122-0612A
SCREW
0212206123
€ 3.00
29-1
1368529F00
ref: 29-1
UNION,INTAKE PORT
1368529F00
€ 8.50
29-2
1368529F00
ref: 29-2
UNION,INTAKE PORT
1368529F00
€ 8.50
30
0910308335
ref: 30
09103-08421
BOLT
0910308335
€ 3.00
31
0916808016
ref: 31
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
