CYLINDER
DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

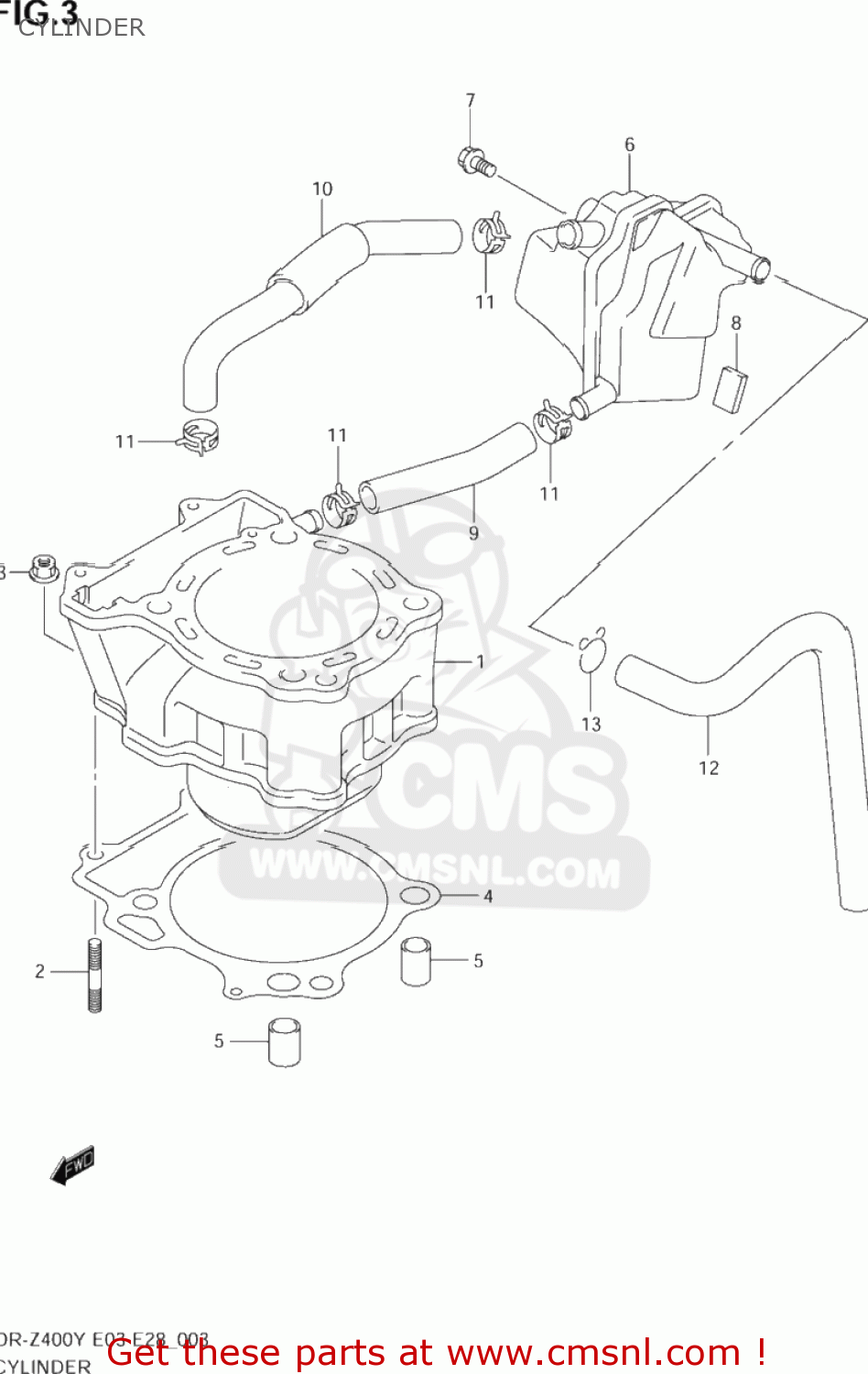

Cylinder diagram DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400
CYLINDER DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400
×
prices are in EUR
ref
part #
description
quantity
1-1
1121029F110F0
ref: 1-1
11210-29F20-0F0
CYLINDER COMP
€ 467.00
1-2
1121029F200F0
ref: 1-2
CYLINDER
€ 467.00
2
0142106253
ref: 2
01421-0625A
STUD BOLT
€ 2.00
3
0831610063
ref: 3
08316-1006B
NUT
€ 2.50
4
1124129F00
ref: 4
GASKET,CYLINDER (NAS)
€ 11.00
5
0421113189
ref: 5
PIN
€ 2.50
6
1133029F00
ref: 6
TANK,OIL RETURN
€ 35.00
7
0154706103
ref: 7
01547-0610B
BOLT
€ 3.00
8
3365137000
ref: 8
PROTECTOR(170X95X3.0)
€ 5.00
9
1133229F00
ref: 9
HOSE,BREATHER
€ 9.00
10
1133329F00
ref: 10
HOSE,BREATHER
€ 17.00
11
0940115404
ref: 11
CLIP
€ 2.50
12
1133429F00
ref: 12
HOSE,BREATHER
€ 18.00
13
0940115101
ref: 13
CLIP
€ 2.00
