REAR CUSHION LEVER

DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

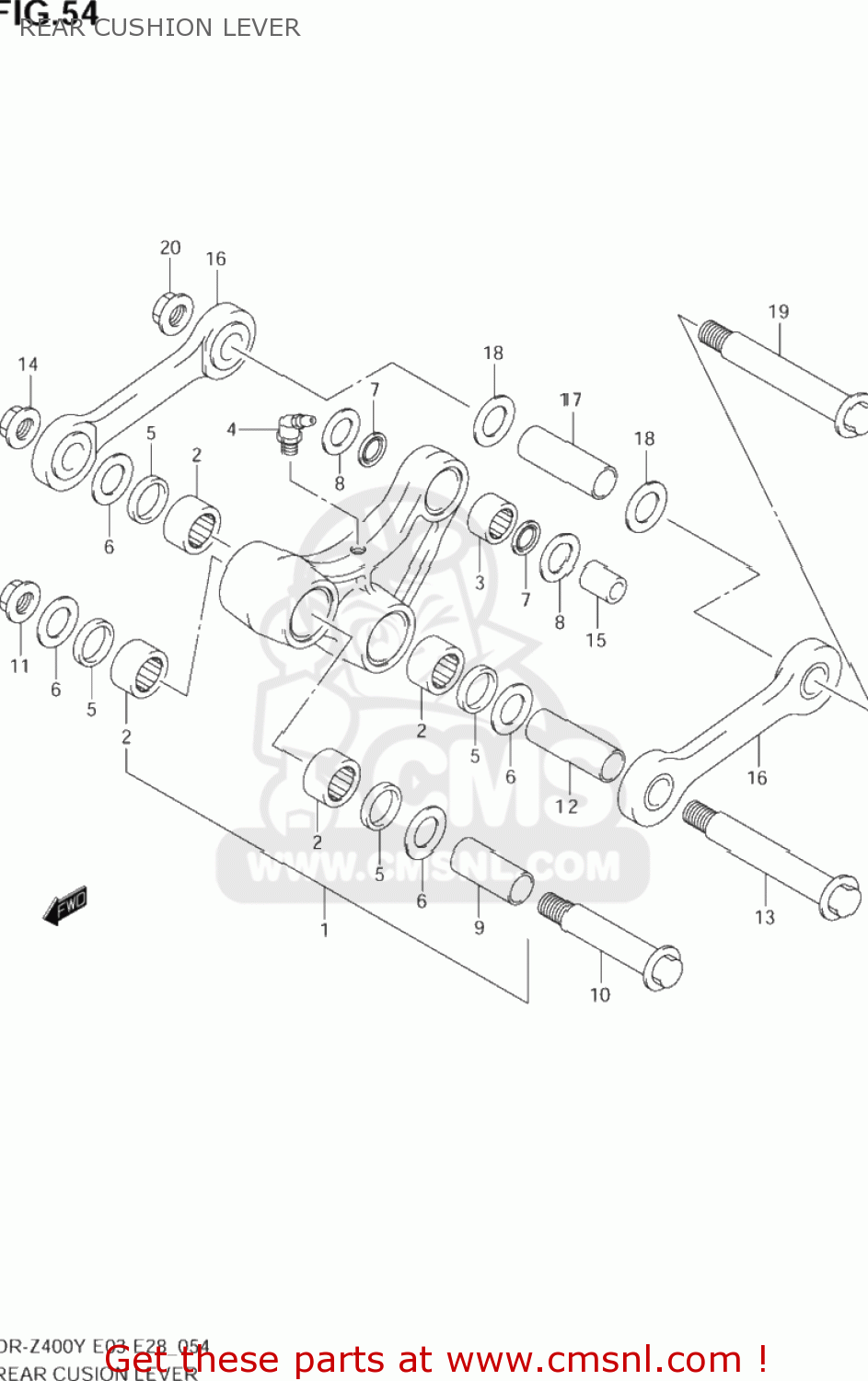

Rear cushion lever diagram DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

REAR CUSHION LEVER DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

REAR CUSHION LEVER DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

prices are in EUR

ref

part #

description

quantity

1

6260029820
ref: 1
62600-29821

LEVER SET,REAR CUSHION

€ 358.00

2

0926320086
ref: 2

BEARING(20X27X15)

€ 12.50

3

0926316033
ref: 3

BEARING(16X22X12)

€ 19.00

4

0835131008
ref: 4
08351-3100A

NIPPLE,GREASE

€ 10.50

5

6262414500
ref: 5

SEAL,CUSHION LEVER DUST

€ 3.50

6

6264737E00
ref: 6

WASHER,THRUST SWINGARM RR

€ 3.00

7

0928416005
ref: 7

SEAL,OIL(16X22X2.5)

€ 5.50

8

6268537E00
ref: 8

WASHER,THRUST LVR CUSHION RR

€ 3.00

9

6231737E10
ref: 9

SPACER,CUSHION LEVER FR

€ 12.00

10

6265837E01
ref: 10

BOLT,RR CUSHION LEVER FR

€ 10.00

11

0915912056
ref: 11

NUT

€ 7.00

12

6264637E10
ref: 12

SPACER,RR CUSHION

€ 12.50

13

6262137E01
ref: 13

BOLT,RR CUSHION

€ 9.00

14

0915912056
ref: 14

NUT

€ 7.00

15

6268436E10
ref: 15

SPACER,RR CUSHION LEVER RR

€ 7.50

16

6264037E11
ref: 16

ROD SET,RR CUSHION

€ 116.50

17

6264637E10
ref: 17

SPACER,RR CUSHION

€ 12.50

18

6264737E00
ref: 18

WASHER,THRUST SWINGARM RR

€ 3.00

19

6262137E01
ref: 19

BOLT,RR CUSHION

€ 9.00

20

0915912056
ref: 20

NUT

€ 7.00
