CRANKCASE

DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

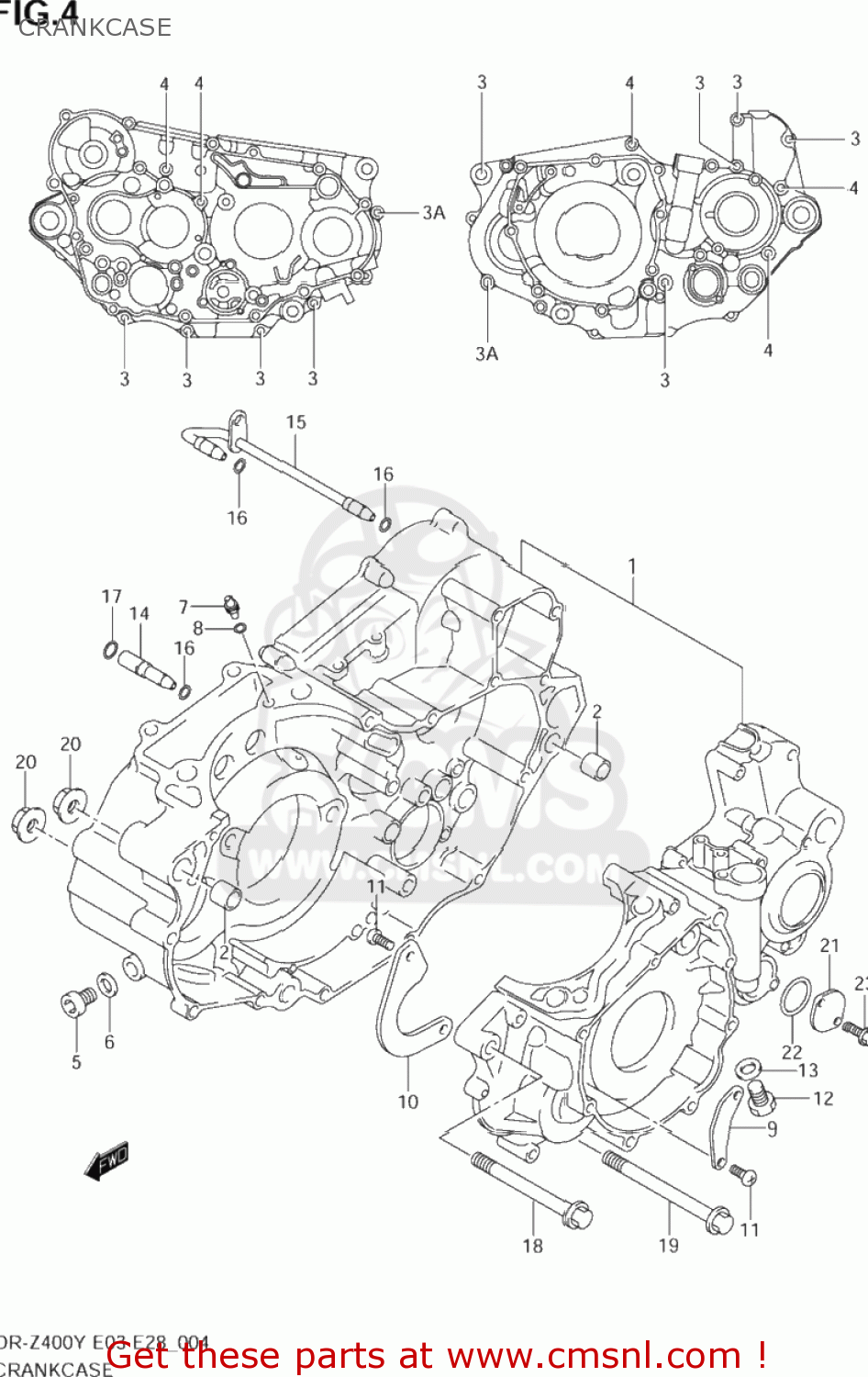

Crankcase diagram DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

CRANKCASE DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

CRANKCASE DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

prices are in EUR

ref

part #

description

quantity

1

1130129851
ref: 1
11301-29853

CRANKCASE SET

€ 835.00

2

0421113189
ref: 2

PIN

€ 2.50

3

0154706403
ref: 3
01547-0640B

BOLT

€ 3.00

3A

0154706553
ref: 3A
01547-0655B

BOLT

€ 3.00

4

0154706703
ref: 4
01547-0670B

BOLT

€ 3.00

5

0924810010
ref: 5

PLUG(10X10)

€ 4.00

6

0916810002
ref: 6

GASKET(10X14X3.6) (NAS)

€ 2.00

7

0949380005
ref: 7

JET(8)

€ 12.00

8

0928004004
ref: 8

O RING(D:1.2,ID:4)

€ 2.00

9

1132329F00
ref: 9

SEPARATOR,CRANKCASE OIL NO.1

€ 2.00

10

1132429F00
ref: 10

SEPARATOR,CRANKCASE OIL NO.2

€ 3.50

11

0912506086
ref: 11

SCREW(6X12)

€ 2.00

12

0924712011
ref: 12

PLUG(12X20)

€ 4.50

13

0916812002
ref: 13

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

14

1145129F00
ref: 14

PIPE,OIL INNER NO.1

€ 14.50

15

1146029F00
ref: 15

PIPE,T/M OIL INNER NO.2

€ 51.00

16

0928005004
ref: 16

O RING(D:1.9,ID:4.8)

€ 2.00

17

0928007004
ref: 17

O RING(D:1.9,ID:6.8)

€ 1.50

18

0910310110
ref: 18

BOLT(10X100)

€ 6.50

19

0910310063
ref: 19

BOLT(10X115)

€ 5.00

20

0915910058
ref: 20
09159-10115

NUT

€ 4.00

21

1145146000
ref: 21

CAP,GEAR SHIFT CAM PIVOT

€ 2.50

22

0928026005
ref: 22

O RING(D:2.4,ID:26.2)

€ 2.50

23

0154705103
ref: 23
01547-0510B

BOLT

€ 2.50
