Buy Suzuki unknown Parts Online


FRONT MASTER CYLINDER

DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

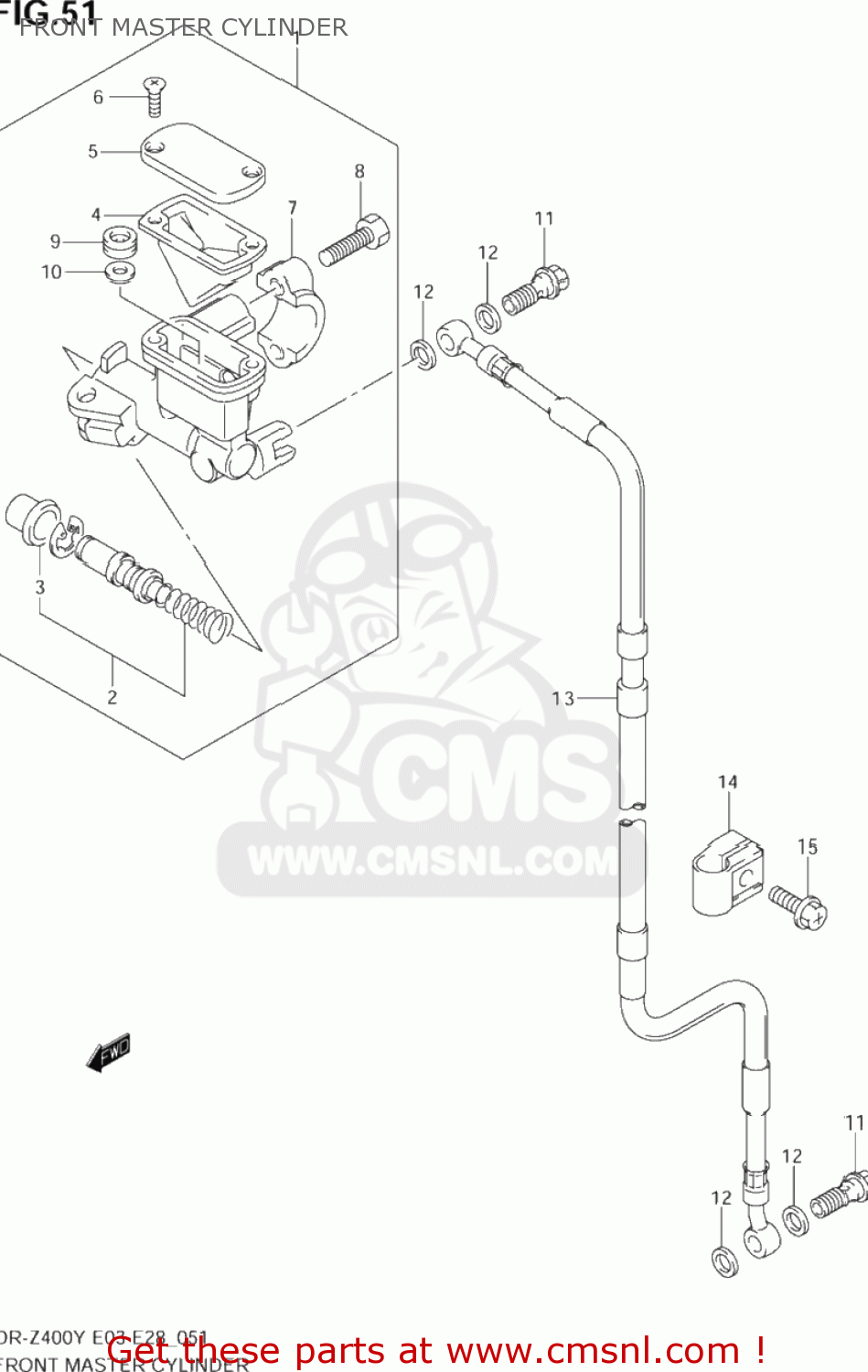

Front master cylinder diagram DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400

FRONT MASTER CYLINDER DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400
FRONT MASTER CYLINDER DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400
FRONT MASTER CYLINDER DR-Z400 2000 (Y) USA (E03) DRZ400 DR Z400
prices are in EUR
ref
part #
description
quantity
1
5960036E10
ref: 1
CYLINDER ASSY,FR MASTER
5960036E10
€ 252.50
1
5960036E10
ref: 1
CYLINDER ASSY,FR MASTER
5960036E10
€ 252.50
2
5960036830
ref: 2
PISTON & CUP SET
5960036830
€ 44.00
3
5966636E00
ref: 3
BOOT
5966636E00
€ 43.00
4
5966736E00
ref: 4
DIAPHRAGM
5966736E00
€ 9.00
5
5966936E10
ref: 5
CAP
5966936E10
€ 15.00
6
6968949300
ref: 6
SCREW
6968949300
€ 1.50
7
5967127C00
ref: 7
HOLDER
5967127C00
€ 9.50
8
5967527C00
ref: 8
BOLT
5967527C00
€ 2.50
9
5974836E00
ref: 9
SEPARATOR
5974836E00
€ 5.00
10
6974436E00
ref: 10
RING
6974436E00
€ 2.00
11
0936010042
ref: 11
09360-10062
BOLT UNION
0936010042
€ 5.00
12
0916110009
ref: 12
WASHER(10X15X1.5)
0916110009
€ 2.00
13
5948029F00
ref: 13
59480-29F01
HOSE COMP,FRONT BRAKE
5948029F00
€ 306.50
14
5924303B01
ref: 14
CLAMP,FR BRAKE
5924303B01
€ 3.50
15
0214206253
ref: 15
02142-0625A
SCREW
0214206253
€ 1.50
