AIR CLEANER

DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S

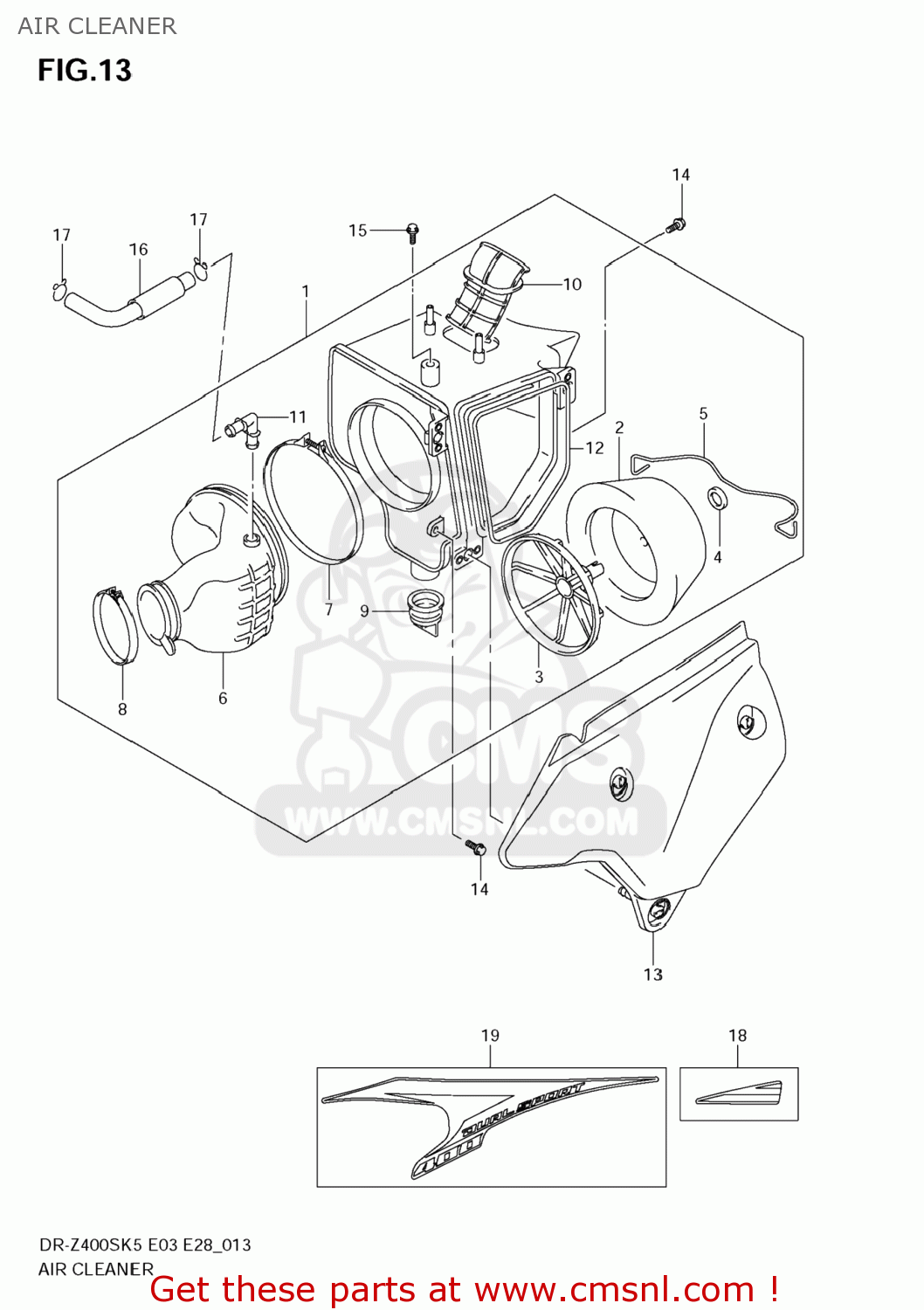

Air cleaner diagram DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S

AIR CLEANER DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S
AIR CLEANER DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S
AIR CLEANER DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1
1370129FB1
ref: 1
CLEANER,AIR
€ 326.50
2
1378044E00
ref: 2
FILTER ASSY
1378044E00
€ 50.00
3
1379144E00
ref: 3
HOLDER,FILTER
1379144E00
€ 12.00
4
1379644E00
ref: 4
SPACER
1379644E00
€ 3.00
5
1394129F00
ref: 5
SPRING
1394129F00
€ 26.00
6
1388129FB0
ref: 6
TUBE,OUTLET
€ 56.50
7
1382629F00
ref: 7
CLAMP
1382629F00
€ 6.50
8
0940264203
ref: 8
CLAMP
0940264203
€ 6.00
9
1387229F00
ref: 9
VALVE
1387229F00
€ 8.00
10
1389129FA0
ref: 10
TUBE,INLET
1389129FA0
€ 25.00
11
1385814D20
ref: 11
JOINT
1385814D20
€ 6.00
12
1374629F00
ref: 12
GASKET,AIR CLEANER (NAS)
1374629F00
€ 4.50
13-1
1374029FA130H
ref: 13-1
CAP,AIR CLEANER
€ 150.50
13-2
1374029FB030H
ref: 13-2
CAP,AIR CLEANER
€ 134.00
13-3
1374029FB0019
ref: 13-3
CAP,AIR CLEANER
1374029FB0019
€ 117.50
14
015470616B
ref: 14
BOLT
015470616B
€ 2.50
15
0911106054
ref: 15
BOLT(6X14.6)
0911106054
€ 1.50
16
1385029FA1
ref: 16
TUBE,BREATHER
€ 9.50
17
0940114101
ref: 17
CLIP
0940114101
€ 2.00
18-1
6814529F80EVG
ref: 18-1
TAPE,AIR CLNR CAP
€ 14.00
18-1
6814529F80EVG
ref: 18-1
TAPE,AIR CLNR CAP
€ 14.00
18-2
6814529F80EVL
ref: 18-2
TAPE,AIR CLNR CAP
€ 14.00
18-2
6814529F80EVL
ref: 18-2
TAPE,AIR CLNR CAP
€ 14.00
19-1
6814529FD0GFL
ref: 19-1
TAPE,AIR CLNR CAP
€ 20.50
19-1
6814529FD0GFL
ref: 19-1
TAPE,AIR CLNR CAP
€ 20.50
19-2
6814529FD0GFM
ref: 19-2
TAPE,AIR CLNR CAP
€ 20.50
19-2
6814529FD0GFM
ref: 19-2
TAPE,AIR CLNR CAP
€ 20.50
