HANDLE SWITCH

DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S

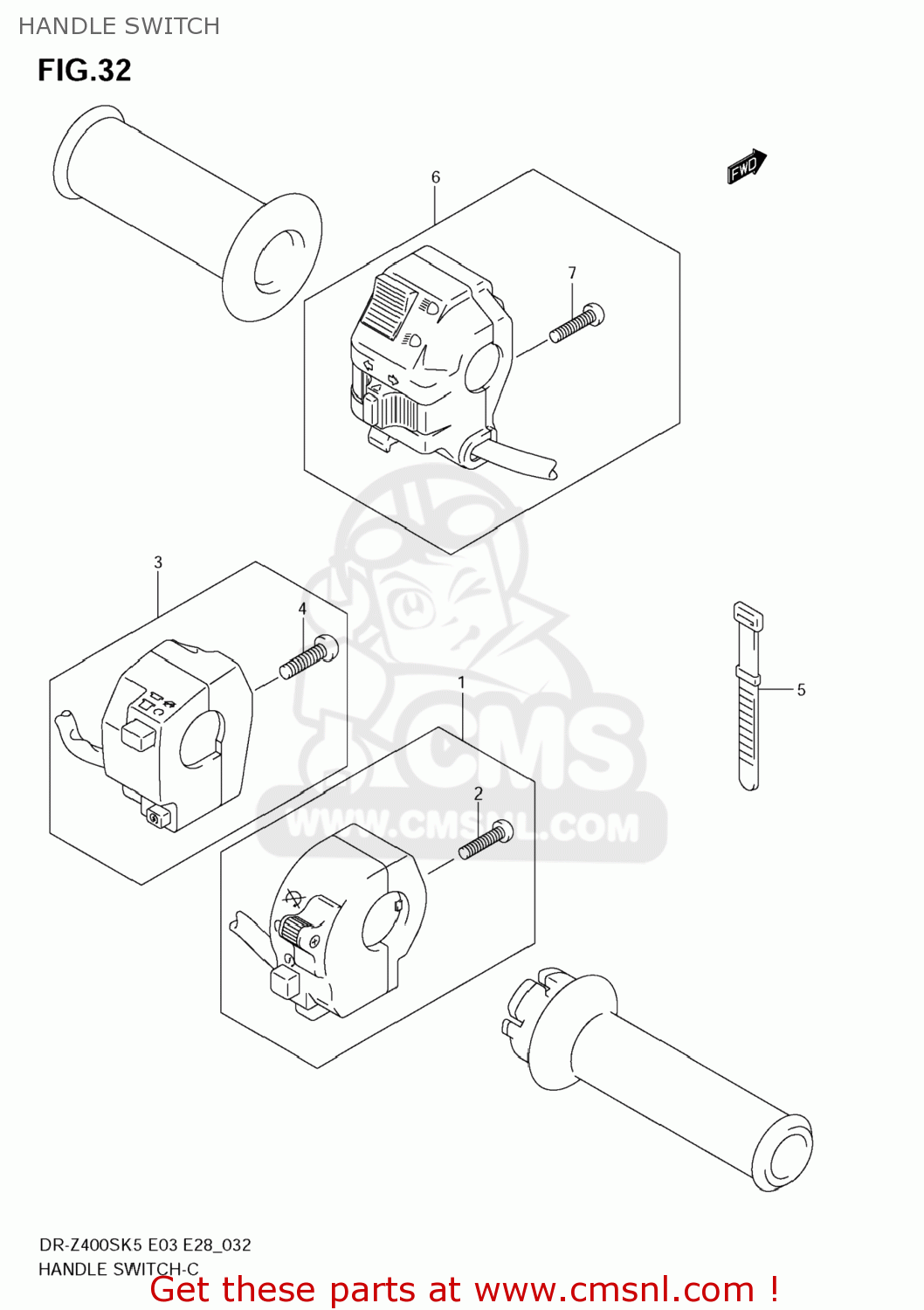

Handle switch diagram DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

3720013E30
ref: 1

SWITCH ASSY,HANDLE,R

€ 83.00

0211204203
ref: 2
02112-0420A

SCREW

€ 1.00

3-1

3720029F00
ref: 3-1

SWITCH ASSY,HANDLE,R

€ 123.50

3-2

3720029F30
ref: 3-2

SWITCH ASSY,HANDLE,R

€ 75.50

021120525B
ref: 4

SCREW

€ 1.50

0940712402
ref: 5

CLAMP(L:120)

€ 3.00

6-1

3740015D20
ref: 6-1

SWITCH ASSY,HANDLE,L

€ 109.50

6-2

3740029F40
ref: 6-2

SWITCH ASSY,HANDLE,L

€ 94.50

021120530B
ref: 7

SCREW

€ 1.50
