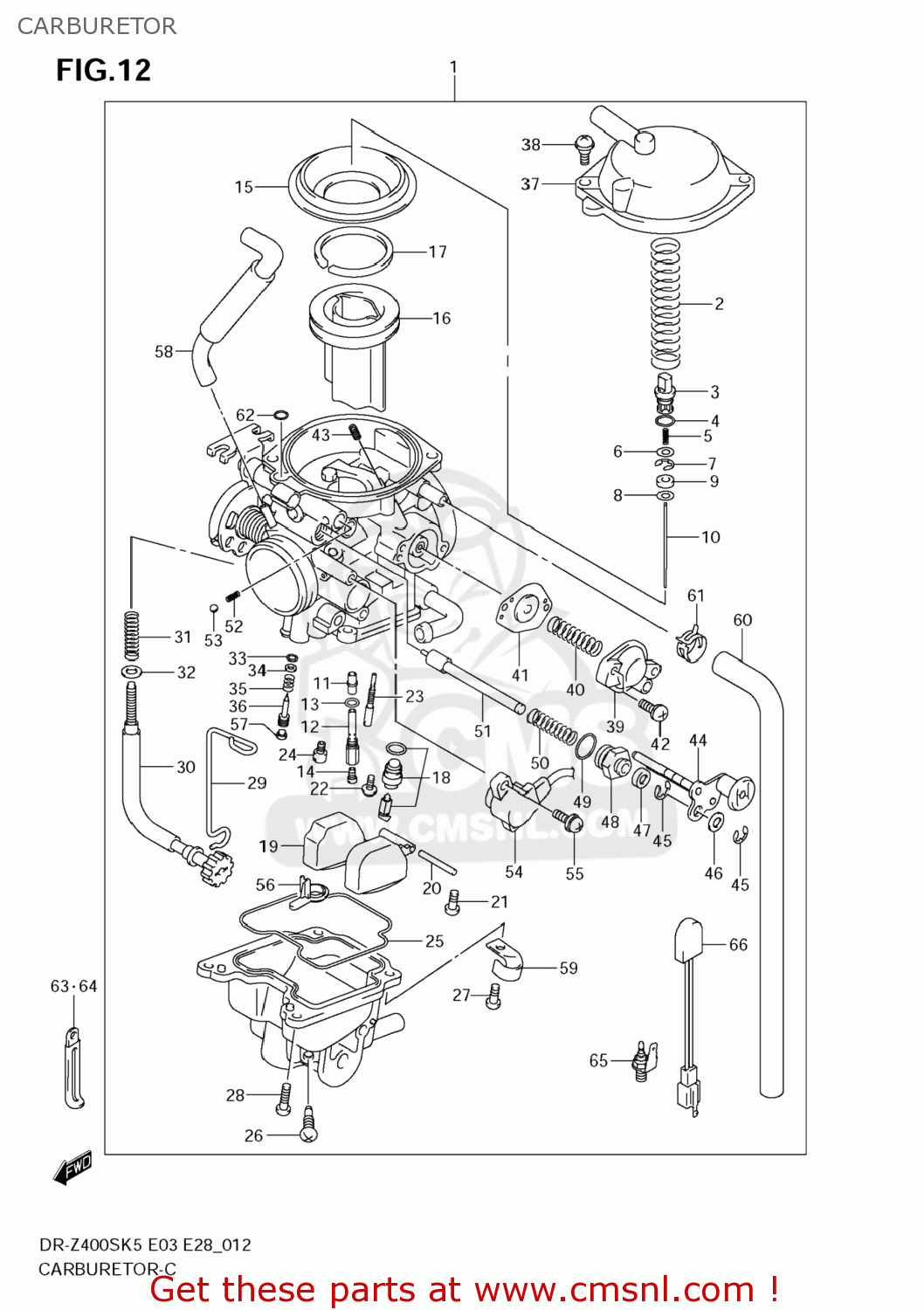

CARBURETOR

ref

part #

description

quantity

1-1

1320029FB2
ref: 1-1
13200-29FB4

CARBURETOR ASSY

€ 281.50

1-2

1320029FB3
ref: 1-2
13200-29FB4

CARBURETOR ASSY

€ 281.50

1-3

1320029FB4
ref: 1-3

CARBURETOR ASSY

€ 281.50

1-4

1320029FC1
ref: 1-4
13200-29FC3

CARBURETOR ASSY

€ 281.50

1-5

1320029FC3
ref: 1-5

CARBURETOR ASSY

€ 281.50

2

1357307F00
ref: 2

SPRING

€ 9.00

3

1341833E00
ref: 3

HOLDER

€ 4.50

4

0928005004
ref: 4

O RING(D:1.9,ID:4.8)

€ 2.00

5

1348104F00
ref: 5

SPRING

€ 2.50

6

1338219E00
ref: 6

WASHER

€ 3.00

7

1339417E60
ref: 7

E RING,MULTIPLE JET NOZZLE

€ 1.50

8

1338713F00
ref: 8

RING

€ 6.00

9

1329129FA0
ref: 9

WASHER

€ 2.50

10

1338329FB0
ref: 10

NEEDLE,JET

€ 14.50

11

0949400939
ref: 11

JET

€ 26.00

12

1338529FA0
ref: 12

HOLDER,JET

€ 22.00

13

1324643010
ref: 13

O RING

€ 4.00

14

0949128012
ref: 14

JET,MAIN(142.5)

€ 10.50

15

1350717C01
ref: 15

DIAPHRAGM

€ 24.50

16

1350129FA0
ref: 16

VALVE,PISTON

€ 57.50

17

1350414E00
ref: 17

RING

€ 4.00

18

1337029FA0
ref: 18

VALVE ASSY,NEEDLE

€ 49.00

19

1325004F00
ref: 19

FLOAT ASSY

€ 27.50

20

1325401010
ref: 20

PIN,FLOAT

€ 3.00

21

0211204083
ref: 21
02112-0408A

SCREW

€ 2.00

22

1360205A10
ref: 22

SCREW

€ 4.00

23

0949222014
ref: 23

JET,PILOT(22.5)

€ 11.50

24

0949162006
ref: 24

JET,MAIN(62.5)

€ 6.00

25

1325804F00
ref: 25

GASKET (NAS)

€ 9.00

26-1

1324702340
ref: 26-1

PLUG,DRAIN

€ 5.50

26-2

1324713A00
ref: 26-2
13247-02340

SCREW,DRAIN

€ 5.50

27

0211204107
ref: 27

SCREW

€ 2.00

28

0211204123
ref: 28
02112-0412A

SCREW

€ 1.50

29

1367129FA0
ref: 29

CLIP

€ 12.00

30

1326729FA0
ref: 30

SCREW,ADJUST

€ 40.00

31

1326837420
ref: 31

SPRING,THROTTLE SCREW

€ 3.50

32

1361543010
ref: 32

WASHER,STARTER SHAFT

€ 2.50

33

1329529900
ref: 33

O RING,PILOT AIR SCREW

€ 4.00

34

1329129900
ref: 34

WASHER

€ 2.00

35

1326848700
ref: 35

SPRING,THROTTLE SCREW

€ 3.50

36

1327933E00
ref: 36

ADJUSTER

€ 9.50

37

1350229FA0
ref: 37

COVER ASSY,DIAPHRAGM

€ 31.50

38

1324733E00
ref: 38

SCREW

€ 3.00

39-1

1350210F00
ref: 39-1

COVER ASSY

€ 26.00

39-2

1350208F00
ref: 39-2

COVER,DIAPHRAGM

€ 32.00

40-1

1327110F00
ref: 40-1

SPRING

€ 4.50

40-2

1348141F20
ref: 40-2

SPRING

€ 4.50

41

1348010F00
ref: 41

DIAPHRAGM ASSY

€ 15.50

42

1360104148
ref: 42

SCREW

€ 2.50

43

0949227010
ref: 43

JET,POWER(135)

€ 12.50

44

1342029FA0
ref: 44

PLATE ASSY

€ 42.50

45

1341538300
ref: 45

E RING

€ 2.00

46

1342738300
ref: 46

WASHER

€ 1.50

47

1368231210
ref: 47

CAP,STARTER VALVE

€ 5.00

48

1341844080
ref: 48

GUIDE SCREW,PLUNGER

€ 8.00

49

1327847090
ref: 49

O RING

€ 2.00

50

1341743010
ref: 50

SPRING

€ 3.50

51

1341129FA0
ref: 51

PLUNGER ASSY

€ 20.00

52

1343443010
ref: 52

SPRING

€ 6.50

53

1359693010
ref: 53

BALL,CARBURETOR

€ 3.50

54

1358021F00
ref: 54

SENSOR ASSY

€ 86.50

55

1360219B50
ref: 55

SCREW

€ 3.00

56

1338729FA1
ref: 56

RING

€ 9.00

57

1328105A00
ref: 57

PLUG

€ 3.50

58

1368329FB0
ref: 58

HOSE

€ 0.00

59

1367114D00
ref: 59

PLATE

€ 3.00

60

1368429FB0
ref: 60

HOSE,AIR VENT(6.5X10.5)

€ 22.00

61

1367119F00
ref: 61

CLIP

€ 3.50

62

1329533010
ref: 62

O RING

€ 4.50

63

0940406429
ref: 63

CLAMP(L:45)

€ 2.50

64

0940408420
ref: 64

CLAMP(L:120 T:1.0)

€ 3.50

65

1365025E01
ref: 65

HEATER ASSY,CARBURETOR(15W)

€ 35.00

66

1365516F00
ref: 66

THERMO SWITCH,CARB HEATER

€ 41.00
