OIL HOSE

DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S

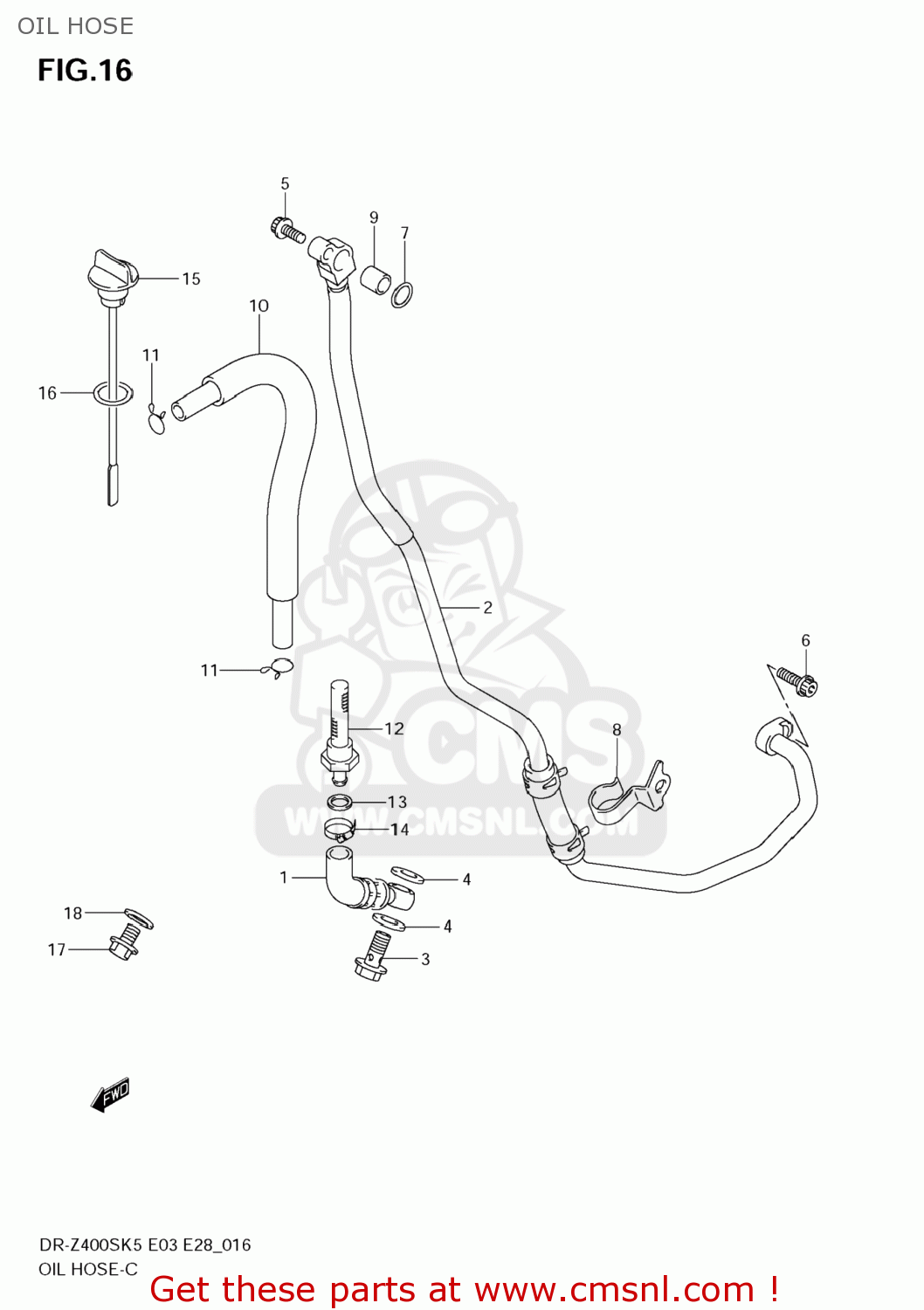

Oil hose diagram DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1646029F10
ref: 1

HOSE,OIL TANK,R

€ 48.50

1647029F20
ref: 2

HOSE,OIL TANK,L

€ 100.50

0936014012
ref: 3

BOLT UNION

€ 10.00

0916814015
ref: 4

GASKET(14X20X1.5) (NAS)

€ 1.50

071200616B
ref: 5

BOLT

€ 2.50

071200620B
ref: 6

BOLT

€ 3.50

0928011005
ref: 7

O RING(D:2.4,ID:11)

€ 4.50

1649129F11
ref: 8

CLAMP,OIL TANK HOSE

€ 4.00

0421111129
ref: 9

PIN

€ 2.00

1648029F00
ref: 10

HOSE,OIL TANK OVER FLOW

€ 14.50

0940112403
ref: 11

CLIP

€ 2.00

1655029F00
ref: 12

STRAINER,FRAME HEAD UNDER

€ 48.00

0916818007
ref: 13

GASKET(18X22X2) (NAS)

€ 2.50

0940222512
ref: 14

CLAMP

€ 6.00

1656129F10
ref: 15

GAUGE,OIL LEVEL

€ 9.00

0928017003
ref: 16

O RING(D:3.1,ID:16.8)

€ 2.00

0924710008
ref: 17

PLUG(10X12)

€ 3.00

0916810002
ref: 18

GASKET(10X14X3.6) (NAS)

€ 2.00
