CRANK BALANCER

DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S

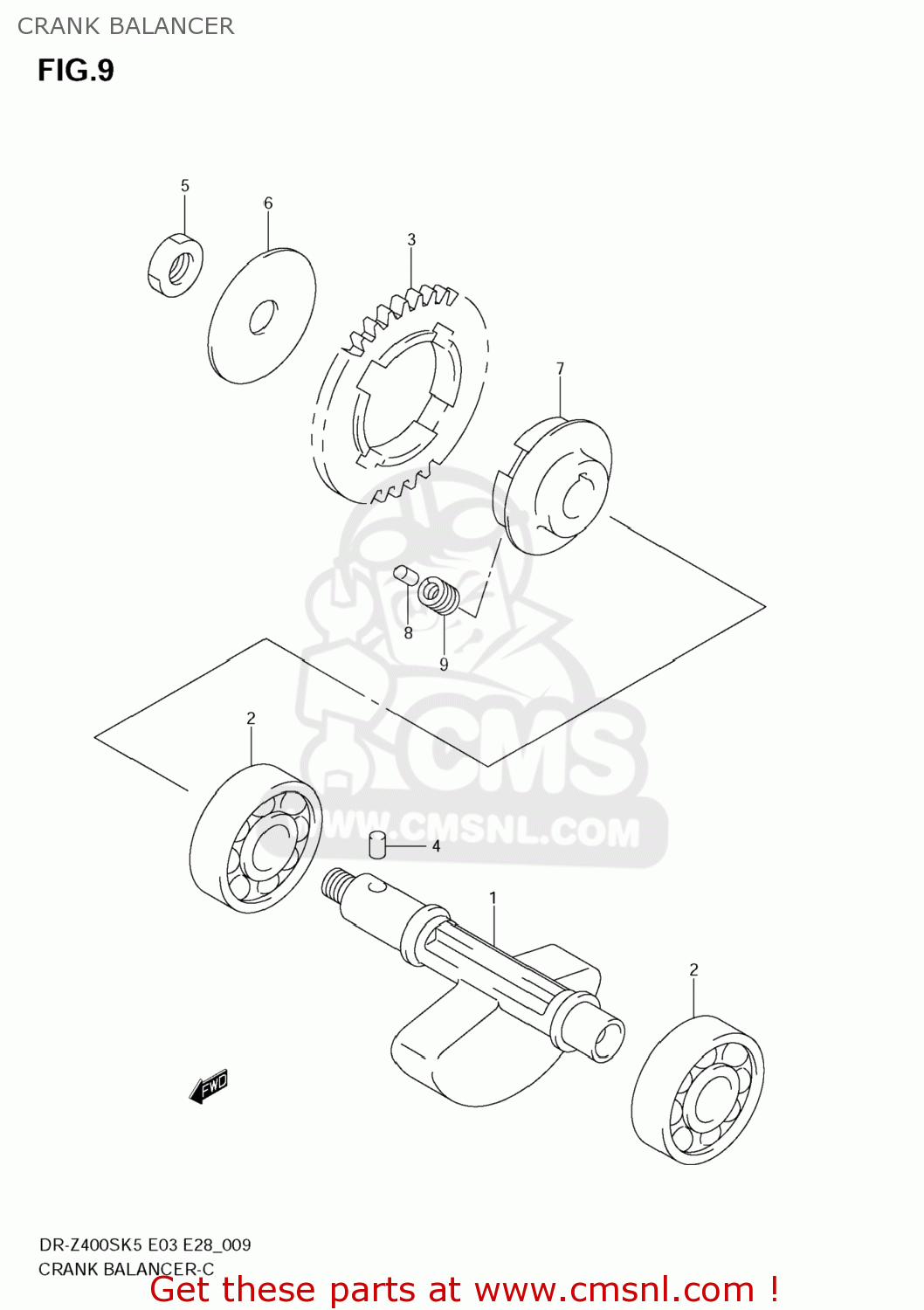

Crank balancer diagram DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S

CRANK BALANCER DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S

CRANK BALANCER DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

1265129F00
ref: 1

BALANCER,CRANK

€ 89.50

2

0926215030
ref: 2

BEARING(15X42X13)

€ 24.50

3

1266629F11
ref: 3

GEAR,CRANK BALANCER DRIVEN

€ 82.50

4

0926105005
ref: 4

PIN(5X8)

€ 1.50

5

0914012039
ref: 5

NUT

€ 3.00

6

0918112009
ref: 6

SHIM(12.2X47X1.6)

€ 4.50

7

1266929F01
ref: 7

RACE,CRK BAL DRIVEN

€ 46.50

8

0920204017
ref: 8

PIN(4.5X9.5)

€ 3.00

9

0944009031
ref: 9

SPRING

€ 3.00
