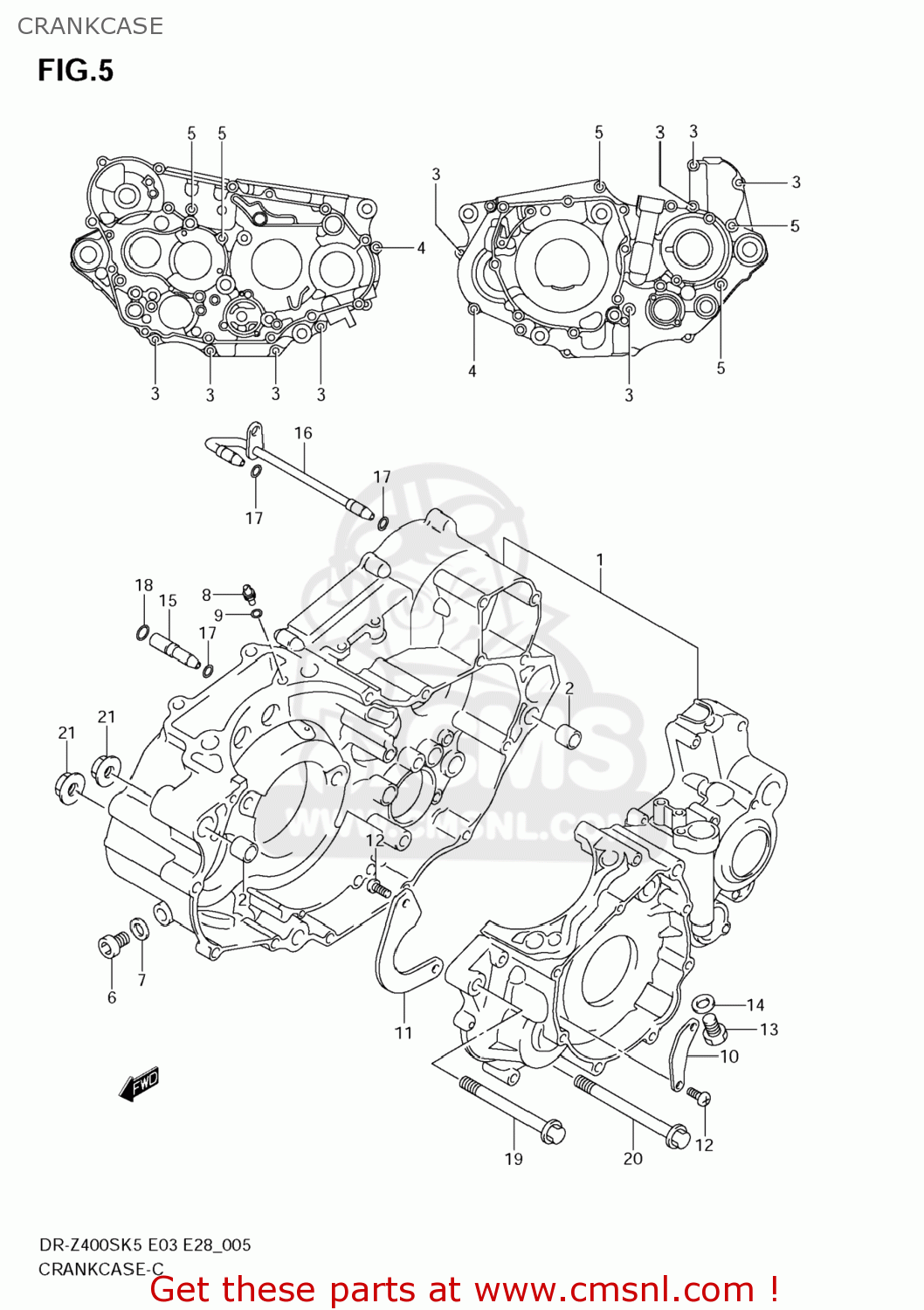

CRANKCASE

ref

part #

description

quantity

1-1

1130129851
ref: 1-1
11301-29853

CRANKCASE SET

€ 835.00

1-2

1130129852
ref: 1-2
11301-29853

CRANKCASE SET

€ 835.00

1-3

1130129853
ref: 1-3

CRANKCASE SET

€ 835.00

2

0421113189
ref: 2

PIN

€ 2.50

3-1

015470640B
ref: 3-1

BOLT

€ 3.00

3-2

015470640A
ref: 3-2

BOLT

€ 2.50

4-1

015470655B
ref: 4-1

BOLT

€ 3.00

4-2

015470655A
ref: 4-2

BOLT

€ 2.50

5-1

015470670B
ref: 5-1

BOLT

€ 3.00

5-2

015470670A
ref: 5-2

BOLT

€ 2.50

6

0924810010
ref: 6

PLUG(10X10)

€ 4.00

7

0916810002
ref: 7

GASKET(10X14X3.6) (NAS)

€ 2.00

8

0949380005
ref: 8

JET(8)

€ 12.00

9

0928004004
ref: 9

O RING(D:1.2,ID:4)

€ 2.00

10

1132329F00
ref: 10

SEPARATOR,CRANKCASE OIL NO.1

€ 2.00

11

1132429F00
ref: 11

SEPARATOR,CRANKCASE OIL NO.2

€ 3.50

12

0912506110
ref: 12

BOLT(6X12)

€ 2.50

13

0924712011
ref: 13

PLUG(12X20)

€ 4.50

14

0916812002
ref: 14

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

15

1145129F00
ref: 15

PIPE,OIL INNER NO.1

€ 14.50

16

1146029F00
ref: 16

PIPE,T/M OIL INNER NO.2

€ 51.00

17

0928005004
ref: 17

O RING(D:1.9,ID:4.8)

€ 2.00

18

0928007004
ref: 18

O RING(D:1.9,ID:6.8)

€ 1.50

19

0910310110
ref: 19

BOLT(10X100)

€ 6.50

20

0910310063
ref: 20

BOLT(10X115)

€ 5.00

21-1

0915910058
ref: 21-1
09159-10115

NUT

€ 4.00

21-2

0915910115
ref: 21-2

NUT

€ 4.00

all assemblies
