FUEL COCK

DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S

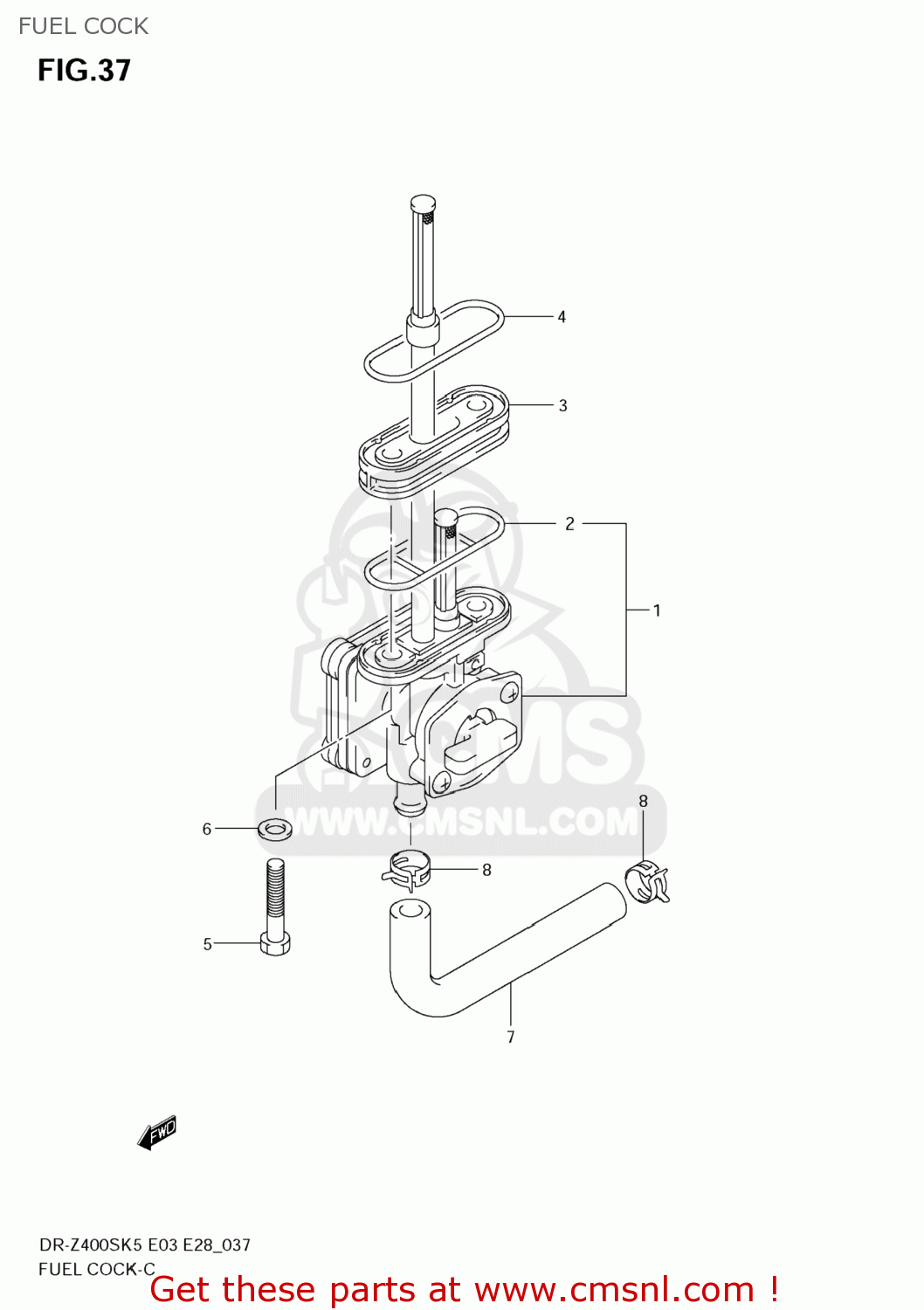

Fuel cock diagram DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S

FUEL COCK DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S

FUEL COCK DR-Z400S 2006 (K6) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

4430029F20
ref: 1

COCK ASSY,FUEL

€ 103.00

2

4434887420
ref: 2

GASKET,JOINT (NAS)

€ 5.00

3

4436529F00
ref: 3

SPACER,FUEL COCK

€ 24.00

4

4436614A00
ref: 4

GASKET,FUEL COCK (NAS)

€ 2.50

5

0912806010
ref: 5

SCREW(6X30)

€ 1.50

6

0916806026
ref: 6

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

7

4442129F50
ref: 7

HOSE,FUEL

€ 12.50

8

0940111415
ref: 8

CLIP

€ 2.50
